偶極電磁鐵

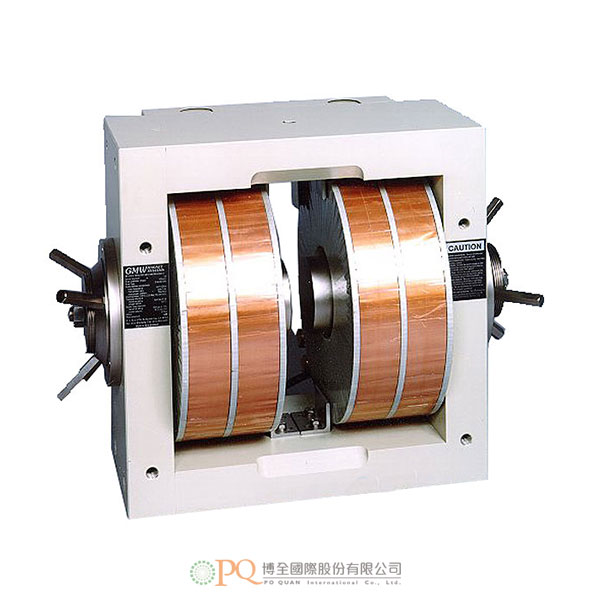

GMW Dipole Electromagnet 型號：3473- 提供50A或70A機型。
- 極間隙可調整。
- 提供多種極頭。
- 氣冷或水冷式。
- 應用包括霍爾效應研究、磁光學研究、實驗室實驗、磁性分離實驗、小型元件的磁性調準、化學反應速率變化研究。
-
- GMW機型3473偶極電磁鐵適用極面直徑最大達100mm的一系列極頭。
- 機型3472-50：裝有一對50A線圈，線圈間隙115mm。
- 機型3472-70：裝有一對加強冷卻的70A線圈，線圈間隙82mm – 建議應用於在大的極間隙需要產生高場或要達到最大的場穩定性以滿足光譜或類似應用時。
- 其它特點：
- 中等體積。
- 提供50A或70A機型。
- 極間隙可調整。
- 提供多種極頭。
- 氣冷或水冷式。
- 提供多種安裝選購。
- 應用：
- 霍爾效應研究。
- 磁光學研究。
- 實驗室實驗。
- 磁性分離實驗。
- 小型元件的磁性調準。
- 化學反應速率變化研究。
-
總體規格
機型
3472-50
3472-70
極面直徑
100mm
標準極頭
25、50、75、100mm
極間隙
0～115mm
0～82mm
線圈之間的間隙
116mm
82mm
體積
寬377mm x 深233mm x 高217mm
重量
325kg
335kg
串聯連接的線圈
電阻(20°C)
0.59Ω
最大的電阻
0.71Ω
最大的功率(氣冷)
20A，14V(0.3kW)
最大的功率(水冷)
50A，36V(1.8kW)
70A，50V(3.5kW)
自電感
約60mH
水冷
3公升/分鐘，0.8 bar
6公升/分鐘，2.0 bar
聯鎖保護
過溫
Elmwood 3450G自動調溫器，安裝在每個冷卻板上，串聯連接， 溫度低於50°C時，接點閉合
水流
Imo/Gems FS927流量開關安裝在循環水路的出口側上。
當流量小於以下所列LPM時，接點開啟。最大的絕對壓力
10bar (150psi)
每分鐘2.5公升
每分鐘4.0公升
- 詳細規格、配件、軟體及選購，歡迎洽詢。
-
- The 3473 Dipole Electromagnet accepts a range of pole caps with face diameters up to 150mm. The model 3473-50 is fitted with a 50Amp coil pair, and has a coil gap of 127mm. The model 3473-70 is fitted with a 70Amp coil pair with enhanced cooling, and has a coil gap of 96mm. The 3473-70 is recommended when high fields are required at large pole gaps or to achieve maximum field stability for spectroscopic or similar applications.
- Features:
- Modest Size
- 50 or 70 Amp Versions
- Adjustable Pole Gap
- Wide Variety of Pole Caps
- Air or Water Cooled
- Many Mounting Options
- Applications:
- Hall Effect Studies
- Magneto-Optical Studies
- Laboratory Experiments
- Magnetic Separation experiments
- Magnetic alignment of small components
- Studying chemical reaction rate changes
-
General
3472-50
3472-70
Pole Diameter
100mm
Standard Pole Caps
25, 50, 75, & 100mm
Pole Gap
0 to 115mm (0 to 4.5")
0 to 82mm (0 to 3.2 ")
Intercoil Gap
116mm (4.5")
82mm (3.2")
Dimensions
377mm W x 233mm D x 217mm H
Weight
325kg (715lbs)
335kg (737lbs)
Coils (series connected)
Resistance (20°C)
0.59 Ω
Max Resistance
0.71 Ω
Max Power (air)
20 Amps, 14 Volts (0.3kW)
Max Power (water)
50 Amps, 36 Volts (1.8kW)
70 Amps, 50 Volts (3.5kW)
Self Inductance
Approx 60mH
Water Cooling
3 liters/min, 0.8 bar
(0.8 US GPM, 12psid)6 liters/min, 2.0 bar
(1.6 US GPM, 30 psid)Interlocks
Overtemperature
Elmwood 3450G thermostat, mounted onto each cooling
plate, wired in series. Contacts closed below 50°CWater Flow
Imo/Gems FS927 flow switch mounted on outlet side of
water circuit. Contacts open with a flow of less than:Maximum Absolute Pressure:
10bar (150psi)
2.5 liters per minute
4.0 liters per minute
- Please feel free to contact for detailed specifications, accessories, software and options.
