變壓器安全系統

電氣絕緣油的淨化和再生是旨在提高電力變壓器的可靠性和延長其壽命的措施中的一個重要組成部分。
在處理過程可能涉及各種緊急情況（漏油、軟管中的空氣等），浪費了寶貴的時間，在某些情況下還會產生計劃外的費用。
因此，為了提高絕緣油處理過程的安全性，GlobeCore建議通過TSS來連結油的再生系統。這個系統可以被電力行業以及須注油設備維修設施時所使用。

一個標準的TSS系統由以下部分組成：

• 一進一出的兩個閥門。
• 油位傳感器。
• 電源電纜。
• 控制系統機櫃。

TSS（變壓器安全系統）用於連接以下類型的設備到變壓器：

• 絕緣油過濾裝置。
• 絕緣油脫氣裝置。
• 絕緣油乾燥裝置。

油淨化裝置通過上下兩個接口閥門與變壓器相連。每個接口都配置有一個自動閥門，在需要時，例如檢測到漏油時，可以停止運作。
操作者可以設定變壓器油箱中的正常上、下油位。一定油位沒有達到正常要求，感測器一旦偵測到異常即會命令油處理裝置停止運轉，並關閉其與變壓器的連接。
軟管中可能存在的空氣會觸動空氣洩壓閥，消除氣體繼電器的錯誤跳閘。

優勢

• 獨立性。該系統可用於任何設備，由GlobeCore或任何其他製造商製造。
• 多功能性。該系統適用於石油淨化、過濾和再生工廠。
• 容易連結。一個有基本技能的操作者可以在短短五分鐘內建立所有必要的連接。
• 該裝置使得油淨化系統能夠在通電的變壓器上執行。

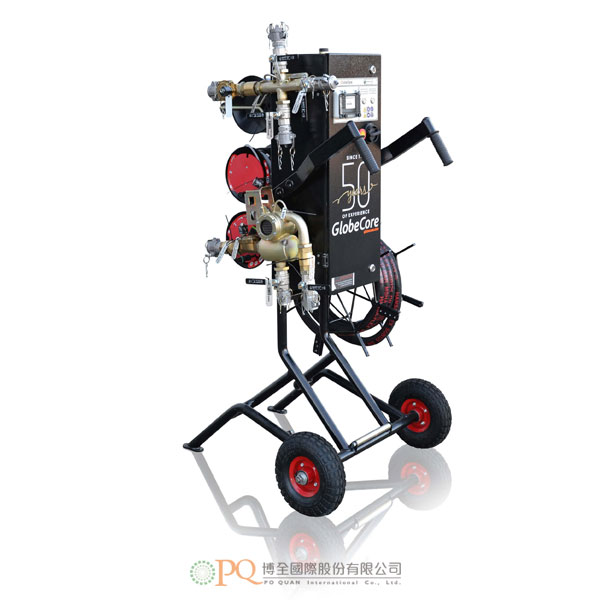

• TSS控制主單元既可以安裝在石油加工設備上（臨時或永久），也可以安裝在一個單獨的推車上。
• 可選購的GSM模組可以通過行動電話進行遠端的控制。

Purification and regeneration of electrical insulating oils is an important integral part of the measures aimed at improving reliability and extending life of power transformers.

Oil processing may involve a variety of emergencies (oil leaks, air in hoses, etc.), wasting precious time, and in some cases incurring unplanned costs.

Therefore, to enhance the safety of oil processing, GlobeCore suggests connecting oil processing systems through the TSS. This system can be used by the power industry, as well as oil-filled equipment servicing facilities.

A standard TSS system is composed of:

• Two valves;
• Oil level sensor;
• Set of cables;
• Control cabinet.

The TSS (Transformer Safety System) is used to connect  the following types of equipment to transformer:

• oil filtering equipment;
• oil degassing systems;
• oil drying units.

The oil purification plant is connected to a transformer via upper and lower ports. Each port is equipped with an automatic valve, which stops the unit when required, e.g. when an oil leak is detected.

The operator can set the normal upper and lower oil levels in the transformer tank. If the oil does not reach normal levels, a sensor commands the oil processing unit to stop and closes its connection to the transformer.

Possible air in the hoses trigger the air relief valve, eliminating false trips of the gas relay.

ADVANTAGES

• Independence. This system can be used with any equipment, made by GlobeCore or by any other manufacturer;
• Versatility. The system is suited for oil purification, filtration and regeneration plants;
• Easy connection. An operator with basic skills can establish all necessary connections in just five minutes;
• Enables operation of oil purification equipment with energized transformers;
• TSS control panel can be attached either to the oil processing equipment (temporarily or permanently) or mounted on a separate support;
• Optional GSM-module enables remote control by mobile phone.
