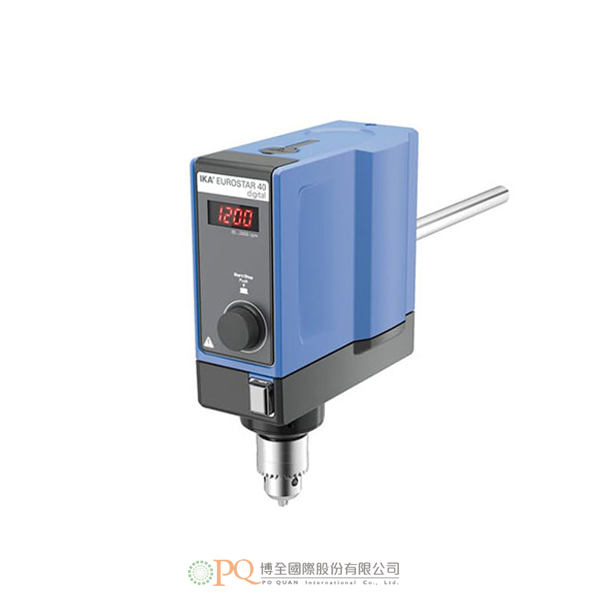

IKA Eurostar 40 Digital

與所有IKA產品一樣，安全是關鍵，該頂置攪拌器具備安全電路可確保在防失速失效或超載情况下自動切斷。 保持軸速度與所需速度的連續比較，並自動調整變化。 這保證了即使樣品粘度發生變化，也能保持恒定的速度。主要特點包括：
主要功能包括：
數位速度顯示
無級調速
推進式攪拌器軸
超載保護
短期超載運轉
超薄機殼
無噪音運轉
錯誤代碼顯示
該型號有許多配件，包括各種攪拌器和支架， 因此請詢問是否有任何您感興趣的配件。

Stirring quantity max. per stirring position (H2O)	25 l
Motor rating input	118 W
Motor rating output	84 W
Motor principle	Brushless DC
Speed display	7 segment LED
Speed range	0/30 – 2000 rpm
Reversible direction of rotation	no
Intermittent operation	no
Viscosity max.	30000 mPas
Output max. at stirring shaft	84 W
Permissible ON time	100 %
Torque max. at stirring shaft	40 Ncm
Speed control	stepless
Setting accuracy speed	1 ±rpm
Deviation of speed measurement n > 300rpm	1 ±%
Deviation of speed measurement n < 300rpm	3 ±rpm
Stirring element fastening	chuck
Temperature display	no
Chuck range min. diameter	0.5 mm
Chuck range max. diameter	10 mm
Hollow shaft, inner diameter	11 mm
Hollow shaft (push-through – when stopped)	yes
Fastening on stand	extension arm
Extension arm diameter	16 mm
Extension arm length	220 mm
Torque display	no
Nominal torque	0.4 Nm
Timer	no
housing material	alu-cast coating / thermoplastic polymer
clean room qualified	no
explosion proofed	no
Dimensions (W x H x D)	86 x 248 x 208 mm
Weight	4.4 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 42
USB interface	no
RS 232 interface	no
Analog output	no
Voltage	230 / 115 / 100 V
Frequency	50/60 Hz
Power input	118 W

As with all IKA products, safety is key and integral safety circuits in this overhead stirrer ensures automatic cut-off in an anti-stall or overload situation.   Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.

Key features include:

Digital speed display
Infinitely adjustable speed
Push-through agitator shafts
Overload protection
Short-term overload operation
Slim casing
Quiet operation
Error code display

There are many accessories available for this model including various stirrers and supports so please ask if any of these may be of interest.

Stirring quantity max. per stirring position (H2O)	25 l
Motor rating input	118 W
Motor rating output	84 W
Motor principle	Brushless DC
Speed display	7 segment LED
Speed range	0/30 – 2000 rpm
Reversible direction of rotation	no
Intermittent operation	no
Viscosity max.	30000 mPas
Output max. at stirring shaft	84 W
Permissible ON time	100 %
Torque max. at stirring shaft	40 Ncm
Speed control	stepless
Setting accuracy speed	1 ±rpm
Deviation of speed measurement n > 300rpm	1 ±%
Deviation of speed measurement n < 300rpm	3 ±rpm
Stirring element fastening	chuck
Temperature display	no
Chuck range min. diameter	0.5 mm
Chuck range max. diameter	10 mm
Hollow shaft, inner diameter	11 mm
Hollow shaft (push-through – when stopped)	yes
Fastening on stand	extension arm
Extension arm diameter	16 mm
Extension arm length	220 mm
Torque display	no
Nominal torque	0.4 Nm
Timer	no
housing material	alu-cast coating / thermoplastic polymer
clean room qualified	no
explosion proofed	no
Dimensions (W x H x D)	86 x 248 x 208 mm
Weight	4.4 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 42
USB interface	no
RS 232 interface	no
Analog output	no
Voltage	230 / 115 / 100 V
Frequency	50/60 Hz
Power input	118 W
