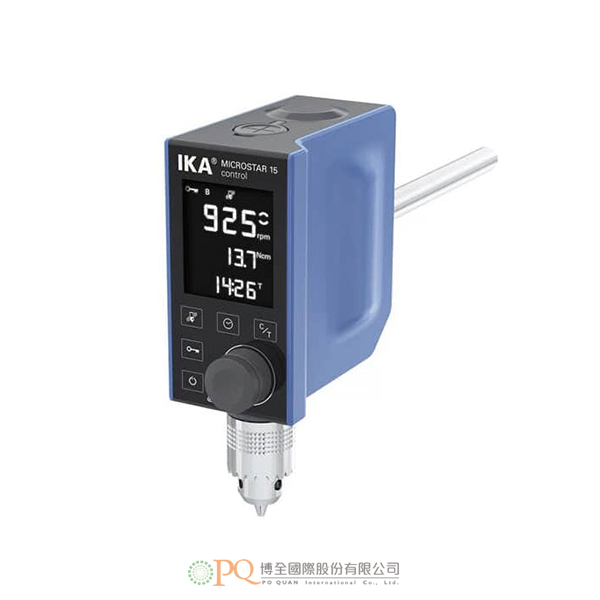

IKA MICROSTAR 15 Control Overhead Stirrer

IKA MICROSTAR 15 控制頂置攪拌器採用最新的尖端技術開發，設計緊密，是高科技的、特殊應用的理想選擇。
將高性能與卓越品質相結合，它們只需要最小的空間並提供終身保固

加入洽詢

產品特點產品規格 Features Specifications

主要功能包括：
- 封閉式強化玻璃的快速回應顯示幕，實現最大能見度和耐化學性
- 最先進的振動感測器檢測與允許閾值的偏差，並自動停止該過程
- 所有重要資訊一目了然
- 內建計時器/計數器，用於控制動力學敏感反應和提醒
- 粘度高達8000 mPas，體積高達10 L
- 速度在0/30–1000 rpm之間連續可調
- USB介面，例如用於使用labworldsoft®記錄參數或安裝硬體更新
- 操作直觀、簡單；觸摸式表面，使用壽命長
- 顯示幕上的溫度讀值
- 耐化學品外殼
- 按鍵鎖定功能
- 微處理器控制的調速器，用於恒定轉速，即使粘度發生變化

Stirring quantity max. per stirring position (H2O)	10 l
Motor rating input	32 W
Motor rating output	22 W
Motor principle	Brushless DC
Speed display	LCD
Speed min.	30 rpm
Speed min.	0/30 rpm
Speed max.	1000 rpm
Viscosity max.	8000 mPas
Output max. at stirring shaft	15.7 W
Permissible ON time	100 %
Torque max. at stirring shaft	15 Ncm
Speed control	Turning knob
Setting accuracy speed	1 ±rpm
Deviation of speed measurement n > 300rpm	1 ±%
Deviation of speed measurement n < 300rpm	3 ±rpm
Stirring element fastening	chuck
Connection for ext. temperature sensor	PT1000
Temperature display	yes
Chuck range diameter	0.5 – 8 mm
Hollow shaft, inner diameter	8.5 mm
Hollow shaft (push-through – when stopped)	yes
Fastening on stand	extension arm
Extension arm diameter	13 mm
Extension arm length	160 mm
Torque display	yes
Speed control	electronic
Nominal torque	0.15 Nm
Torque measurement	trend
Deviation of torque measurement I	3 ±Ncm
Timer	yes
Timer display	LCD
Time setting range	0 – 6000 min
Temperature measuring range	-10 – 350 °C
Temperature measurement resolution	0.1 K
Accuracy of temperature measurement	±0.5 + tolerance PT1000 (DIN IEC 751 Class A) K
Limit deviation temperature sensor	≤ ± (0.15 + 0.002xITI) K
Housing material	alu-cast coating / thermoplastic polymer
Communication distance (depend onbuilding) max.	150 m
Dimensions (W x H x D)	60 x 173 x 136 mm
Weight	1.26 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
USB interface	yes
Voltage	100 – 240 V
Frequency	50/60 Hz
Power input	32 W
DC Voltage	24 V=
Current consumption	1300 mA

Key features include:
- Hardened glass enclosed, fast response display for maximum visibility and chemical resistance
- State-of-art vibration sensors detect deviations from permissible thresholds and automatically stop the process
- Clear display for all essential information at a glance
- Integrated timer / counter for the control of kinetic sensitive reactions and reminders
- Viscosities up to 8,000 mPas and volume of up to 10 l
- Continuously adjustable speed between 0/30 – 1,000 rpm
- USB interface, e.g. for documenting parameters using labworldsoft® or installing firmware updates
- Intuitive and simple handling; touch-sensitive surface for long service life
- Temperature reading on display
- Chemical resistant housing
- Key lock function
- Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity

Stirring quantity max. per stirring position (H2O)	10 l
Motor rating input	32 W
Motor rating output	22 W
Motor principle	Brushless DC
Speed display	LCD
Speed min.	30 rpm
Speed min.	0/30 rpm
Speed max.	1000 rpm
Viscosity max.	8000 mPas
Output max. at stirring shaft	15.7 W
Permissible ON time	100 %
Torque max. at stirring shaft	15 Ncm
Speed control	Turning knob
Setting accuracy speed	1 ±rpm
Deviation of speed measurement n > 300rpm	1 ±%
Deviation of speed measurement n < 300rpm	3 ±rpm
Stirring element fastening	chuck
Connection for ext. temperature sensor	PT1000
Temperature display	yes
Chuck range diameter	0.5 – 8 mm
Hollow shaft, inner diameter	8.5 mm
Hollow shaft (push-through – when stopped)	yes
Fastening on stand	extension arm
Extension arm diameter	13 mm
Extension arm length	160 mm
Torque display	yes
Speed control	electronic
Nominal torque	0.15 Nm
Torque measurement	trend
Deviation of torque measurement I	3 ±Ncm
Timer	yes
Timer display	LCD
Time setting range	0 – 6000 min
Temperature measuring range	-10 – 350 °C
Temperature measurement resolution	0.1 K
Accuracy of temperature measurement	±0.5 + tolerance PT1000 (DIN IEC 751 Class A) K
Limit deviation temperature sensor	≤ ± (0.15 + 0.002xITI) K
Housing material	alu-cast coating / thermoplastic polymer
Communication distance (depend onbuilding) max.	150 m
Dimensions (W x H x D)	60 x 173 x 136 mm
Weight	1.26 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
USB interface	yes
Voltage	100 – 240 V
Frequency	50/60 Hz
Power input	32 W
DC Voltage	24 V=
Current consumption	1300 mA
