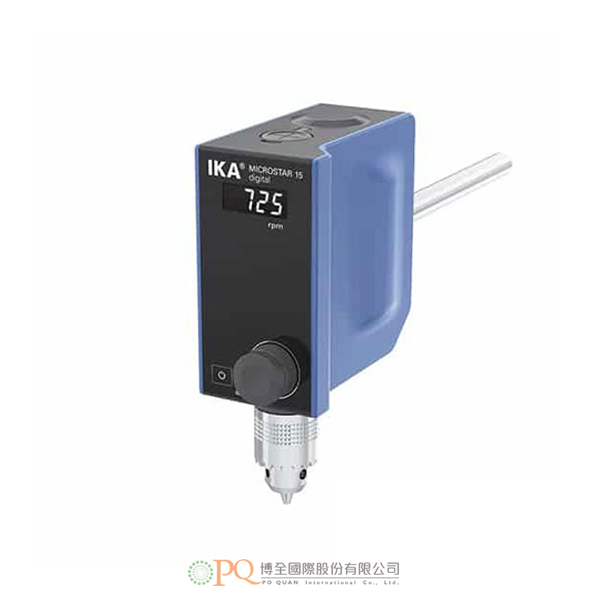

IKA MICROSTAR 15 Digital Overhead Stirrer

IKA MICROSTAR 15數位頂置攪拌器，重量輕、節省空間。配有LED速度顯示器，適用於最高10L（H2O），轉速為0/50-1000 rpm，攪拌軸最大扭矩為15 Ncm。

產品特點產品規格 Features Specifications

Stirring quantity max. per stirring position (H2O)	10 l
Motor rating input	32 W
Motor rating output	22 W
Motor principle	Brushless DC
Speed display	LED
Speed min.	50 rpm
Speed min.	0/50 rpm
Speed max.	1000 rpm
Viscosity max.	8000 mPas
Output max. at stirring shaft	15.7 W
Permissible ON time	100 %
Torque max. at stirring shaft	15 Ncm
Speed control	Turning knob
Setting accuracy speed	1 ±rpm
Deviation of speed measurement n > 300rpm	1 ±%
Deviation of speed measurement n < 300rpm	3 ±rpm
Stirring element fastening	chuck
Chuck range diameter	0.5 – 8 mm
Hollow shaft, inner diameter	8.5 mm
Hollow shaft (push-through – when stopped)	yes
Fastening on stand	extension arm
Extension arm diameter	13 mm
Extension arm length	160 mm
Nominal torque	0.15 Nm
Timer display	none
Housing material	alu-cast coating / thermoplastic polymer
Dimensions (W x H x D)	60 x 173 x 126 mm
Weight	1.26 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
USB interface	yes
Voltage	100 – 240 V
Frequency	50/60 Hz
Power input	32 W
Power input standby	0.3 W
DC Voltage	24 V=
Current consumption	1300 mA

Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. As for more details.

Stirring quantity max. per stirring position (H2O)	10 l
Motor rating input	32 W
Motor rating output	22 W
Motor principle	Brushless DC
Speed display	LED
Speed min.	50 rpm
Speed min.	0/50 rpm
Speed max.	1000 rpm
Viscosity max.	8000 mPas
Output max. at stirring shaft	15.7 W
Permissible ON time	100 %
Torque max. at stirring shaft	15 Ncm
Speed control	Turning knob
Setting accuracy speed	1 ±rpm
Deviation of speed measurement n > 300rpm	1 ±%
Deviation of speed measurement n < 300rpm	3 ±rpm
Stirring element fastening	chuck
Chuck range diameter	0.5 – 8 mm
Hollow shaft, inner diameter	8.5 mm
Hollow shaft (push-through – when stopped)	yes
Fastening on stand	extension arm
Extension arm diameter	13 mm
Extension arm length	160 mm
Nominal torque	0.15 Nm
Timer display	none
Housing material	alu-cast coating / thermoplastic polymer
Dimensions (W x H x D)	60 x 173 x 126 mm
Weight	1.26 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
USB interface	yes
Voltage	100 – 240 V
Frequency	50/60 Hz
Power input	32 W
Power input standby	0.3 W
DC Voltage	24 V=
Current consumption	1300 mA
