24Asynt-MINISTAR-20-Control-Overhead-Stirrer

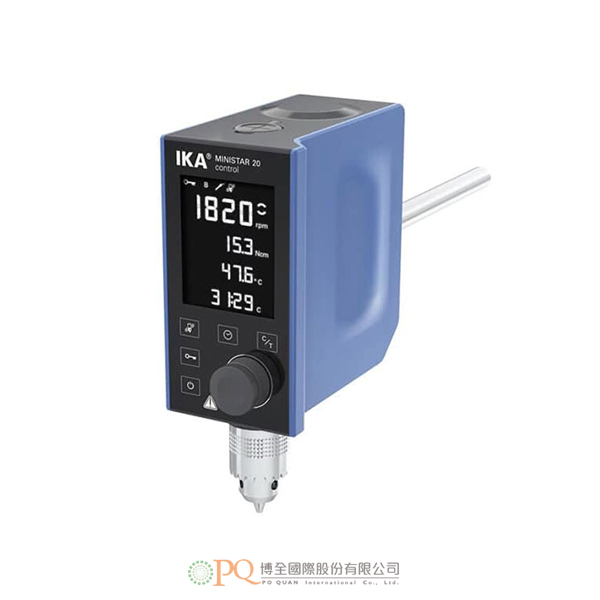

IKA MINISTAR 20 Control Overhead Stirrer

IKA MINISTAR 20 控制頂置攪拌器是高科技小型中「快速的那一個」，非常適合低黏度！

加入洽詢

產品特點產品規格 Features Specifications

主要特點包括：
- 封閉式硬化玻璃、快速回應顯示器，可實現最大的可見性和耐化學性
- 最先進的振動感測器檢測與允許閾值的偏差，並自動停止運作
- 清晰顯示所有重要信息
- 用於控制動力學敏感反應和提醒的整合定時器/計數器
- 黏度高達 10,000 mPas，體積高達 15 L
- 0/30 – 2,000 rpm 之間的連續可調速度
- USB 接口，例如用於使用 labworldsoft® 記錄參數或安裝韌體更新
- 直觀簡單的處理；觸控感應表面，使用壽命長
- 顯示器上的溫度讀數
- 耐化學外殼
- 按鍵鎖定功能
- 微處理器控制的調速器在即使黏度發生變化的情況下也能保持恆定的轉速

Stirring quantity max. per stirring position (H2O)	15 l
Motor rating input	60 W
Motor rating output	46 W
Motor principle	Brushless DC
Speed display	LCD
Speed min.	50 rpm
Speed min.	0/50 rpm
Speed max.	2000 rpm
Viscosity max.	10000 mPas
Output max. at stirring shaft	42 W
Permissible ON time	100 %
Torque max. at stirring shaft	20 Ncm
Speed control	Turning knob
Setting accuracy speed	1 ±rpm
Deviation of speed measurement n > 300rpm	3 ±%
Stirring element fastening	chuck
Connection for ext. temperature sensor	PT1000
Temperature display	yes
Chuck range diameter	8.5 – 8 mm
Hollow shaft, inner diameter	8.5 mm
Hollow shaft (push-through – when stopped)	yes
Fastening on stand	extension arm
Extension arm diameter	13 mm
Extension arm length	160 mm
Torque display	yes
Speed control	electronic
Nominal torque	0.2 Nm
Torque measurement	trend
Deviation of torque measurement I	3 ±Ncm
Timer	yes
Timer display	LCD
Time setting range	0 – 6000 min
Temperature measuring range	-10 – 350 °C
Temperature measurement resolution	0.1 K
Accuracy of temperature measurement	±0.05 + tolerance PT1000 (DIN IEC 751 Class A) K
Limit deviation temperature sensor	≤ ± (0.15 + 0.002xITI) K
Housing material	alu-cast coating / thermoplastic polymer
Communication distance (depend onbuilding) max.	150 m
Dimensions (W x H x D)	70 x 193 x 154 mm
Weight	1.56 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
USB interface	yes
Voltage	100 – 240 V
Frequency	50/60 Hz
Power input	69 W
DC Voltage	24 V=
Current consumption	2900 mA

Key features include:
- Hardened glass enclosed, fast response display for maximum visibility and chemical resistance
- State-of-art vibration sensors detect deviations from permissible thresholds and automatically stop the process
- Clear display for all essential information at a glance
- Integrated timer / counter for the control of kinetic sensitive reactions and reminders
- Viscosities up to 10,000 mPas and volumes of up to 15 l
- Continuously adjustable speed between 0/30 – 2,000 rpm
- USB interface, e.g. for documenting parameters using labworldsoft® or installing firmware updates
- Intuitive and simple handling; touch-sensitive surface for long service life
- Temperature reading on display
- Chemical resistant housing
- Key lock function
- Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity

Stirring quantity max. per stirring position (H2O)	15 l
Motor rating input	60 W
Motor rating output	46 W
Motor principle	Brushless DC
Speed display	LCD
Speed min.	50 rpm
Speed min.	0/50 rpm
Speed max.	2000 rpm
Viscosity max.	10000 mPas
Output max. at stirring shaft	42 W
Permissible ON time	100 %
Torque max. at stirring shaft	20 Ncm
Speed control	Turning knob
Setting accuracy speed	1 ±rpm
Deviation of speed measurement n > 300rpm	3 ±%
Stirring element fastening	chuck
Connection for ext. temperature sensor	PT1000
Temperature display	yes
Chuck range diameter	8.5 – 8 mm
Hollow shaft, inner diameter	8.5 mm
Hollow shaft (push-through – when stopped)	yes
Fastening on stand	extension arm
Extension arm diameter	13 mm
Extension arm length	160 mm
Torque display	yes
Speed control	electronic
Nominal torque	0.2 Nm
Torque measurement	trend
Deviation of torque measurement I	3 ±Ncm
Timer	yes
Timer display	LCD
Time setting range	0 – 6000 min
Temperature measuring range	-10 – 350 °C
Temperature measurement resolution	0.1 K
Accuracy of temperature measurement	±0.05 + tolerance PT1000 (DIN IEC 751 Class A) K
Limit deviation temperature sensor	≤ ± (0.15 + 0.002xITI) K
Housing material	alu-cast coating / thermoplastic polymer
Communication distance (depend onbuilding) max.	150 m
Dimensions (W x H x D)	70 x 193 x 154 mm
Weight	1.56 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
USB interface	yes
Voltage	100 – 240 V
Frequency	50/60 Hz
Power input	69 W
DC Voltage	24 V=
Current consumption	2900 mA
