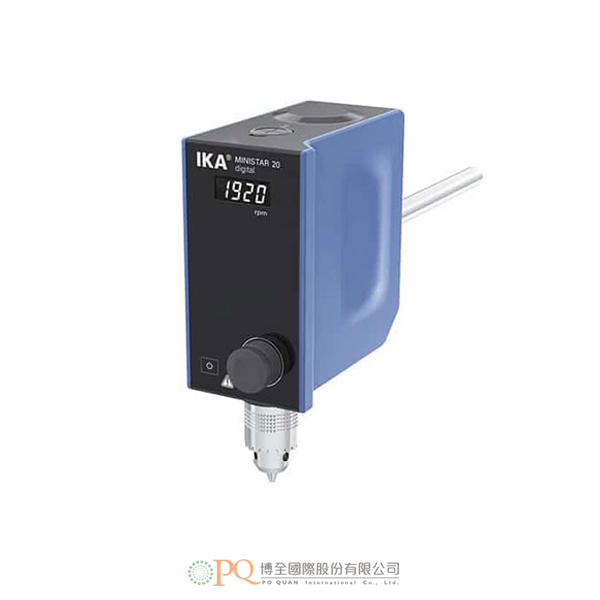

IKA MINISTAR 20 Digital Overhead Stirrer

帶LED 速度顯示和高達 15L (H2O)，0/50-2000 rpm，攪拌軸最大扭矩 20 Ncm。
通過 USB 接口可以快速簡單地進行定期軟體更新。

Stirring quantity max. per stirring position (H2O)	15 l
Motor rating input	60 W
Motor rating output	46 W
Motor principle	Brushless DC
Speed display	LED
Speed min.	50 rpm
Speed min.	0/50 rpm
Speed max.	2000 rpm
Viscosity max.	10000 mPas
Output max. at stirring shaft	42 W
Permissible ON time	100 %
Torque max. at stirring shaft	20 Ncm
Speed control	Turning knob
Setting accuracy speed	1 ±rpm
Deviation of speed measurement n > 300rpm	1 ±%
Deviation of speed measurement n < 300rpm	3 ±rpm
Stirring element fastening	chuck
Chuck range diameter	0.5 – 8 mm
Hollow shaft, inner diameter	8.5 mm
Hollow shaft (push-through – when stopped)	yes
Fastening on stand	extension arm
Extension arm diameter	13 mm
Extension arm length	160 mm
Nominal torque	0.075 Nm
Timer display	none
Housing material	alu-cast coating / thermoplastic polymer
Dimensions (W x H x D)	70 x 193 x 147 mm
Weight	1.56 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
USB interface	yes
Voltage	100 – 240 V
Frequency	50/60 Hz
Power input	69 W
Power input standby	0.5 W
DC Voltage	24 V=
Current consumption	2900 mA

With LED speed display and up to 15L (H2O), 0/50-2000 rpm, torque max, at stirring shaft 20 Ncm.
Regular software updates can be undertaken rapidly and simply via the USB interface.

Stirring quantity max. per stirring position (H2O)	15 l
Motor rating input	60 W
Motor rating output	46 W
Motor principle	Brushless DC
Speed display	LED
Speed min.	50 rpm
Speed min.	0/50 rpm
Speed max.	2000 rpm
Viscosity max.	10000 mPas
Output max. at stirring shaft	42 W
Permissible ON time	100 %
Torque max. at stirring shaft	20 Ncm
Speed control	Turning knob
Setting accuracy speed	1 ±rpm
Deviation of speed measurement n > 300rpm	1 ±%
Deviation of speed measurement n < 300rpm	3 ±rpm
Stirring element fastening	chuck
Chuck range diameter	0.5 – 8 mm
Hollow shaft, inner diameter	8.5 mm
Hollow shaft (push-through – when stopped)	yes
Fastening on stand	extension arm
Extension arm diameter	13 mm
Extension arm length	160 mm
Nominal torque	0.075 Nm
Timer display	none
Housing material	alu-cast coating / thermoplastic polymer
Dimensions (W x H x D)	70 x 193 x 147 mm
Weight	1.56 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
USB interface	yes
Voltage	100 – 240 V
Frequency	50/60 Hz
Power input	69 W
Power input standby	0.5 W
DC Voltage	24 V=
Current consumption	2900 mA
