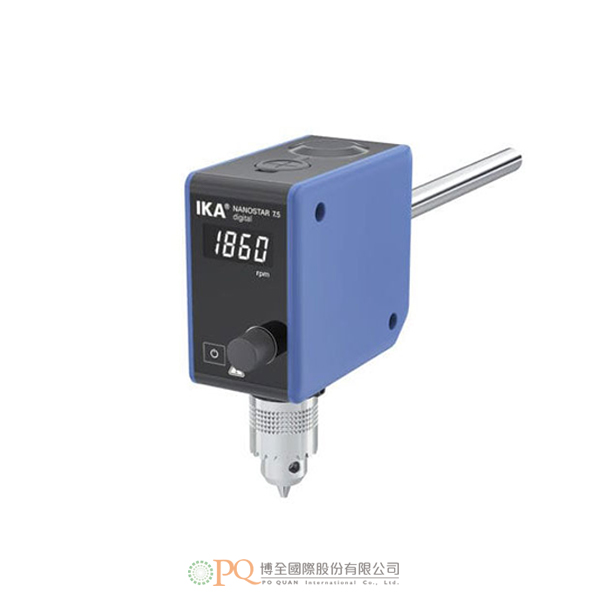

IKA NANOSTAR 7.5 digital

頂置式攪拌器NANOSTAR 7.5 digital比MICROSTAR 7.5 digital小30%，因此更能同時在節省空間的情況下保持性能不變。NANOSTAR 7.5數位設備具有完美的基本功能，其緊湊的設計讓重量僅為易於操作的0.8公斤。

產品特點產品規格 Features Specifications

NANOSTAR 7.5 digital可確保在50 - 2.000 rpm的整個轉速範圍內保持恆定扭矩。
使用穩定的旋鈕進行操作且可透過顯示器清楚地顯示轉速。
通過 USB 接口可以快速簡單地進行定期軟體更新。

Stirring quantity max. per stirring position (H2O)	5 l
Motor rating input	32 W
Motor rating output	22 W
Motor principle	Brushless DC
Speed display	LED
Speed min.	50 rpm
Speed min.	0/50 rpm
Speed max.	2000 rpm
Viscosity max.	4000 mPas
Output max. at stirring shaft	15.7 W
Permissible ON time	100 %
Torque max. at stirring shaft	7.5 Ncm
Speed control	Turning knob
Setting accuracy speed	1 ±rpm
Deviation of speed measurement n > 300rpm	1 ±%
Deviation of speed measurement n < 300rpm	3 ±rpm
Stirring element fastening	chuck
Chuck range diameter	0.5 – 8 mm
Hollow shaft, inner diameter	8.5 mm
Hollow shaft (push-through – when stopped)	yes
Fastening on stand	extension arm
Extension arm diameter	13 mm
Extension arm length	160 mm
Nominal torque	0.075 Nm
Timer display	none
Housing material	alu-cast coating / thermoplastic polymer
Dimensions (W x H x D)	53 x 147 x 130 mm
Weight	0.8 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
USB interface	yes
Voltage	100 – 240 V
Frequency	50/60 Hz
Power input	32 W
Power input standby	0.3 W
DC Voltage	24 V=
Current consumption	1300 mA

NANOSTAR 7.5 digital guarantees a constant torque over the entire rpm range from 50 – 2.000 rpm.

Operation takes place using a stable rotary knob. The display clearly shows the rotational speed.

Regular software updates can be undertaken rapidly and simply via the USB interface.

Stirring quantity max. per stirring position (H2O)	5 l
Motor rating input	32 W
Motor rating output	22 W
Motor principle	Brushless DC
Speed display	LED
Speed min.	50 rpm
Speed min.	0/50 rpm
Speed max.	2000 rpm
Viscosity max.	4000 mPas
Output max. at stirring shaft	15.7 W
Permissible ON time	100 %
Torque max. at stirring shaft	7.5 Ncm
Speed control	Turning knob
Setting accuracy speed	1 ±rpm
Deviation of speed measurement n > 300rpm	1 ±%
Deviation of speed measurement n < 300rpm	3 ±rpm
Stirring element fastening	chuck
Chuck range diameter	0.5 – 8 mm
Hollow shaft, inner diameter	8.5 mm
Hollow shaft (push-through – when stopped)	yes
Fastening on stand	extension arm
Extension arm diameter	13 mm
Extension arm length	160 mm
Nominal torque	0.075 Nm
Timer display	none
Housing material	alu-cast coating / thermoplastic polymer
Dimensions (W x H x D)	53 x 147 x 130 mm
Weight	0.8 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
USB interface	yes
Voltage	100 – 240 V
Frequency	50/60 Hz
Power input	32 W
Power input standby	0.3 W
DC Voltage	24 V=
Current consumption	1300 mA
