作為IKA最暢銷的型號之一，值得注意的主要功能包括：
- 數位顯示器
- 堅固、纖細、符合人體工程學的設計
- 對值得信賴的RW 20系列設計進行科技術改進
- 具有恆功率驅動
- 兩個通用速度範圍，60–2.000 rpm
- 推動攪拌器軸（僅在靜止時）
- 攪拌量高達15 l（H2O）
-
Stirring quantity max. per stirring position (H2O) 20 l Motor rating input 70 W Motor rating output 35 W Speed display LED Speed range 60 – 2000 rpm Viscosity max. 10000 mPas Output max. at stirring shaft 26 W Permissible ON time 100 % Torque max. at stirring shaft 150 Ncm Torque max. at stirring shaft at 60 1/min (overload) 300 Ncm Torque max. at stirring shaft at 100 1/min 150 Ncm Torque max. at stirring shaft at 1.000 1/min 24 Ncm Speed range I (50 Hz) 60 – 500 rpm Speed range II (50 Hz) 240 – 2000 rpm Speed range I (60 Hz) 72 – 600 rpm Speed range II (60 Hz) 288 – 2400 rpm Speed control stepless Setting accuracy speed 1 ±rpm deviation of speed measurement 30 ±rpm Stirring element fastening chuck Temperature display no Chuck range min. diameter 0.5 mm Chuck range max. diameter 10 mm Hollow shaft, inner diameter 10.5 mm Hollow shaft (push-through – when stopped) yes Fastening on stand extension arm Extension arm diameter 13 mm Extension arm length 160 mm Torque display no Nominal torque 1.5 Nm Timer no Dimensions (W x H x D) 88 x 294 x 212 mm Weight 3.1 kg Permissible ambient temperature 5 – 40 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 20 USB interface no RS 232 interface no Analog output no Voltage 220 – 240 / 100 – 115 V Frequency 50/60 Hz Power input 72 W -

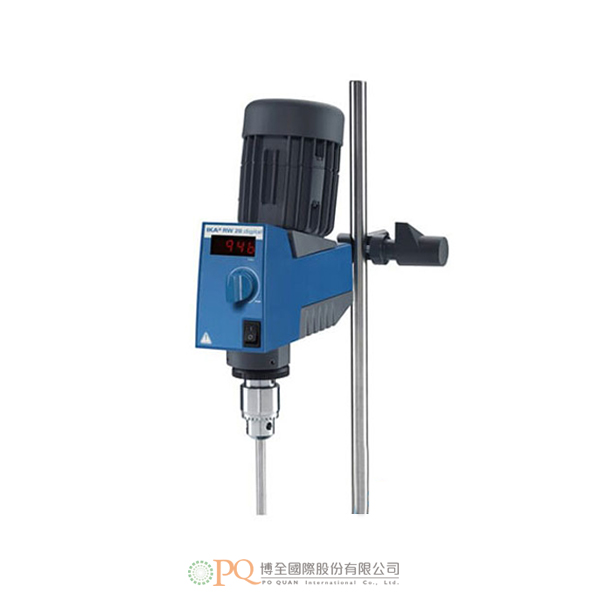

As one of IKA’s best-selling models, the key features to look out for are:
- Digital display
- Robust, slimline, ergonomic design
- Technical improvements on the trusted RW 20 series designs
- With constant power-drive
- Two speed ranges for universal use from 60 – 2.000 rpm
- Push-through agitator shafts (only when stationary)
- For stirring quantities of up to 15 l (H2O)
-
Stirring quantity max. per stirring position (H2O) 20 l Motor rating input 70 W Motor rating output 35 W Speed display LED Speed range 60 – 2000 rpm Viscosity max. 10000 mPas Output max. at stirring shaft 26 W Permissible ON time 100 % Torque max. at stirring shaft 150 Ncm Torque max. at stirring shaft at 60 1/min (overload) 300 Ncm Torque max. at stirring shaft at 100 1/min 150 Ncm Torque max. at stirring shaft at 1.000 1/min 24 Ncm Speed range I (50 Hz) 60 – 500 rpm Speed range II (50 Hz) 240 – 2000 rpm Speed range I (60 Hz) 72 – 600 rpm Speed range II (60 Hz) 288 – 2400 rpm Speed control stepless Setting accuracy speed 1 ±rpm deviation of speed measurement 30 ±rpm Stirring element fastening chuck Temperature display no Chuck range min. diameter 0.5 mm Chuck range max. diameter 10 mm Hollow shaft, inner diameter 10.5 mm Hollow shaft (push-through – when stopped) yes Fastening on stand extension arm Extension arm diameter 13 mm Extension arm length 160 mm Torque display no Nominal torque 1.5 Nm Timer no Dimensions (W x H x D) 88 x 294 x 212 mm Weight 3.1 kg Permissible ambient temperature 5 – 40 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 20 USB interface no RS 232 interface no Analog output no Voltage 220 – 240 / 100 – 115 V Frequency 50/60 Hz Power input 72 W
