它是 ReactoMate中試規模控制實驗室反應器的合作儀器，適用於實驗室和中試工廠的密集混合。
攪拌器配備了通過自鎖式溫度限制器防止馬達過熱的保護裝置。此外，攪拌軸保護和固定用的夾具都是可選配的。- 數位速度顯示
- 在60到1400 rpm兩個速度範圍內無級調速
- 推動式攪拌器軸
- 過載保護
- 錯誤代碼顯示
- 堅固、符合人體工程學的設計
- 無噪音運轉
- 具有恆定功率驅動
-
Stirring quantity max. per stirring position (H2O) 80 l Motor rating input 220 W Motor rating output 90 W Speed display LED Speed range 60 – 1400 rpm Viscosity max. 50000 mPas Output max. at stirring shaft 90 W Permissible ON time 100 % Torque max. at stirring shaft 900 Ncm Torque max. at stirring shaft at 60 1/min (overload) 1144 Ncm Torque max. at stirring shaft at 100 1/min 900 Ncm Torque max. at stirring shaft at 1.000 1/min 86 Ncm torque I max. 900 Ncm torque II max. 300 Ncm Speed range I (50 Hz) 60 – 400 rpm Speed range II (50 Hz) 240 – 1400 rpm Speed range I (60 Hz) 72 – 480 rpm Speed range II (60 Hz) 288 – 1680 rpm Speed control stepless Setting accuracy speed 1 ±rpm deviation of speed measurement 10 ±rpm Stirring element fastening chuck Chuck range min. diameter 1 mm Chuck range max. diameter 10 mm Hollow shaft, inner diameter 10.5 mm Hollow shaft (push-through – when stopped) yes Fastening on stand extension arm Extension arm diameter 16 mm Extension arm length 145 mm Torque display no Nominal torque 9 Nm housing material alu-cast coating / thermoplastic polymer clean room qualified no explosion proofed no Noise without element 62.5 dB(A) Dimensions (W x H x D) 123 x 364 x 252 mm Weight 7.5 kg Permissible ambient temperature 5 – 40 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 40 USB interface no RS 232 interface no Analog output no Voltage 220 – 240 / 115 / 100 V Frequency 50/60 Hz Power input 220 W -

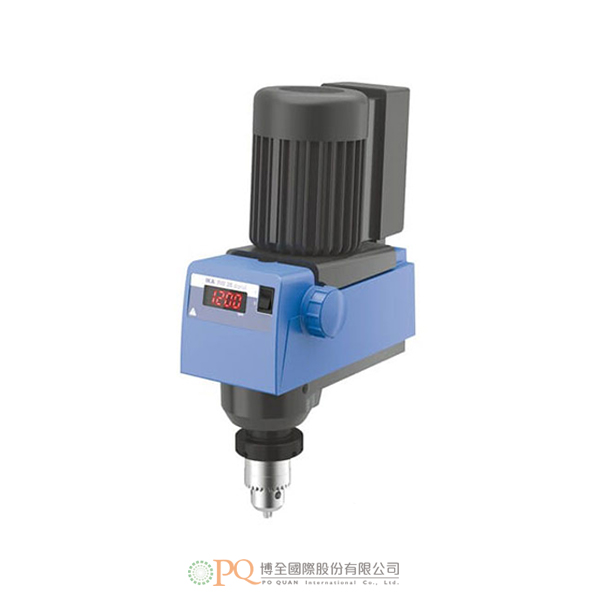

A perfect partner to the ReactoMate Pilot Scale controlled laboratory reactors, it is suitable for intensive mixing for use in laboratories and pilot plants.
The stirrer comes equipped with a protection for overheating of the motor by means of self-locking temperature limiter. Additionally, to secure bowls, a stirring shaft protection and clamping fixture are optionally available.
- Digital speed display
- Infinitely adjustable speed from 60 to 1400 rpm in two speed ranges
- Push-through agitator shafts
- Overload protection
- Error code display
- Robust, ergonomic design
- Quiet operation
- With constant power-drive
-
Stirring quantity max. per stirring position (H2O) 80 l Motor rating input 220 W Motor rating output 90 W Speed display LED Speed range 60 – 1400 rpm Viscosity max. 50000 mPas Output max. at stirring shaft 90 W Permissible ON time 100 % Torque max. at stirring shaft 900 Ncm Torque max. at stirring shaft at 60 1/min (overload) 1144 Ncm Torque max. at stirring shaft at 100 1/min 900 Ncm Torque max. at stirring shaft at 1.000 1/min 86 Ncm torque I max. 900 Ncm torque II max. 300 Ncm Speed range I (50 Hz) 60 – 400 rpm Speed range II (50 Hz) 240 – 1400 rpm Speed range I (60 Hz) 72 – 480 rpm Speed range II (60 Hz) 288 – 1680 rpm Speed control stepless Setting accuracy speed 1 ±rpm deviation of speed measurement 10 ±rpm Stirring element fastening chuck Chuck range min. diameter 1 mm Chuck range max. diameter 10 mm Hollow shaft, inner diameter 10.5 mm Hollow shaft (push-through – when stopped) yes Fastening on stand extension arm Extension arm diameter 16 mm Extension arm length 145 mm Torque display no Nominal torque 9 Nm housing material alu-cast coating / thermoplastic polymer clean room qualified no explosion proofed no Noise without element 62.5 dB(A) Dimensions (W x H x D) 123 x 364 x 252 mm Weight 7.5 kg Permissible ambient temperature 5 – 40 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 40 USB interface no RS 232 interface no Analog output no Voltage 220 – 240 / 115 / 100 V Frequency 50/60 Hz Power input 220 W
