LBIC 設定

Customized Photocurrent Mapping of Solar Cells and Modules 型號:LBIC
Laser choices
◎Standard: 445 nm wavelength, 10mW power
◎405 nm, 532 nm, and many more
    • Laser choices
      • Standard: 445 nm wavelength, 10mW power
      • 405 nm, 532 nm, and many more
    • Laser checked for beam circularity
    • Sample holder:
      • Versatile and adaptable to a large range of sample layouts
      • Multiplexer option for automatic contact switching
      • Current amplifier for low signal measurements
    • Easy to use control software with data export
  • Applications and functions

    • Fast and reliable photocurrent mapping with highest resolution
    • Defect detection and visualization – shunts, coating defects, localize inactive regions
    • Study degradation effects
    • Quality control tool

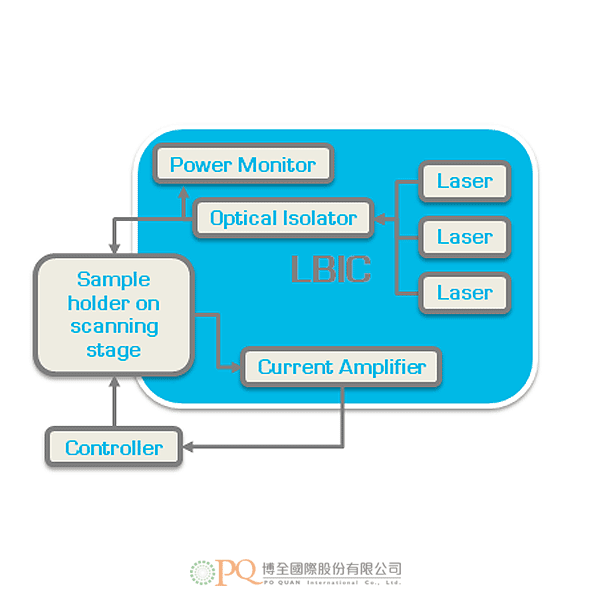

    • A laser beam scans the sample and the excited photocurrent is measured
    • Different (multiple) laser wavelengths available
    • Up to  300×300 mm² scanning area
    • Mapping of all kinds of solar technologies:   Perovskite, Organic, Silicon, CIGS, CdTe,
