Sonel > 電線和電纜的位置及故障檢測

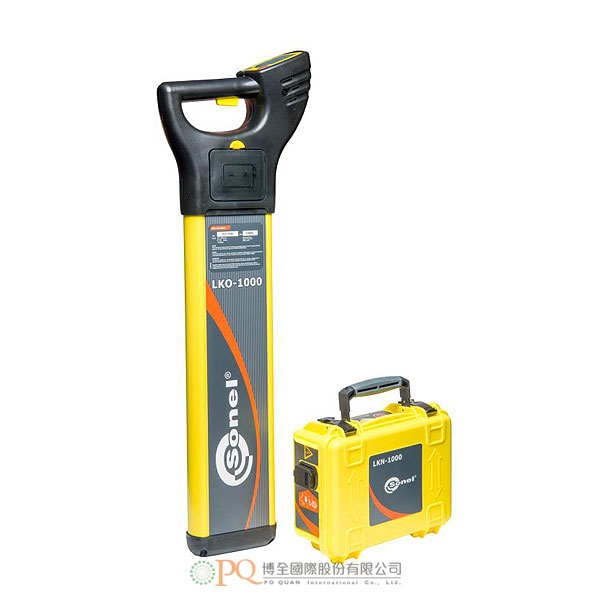

SONEL-LKZ-1000

LKZ-1000

Wires and pipe locato 型號：LKZ-1000

Passive or active modes of tracing.
Detection of underground live wires.
Detection of underground wires with no voltage (radio mode).
Detection of underground wires with no voltage using a transmitter (galvanised, inductive or clamp-based connection).
Tracing metallic or non-conductive pipes using an additional probe.
Tracing non-conductive pipelines using a “floating” probe.
Tracing a determined cable.
Determining the depth of a cable.

產品特點產品規格

- Passive or active modes of tracing.
- Detection of underground live wires.
- Detection of underground wires with no voltage (radio mode).
- Detection of underground wires with no voltage using a transmitter (galvanised, inductive or clamp-based connection).
- Tracing metallic or non-conductive pipes using an additional probe.
- Tracing non-conductive pipelines using a “floating” probe.
- Tracing a determined cable.
- Determining the depth of a cable.

LKN-1000 transmitter
Ingress protection	IP65
Power supply	4x LR20 battery
Dimensions	180 x 280 x 260 mm
Weight	ca. 2.4 kg
Operating temperature	-20…+55°C
Storage temperature	-40…+70°C
Humidity	95%
LKO-1000 receiver
Ingress protection	IP54
Power supply	6x LR6 battery
Dimensions	760 x 250 x 85 mm
Weight	ca. 2.7 kg
Operating temperature	-20…+50°C
Storage temperature	-40…+70°C
Humidity	95%
