微處理器控制型壓力傳感器

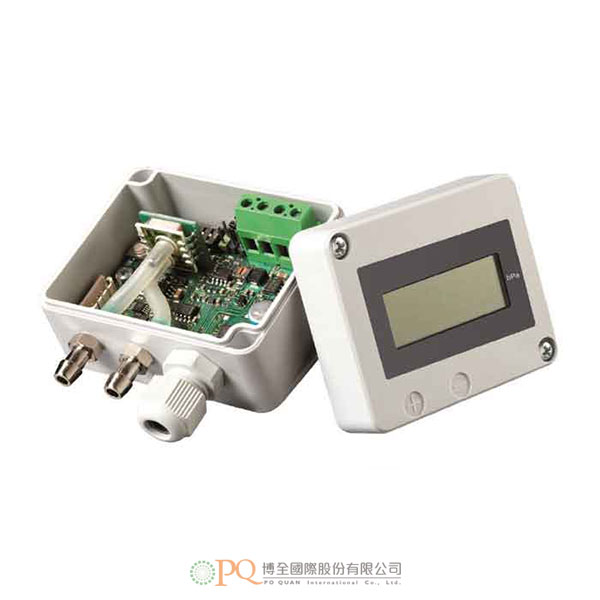

HUBER Microprocessor-Controlled Pressure Transducers 型號:HT01
  • 經濟實惠、高效率、僅需佔用最小的空間,極適用於測量非腐蝕性氣體的過壓、欠壓或差壓。
  • 壓力測量是透過壓阻式壓力感測器進行。
  • 提供4個不同的測量範圍,可透過指撥開關選擇。
  • 可輸出類比電壓信號(0~10V)及電流信號(0~20mA),電流信號可切換為4~20mA。
  • 對於強烈不穩定的壓力,可以使用阻尼功能,阻尼的延遲時間,可透過指撥開關選擇10ms、2s或4s。
  • 應用領域:無塵室技術、加工通過測量、過濾器監控(加熱)、通風、空調。
    • 經濟實惠、高效率、僅需佔用最小的空間,極適用於測量非腐蝕性氣體的過壓、欠壓或差壓。
    • 壓力測量是透過壓阻式壓力感測器進行。
    • 提供4個不同的測量範圍,可透過指撥開關選擇。
    • 可輸出類比電壓信號(0~10V)及電流信號(0~20mA),電流信號可切換為4~20mA。
    • 對於強烈不穩定的壓力,可以使用阻尼功能,阻尼延遲時間,可透過指撥開關選擇10ms、2s或4s。
    • 可選配LCD顯示幕,以確保每次在現場都能立即讀取測量資料。
    • 應用領域:
      • 無塵室技術。
      • 加工通過測量。
      • 過濾器監控 - 加熱。
      • 通風。
      • 空調。
    • 系統簡介:
      • 極適用於偵測非腐蝕性氣體的過壓、低壓或差壓。
      • 壓力測量是透過壓阻式壓力感測器進行,感測器提供2個不同的基本壓力範圍,這些範圍可以再透過指撥開關細分。
      • 感測器的溫度漂移是採個別補償。
      • 無磨損式的測量系統,幾乎可以免維護的操作。
      • 內建的電子系統提供與壓力成比例的類比電壓信號(0~10V)及電流信號(0~20mA),電流信號可切換為4~20mA。
      • 包括阻尼功能,以適用於強烈變化的壓力。
      • 阻尼延遲時間,可透過指撥開關切換為10ms、2s或4s。
      • 可選配LCD顯示幕(可加裝)。
    • 測量範圍:1000 Pa、750 Pa、500 Pa、250 Pa。
    • 輸出信號:0~10V及0(4)~20 mA,可透過跨接器選擇。
    • 最大系統壓力:550hPa。
    • 測量原理:壓阻式。
    • 線性度:± 2 % f.s.
    • 保護類別:III。
    • 防護等級:IP54。
    • 選購(可加裝):3 ½位數LCD顯示幕。
    • 詳細規格、配件、軟體及選購,歡迎洽詢。
    • Budget friendly, efficient, minimum space requirements......the HT01 series is perfectly suitable for measuring over-, under- or differential-pressure of non aggressive gasses.
    • The measurement is done via piezorisistive pressure sensor.
    • Four different measurement ranges are selectable via dip switch
    • The HT01 puts out a analog voltage signal (0… 10 V) and a current signal (0… 20 mA).
    • The current signal can be switched to 4… 20 mA.
    • For highly unsteady pressures, a damping can be cut in.
    • The dealy of the damping is selectable via dip switch between 10ms, 2 sec. and 4 sec.
    • Optional there's also a display for the HT01 series available to ensure everytime readability of the measured data, immediately, everytime and on site.
    • Fields of application:
      • Clean room technology
      • Finishing pass measurement
      • Filter monitor- Heating
      • Ventilation
      • Air conditioning
    • Description:
      • The microprocessor-controlled pressure transducers of the HT01 type series are suitable for detection of excess pressure, low pressure or differential pressure of non-aggressive gasses.
      • Pressure measurement is carried out via a piezo-resistive pressure sensor. The sensor is available with two different basic pressure ranges. These ranges may be subdivided by means of the DIP switch.
      • The temperature drift of the sensors is compensated individually.
      • The wear-free measurement system allows for almost maintenance-free operation.
      • The integratred electronic system provides a pressure-proportional analogue voltage signal (0 ... 10 V) and a current signal of 0 ... 20 mA. This signal may be switched to 4 ... 20 mA.
      • For strongly varying pressures a dampening function is included. This function may be switched from approx. 10 ms (retardation) to 2 sec. or 4 sec. by means of the DIP switch.
      • An LC display is optionally available and may be retrofitted by means of patch system.
    • Measuring range: 1000 Pa : 750 Pa : 500 Pa : 250 Pa
    • Output signal: 0… 10 V and 0 ( 4)… 20 mA selectable via jumper
    • Maximum system pressure: 550 hPa
    • Measurement principle: piezoresistive
    • Linearity: ± 2 % F.S.
    • Protection class: III
    • Protection type: IP54
    • Option (retrofittable): LCD, 3 ½digits
    • Please feel free to contact for detailed specifications, accessories, software and options.
