拉曼光譜儀

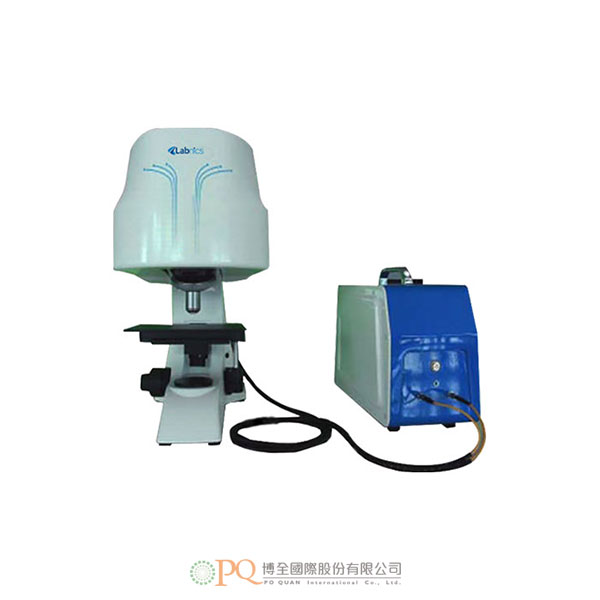

Raman Spectrometer NRS-100 型號:NRS-100
拉曼光譜儀 NRS-100 是一種高通量分析儀器,它將顯微成像現象與光譜儀檢測相結合,用於化合物的結構分析。它具有很高的靈敏度,具有全自動對焦機制和增強型CCD檢測器系統等特點。
    • 全自動系統,單次操作掃描和聚焦模式
    • 通過檢測位置的微域形態促進了大範圍的檢測
    • 採用物鏡設計,激光光斑與衍射極限之間的距離更小,成像準確
    • 高靈敏度分析,噪聲比大於 6000:1
    • 配備高分辨率攝像頭,圖像清晰準確
    • 它具有改進的拉曼光譜質量和超高空間分辨率
    • 穩定的固態組裝光學元件
    • 相機在成像過程中不會損失光路,從而保留光譜強度
    • 具有USB 2.0接口,可直接連接顯示器等設備
  • 激發波長 785奈米
    光譜分辨率 4厘米-1
    光譜範圍 250-2700、200-3500 和 200-4300 厘米-1
    最大激光輸出 500毫瓦
    光譜穩定性 σ / µ < 0.5%
    熱穩定性譜位移 1 厘米-1 (10.40 t7)
    信噪比 > 6000:1
    探測器 TE 冷卻、半導體激光器、2048 (64 x 64) 像素、背面變薄、IR 增強型 CCD InGalt5 冷卻至 1064nm
    波長范圍 200nm-1100nm
    像素大小 14 × 14 微米
    動態範圍 13000:1
    激光波長 785nm (±0.5nm)
    顯微鏡相機 3 像素/5 像素攝像頭
    調焦機構 真正的共焦
    激光輸出 > 550mW
    激光光斑直徑 >1 微米
    激光穩定性 σ/µ <±0.2%
    激光線寬 0.08 奈米
    連通性 USB2.0
    電控X、Y軸二維平台移動範圍 5 X 5 厘米
    移動分辨率 0.1 微米
    定位精度 1微米
    掃描速度 20毫米/秒
    Z軸自動對焦精度 ≤ ± 10.2 µm
    Z 軸 自動最大範圍 20mm
    Z軸自動對焦速度 小於 10 秒
    外形尺寸 455×455×585毫米
    淨重 10.5公斤
    • Fully automated system with scanning and focusing mode in single operation
    • Wide area of detection facilitated by detection of micro-domain morphology of the location
    • It is designed with objective lens with less space between laser spot and diffraction limit for accurate imaging
    • Highly sensitive analysis with noise-to-noise ratio greater than 6000:1
    • It is equipped with high resolution camera for clear and precise images
    • It possesses improved Raman spectral quality with ultra high spatial resolution
    • Stable and solid state assembled optical components
    • No loss of optical path during imaging operation by camera and thereby retains the spectral strength
    • It is featured with USB 2.0 interface that can directly connect to monitor and other devices
  • Excitation wavelength 785 nm
    Spectral resolution 4 cm-1
    Spectral range 250-2700, 200-3500, and 200-4300 cm-1
    Maximum laser output 500mW
    Spectral stability σ / µ < 0.5%
    Thermal stability spectral shifts 1 cm-1(10.40 t7)
    SN ratio > 6000:1
    Detector TE cooled, semiconductor laser, 2048 (64 x 64) pixel, back-thinned, IR Enhanced CCD InGalt5 cooled for 1064nm
    Wavelength Range 200nm-1100nm
    Pixel size 14 × 14 µm
    Dynamic range 13000:1
    Laser wavelength 785nm (±0.5nm)
    Microscope camera 3-megapixel /5-megapixel camera
    Focusing mechanism True confocal
    Laser output > 550mW
    Laser spot diameter >1 µm
    Laser stability σ/µ <±0.2%
    Laser line width 0.08 nm
    Connectivity USB2.0
    Electrical controlled X and Y axis 2D platform moving range 5 X 5 cm
    Moving resolution 0.1 µm
    Positioning accuracy 1µm
    Scan speed 20mm/s
    Z axis Automated focusing accuracy ≤ ± 10.2 µm
    Z axis Automated maximum range 20mm
    Z axis Automated focusing speed Less than 10 s
    Overall dimensions 455×455×585 mm
    Net Weight 10.5 kg
