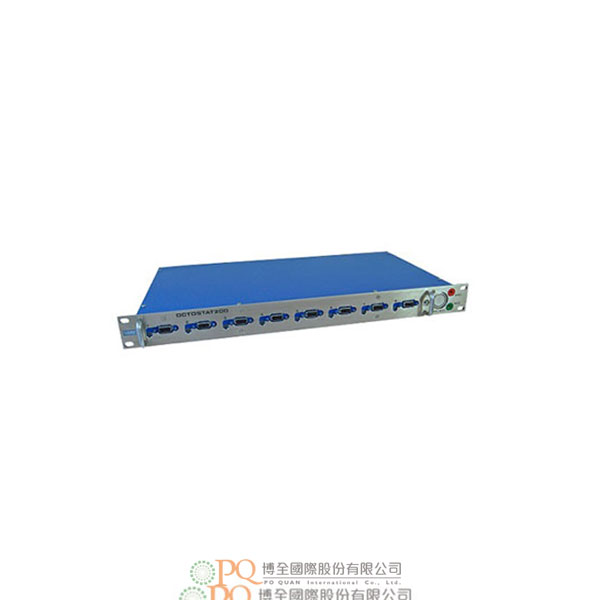

電池充放電機

• 每個通道：±200mA/±10V  FRA/EIS：10µHz-100kHz（可選購 1MHz）。
• 8 通道恒電位/恒電流/ZRA分析儀。
• 19 “機架式外殼。
• 極具經濟實惠的高規格電化學測試系統。

專業應用
該儀器專為多電池長時間並行測量的應用而設計，例如電池/燃料電池測試、電極開發、生物技術和腐蝕。

完整的解決方案
OctoStat 提供全套解決方案。主機包括每個通道的內建專用頻率響應分析儀、低至 100 pA 全量程的低電流測量能力（fA 解析度）以及用於輔助訊號（例如溫度）的類比測量通道。所有測量和數據處理軟體均包括在內。

安全性
儀器的最大電流或電位可由操作員設定。這樣就可以保護珍貴的樣品，防止出現不安全的情況。

數據安全與連接
OctoStat配備了整合的 DataSecure 模組：

• 數據儲存在機上，不同於一般傳輸至電腦儲存。
• 可連接多台電腦。

硬體：

• 自動電流範圍選擇： 100pA to 10mA/100mA/10A
• 自動變量的雜訊濾波器和恒電位/恆電流儀穩定性設定。
• 同時擷取電流/電位和外部類比訊號。
• 即時數據顯示高達  3,000  pnts/s。高達300,000 pnts/s 的取樣儲存在儀器記憶體中。
• 最小間隔時間：3.33µs（0.125µs 解析度）。
• 通過自動調整濾波器、增益放大器和直流減去對結果進行最佳化。

軟體 :
OctoStat通過 Ivium 自備的 IviumSoft 軟體進行控制。這款功能多樣、直觀易用的軟體可用於儀器控制、數據管理和分析等。OctoStat軟體還可與 LabVIEWTM、C++、Delphi 等軟體連接並由其控制。每台儀器均標配全套軟體。

• 單獨控制不同通道。
• 同時控制所有通道。
• 同步啟動。
• 不同通道的數據可分別繪製或繪製在一張圖表中。

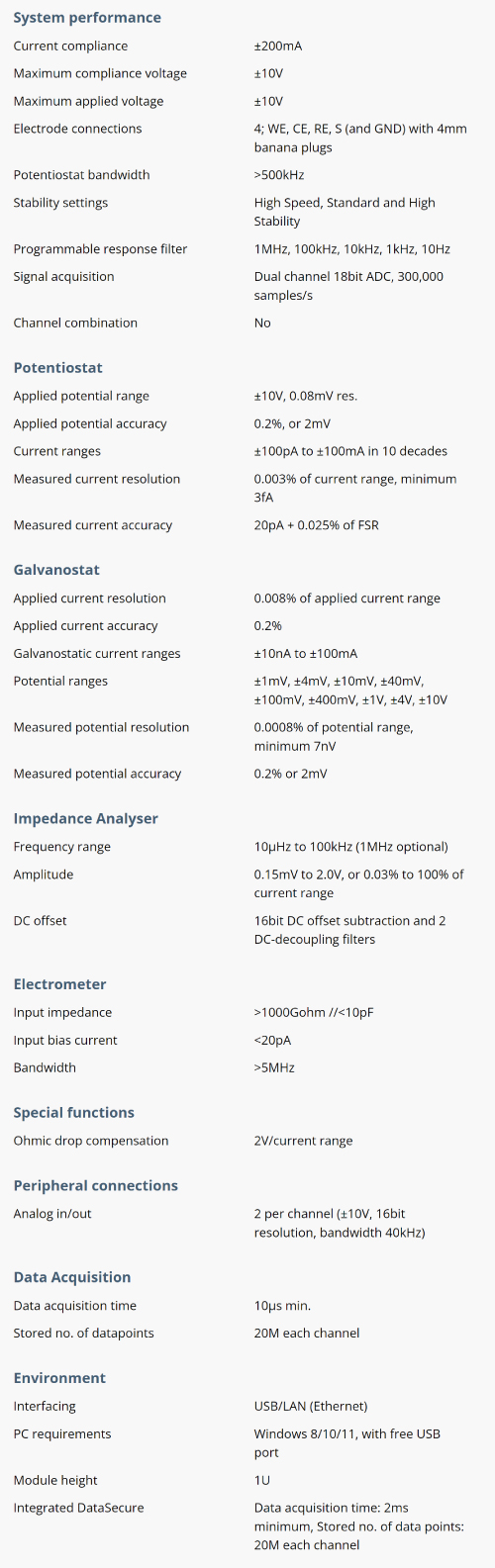

機型比較






• Each channel: ±200mA/±10V FRA/EIS: 10µHz-100kHz (1MHz optional)
• 8-channel Potentiostat/Galvanostat/ZRA
• 19" rack-mountable housing
• Affordable high-spec electrochemical test system

Dedicated application
The instrument is designed for applications where multiple cells are operated in parallel for long periods of time, such as battery/fuel cell-testing, electrode development, biotechnology and corrosion.

Complete solution
The OctoStat offers a complete package. The hardware includes a built-in dedicated Frequency Response Analyser for each channel, low current measurement possibility down to 100pA full-scale with fA resolution, and an analog measurement channel for secondary signals such as temperature. All measurement and dataprocessing software is included.

Safety
The maximum current or potential of the instrument can be defined by the operator. Thus valuable samples may be protected, and unsafe situations prevented.

Data security & Connection
The OctoStat is equipped with an integrated DataSecure module:

• Data is stored on board independent of the computer.
• Connection of multiple PCs is possible.

Hardware:

• Automatic current range selection: 100pA to 10mA/100mA/10A
• Automatic variable noise filter and potentiostat/galvanostat stability settings
• Simultaneous acquisition of current/potential and peripheral analog signal
• Real time data up to 3,000 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory
• Minimum interval time: 3.33µs (0.125µs resolution)
• Result optimalisation by automated tuned filters, gain amplifiers and DC-subtraction

Software:
The OctoStat is controlled via Ivium’s own software, IviumSoft. This versatile, yet intuitive software, allows instrument control, data management and analysis, etc. The OctoStat can also be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of software is included as standard with each instrument.

• Control of separate channels individually
• All channels simultaneously
• Synchronous start
• Data from different channels plotted individually or in 1 single graph

Model comparison
