PAT-Cell

PAT-Cell 型號:PAT-Cell

使用創新的PAT-Core概念對鋰離子電池材料進行高通量測試的無引線測試治具。

  • 以三極式進行長期的半電池量測。
  • 基於一次性使用的概念,不需要清洗或乾燥電池零件。
  • 為下一代電池化學製品提供卓越的抗腐蝕能力。
  • 電極上可重複且均勻的機械壓力。
  • EL-Cell GmbH用於兩極式和三極式測試的電化學測試治具。

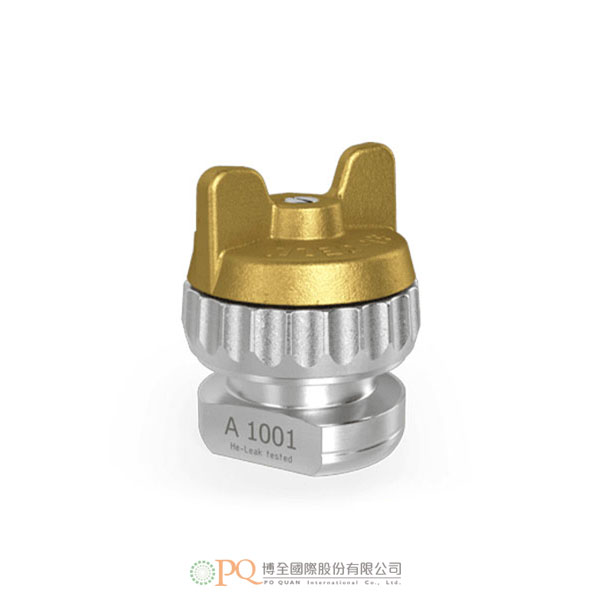

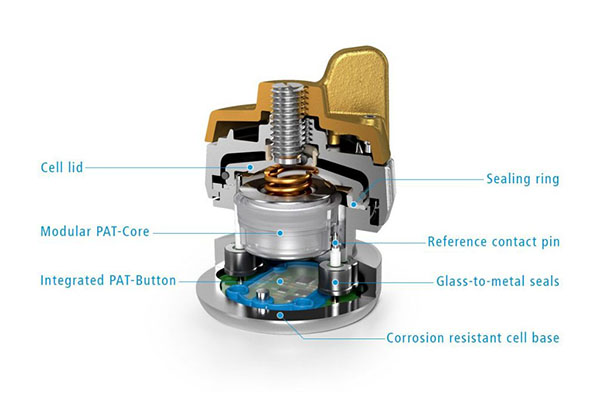

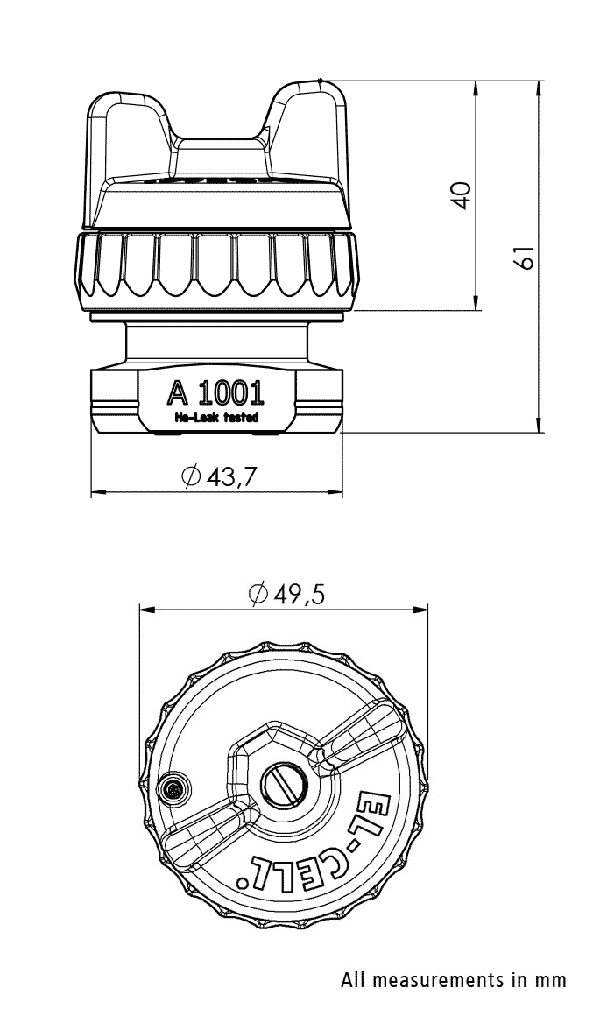

    PAT-Cell是一種用於電池材料的兩極式或三極式量測的測試治具。它採用模組化的PAT-Core概念,因此可用於各種測試目的。它無須任何接線,可直接插入PAT電池測試儀,或通過PAT擴充基座連接到任何市面上的電池測試儀/恒電位儀。整合後的PAT按鈕等功能,進一步改善了操作的簡便性。還有當治具插入 PAT 電池測試儀時,治具底部的這種獲得專利的電子儲存器可實現自動電池識別。PAT-Cell同樣適用於自動化的高產量方案和小規模的測試用途。

    樣品測試結果

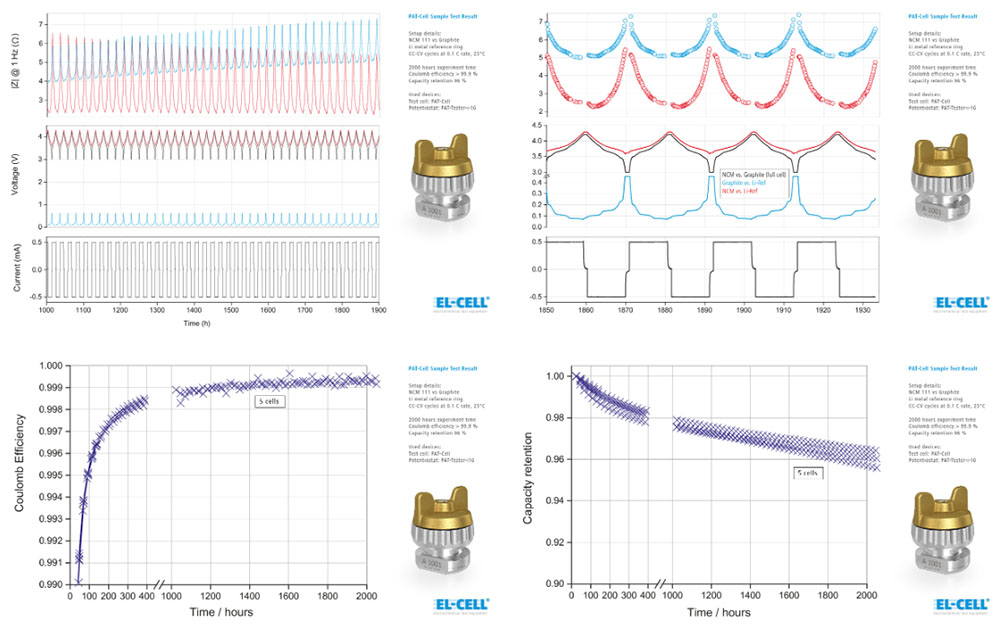

    樣品測試1:NCM 111與石墨的循環測試,時間為2000小時。

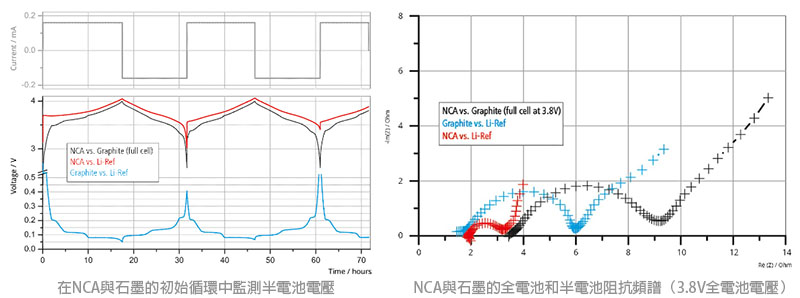

    樣品測試2:NCA與石墨的循環對比。

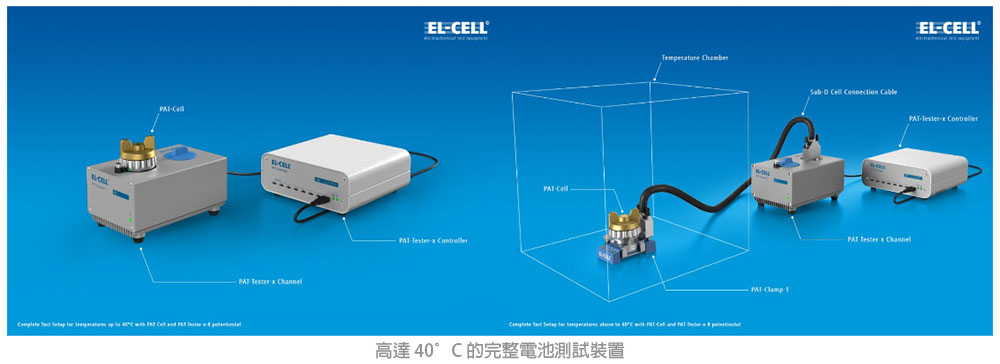

    示範裝置

    配件

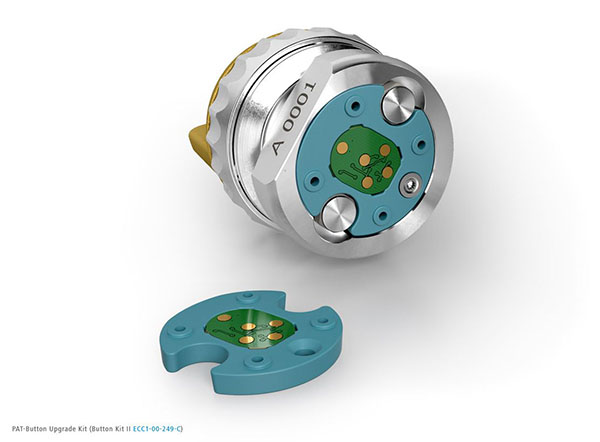

    用於PAT-Cell的PAT-Button升級組件(Button Kit II,訂購號碼:ECC1-00-0249-C)。

    受益於我們 PAT 電池測試儀的自動電池識別功能。使用 PAT-Button 升級您現有的 PAT-Cells。它包含一個治具 ID 的電子儲存晶片。

    當插入PAT電池測試儀時,PAT-治具會通過其電子簽名自動檢測並顯示在EL-軟體畫面中。透過這種方式,您總是能對您的測試電池有一個概覽。因此,在紙上或直接在電池上的筆記是多餘的。



  •

  • Our electrochemical test cell for two- and three-electrode testing.

    The PAT-Cell is a test cell for 2- and 3-electrode measurements on battery materials. It uses the modular PAT-Core concept and can therefore be used for a variety of test purposes. The cell has no wiring but is inserted directly into a PAT battery tester or connected to any commercially available battery tester / potentiostat via a PAT docking station. The easy handling is further improved by features such as the integrated PAT-Button. This patented*, electronic memory in the cell bottom enables automatic cell recognition when the cell is inserted into a PAT battery tester.
    The PAT-Cell is equally suitable for automated high-thoughput scenarios and small-scale test series.

    Sample test results
    Sample test 1: Cycling of NCM 111 vs Graphite for 2000 hours.



    Sample test 2: Cycling of NCA vs. Graphite.

    Sample setups

    Accessories
    PAT-Button Upgrade Kit for PAT-Cell (Button Kit II, Order no.: ECC1-00-0249-C)

    Benefit from the automatic cell recognition in our PAT battery testers. Upgrade your existing PAT-Cells with the PAT-Button. It contains an electronic memory chip on which the cell ID is stored.

    When inserted into a PAT battery tester, the PAT-Cell is automatically detected by its electronic signature and displayed in EL-Software. In this way, you always have an overview of your test cells. Notes on paper or directly on the cell are therefore superfluous.

  •
