PAT-Chamber-16

PAT-Chamber-16 型號:PAT-Chamber-16

Temperature-controlled docking station for PAT series test cells

  • Holds up to 16 PAT-Cells or PAT-Cell-Press for pressure monitoring
  • With data acquisition of cell current, cell voltage, half cell voltages, global temperature, individual cell pressure
  • Compatible with all of today’s potentiostats and battery testers
  • Temperature-controlled docking station for PAT series test cells

    Product description
    The patented1 PAT-Chamber-16 adds even more comfort while conducting battery tests by combining the high throughput testing abilities of the PAT-Stand-16 with a temperature-controlled cell chamber. The integrated Peltier device enables you to test at the exact temperature you need, without using an external heat chamber.
    Furthermore, it is our first high throughput docking station that is capable of utilizing both the PAT-Cell and the PAT-Cell-Press for in-situ pressure monitoring of up to 16 test cells at the same time.

    The PAT-Chamber-16 is equipped with an anti-condensation system that ensures the smooth operation of the temperature chamber. A built-in condensation trap, as well as ventilation flaps controlled by humidity sensors, effectively prevent the formation of condensation water in the cell chamber, which could otherwise accumulate during heating or cooling operations.

    All these features make the PAT-Chamber-16 the optimal choice for performing simultaneous battery tests with PAT-Cells and PAT-Cell-Press in a temperature-controlled environment.

    Just like the PAT-Stand-16, the PAT-Chamber-16 comes with a built-in data logger recording full and half cell voltages, cell current, time, global temperature and individual cell pressure.
    The PAT-Chamber-16 can be left connected permanently to all of today’s multi-channel potentiostats or battery testers. This way, you save a lot of wiring effort, because it is not necessary to renew the connection between cell and potentiostat for every battery test.

    1Patent Pending. Publ. No. US 2019/0273289 A1

    Gallery

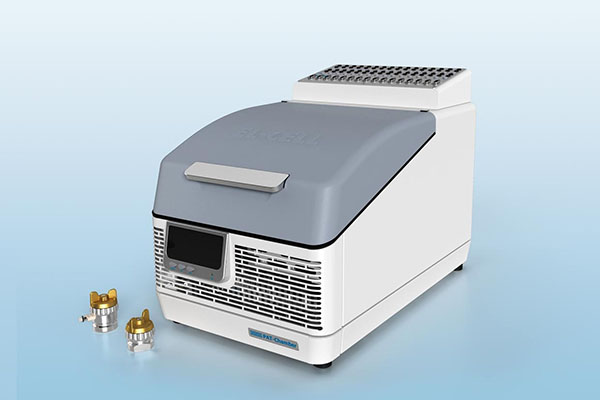

    PAT-Chamber-16 with attached PAT-Connect-16 C

    PAT-Chamber-16 with attached PAT-Connect-16 C

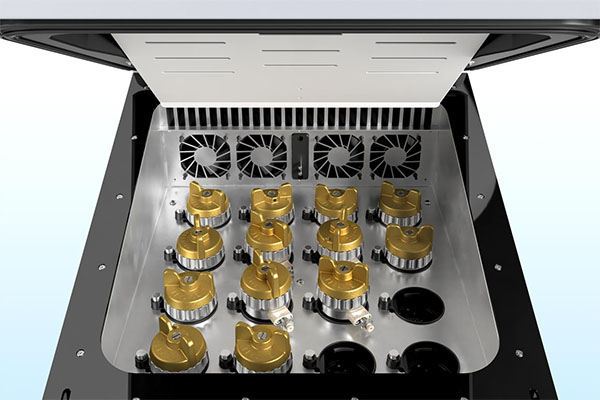

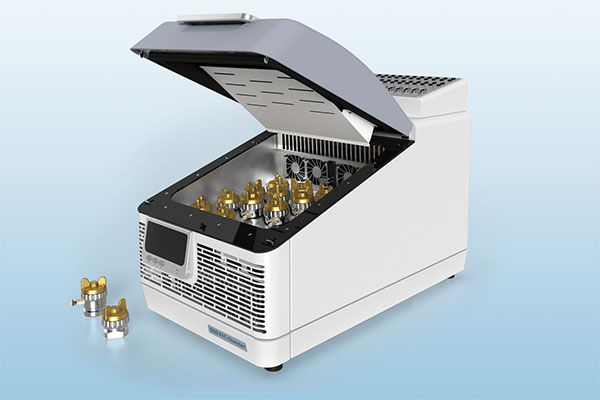

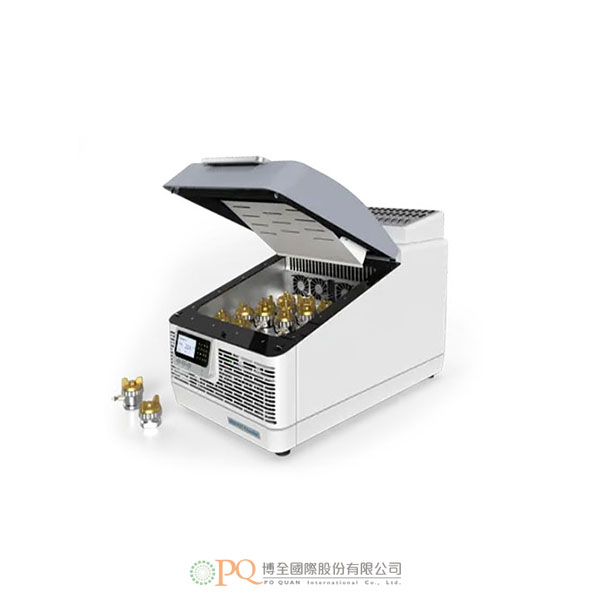

    Opened PAT-Chamber-16 with PAT-Cells and PAT-Cell-Press

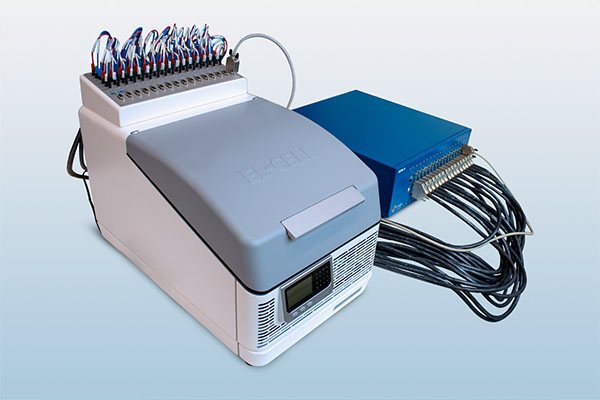

    PAT-Chamber-16 C connected to a Bio-Logic MPG-2 potentiostat.

  • Specifications

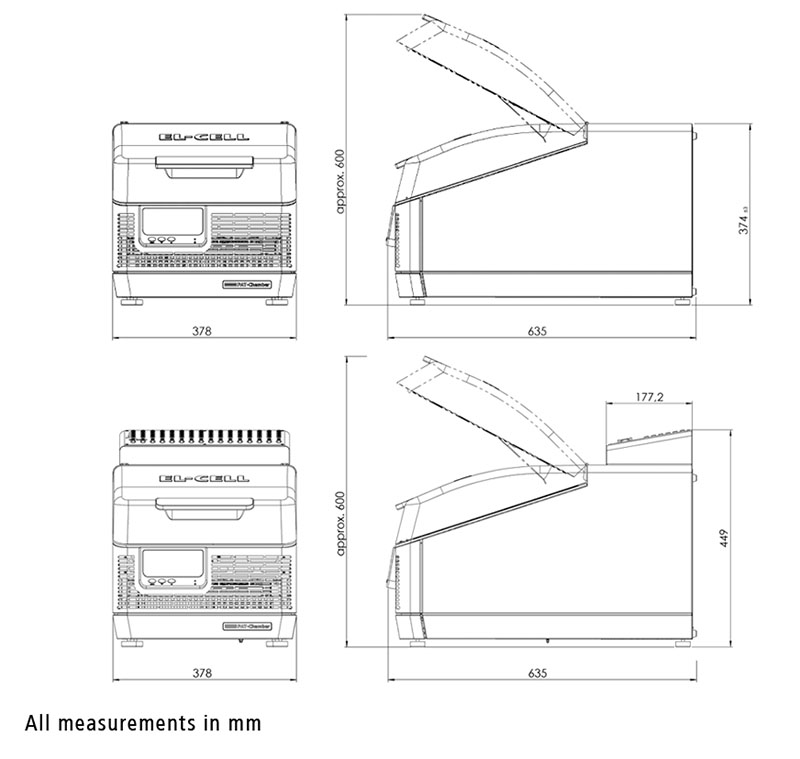

    Width 380 mm
    Depth 640 mm
    Height approx. 600 mm/375 mm (opened/closed cover)
    Height with top-mounted PAT-Connect-16 approx. 600 mm/449 mm (opened/closed cover)
    Weight 24 kg (without test cells)
    Operating temperature range 10 to 80° C

    Name # Cell connections (PAT Socket) Operational temperature Temperature controlled cell chamber Charge / Discharge / EIS* Data Logger*** Measurements in mm (Height/Width/Length) PAT-Clamp-1 1 -20 - 70 ° C   Yes   21 / 62 / 80 PAT-Stand-1 1 -20 - 70 ° C   Yes   80 / 113 / 105 PAT-Stand-4 4 -20 - 70 ° C   Yes   84 / 119 / 301 PAT-Heater-4 4   up to 200 ° C** Yes   230 / 265 / 400 PAT-Stand-16 16 -20 - 70 ° C   Yes Yes 120 / 315 / 315 PAT-Chamber-16 16   10-80 ° C Yes Yes 375 / 640 / 380

    * Compatible with any PAT series test cell
    ** 10 °C above average room temperature to 200 °C
    *** Independent data acquisition of cell data (current, full- and half-cell voltages), pressure (only PAT-Chamber-16) and temperature. EC-Link monitoring software is provided.
