PAT-Connect-16

Adapter box for flexible wiring connections

Product description
The PAT-Connect-16 is an intermediate box between the PAT-Stand-16 / PAT-Chamber-16 and your potentiostat / battery tester. It enables flexible rewiring in order to switch between operation modes (full cell, cathode half cell, anode half cell) without manipulating the cable connection between adapter box and stand / chamber.

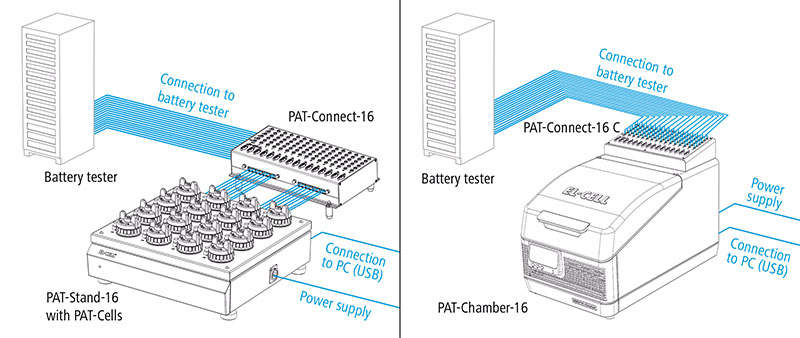

Schematic view of a connected PAT-Stand-16 and PAT-Chamber-16 with PAT-Connect-16 for flexible wiring

Gallery

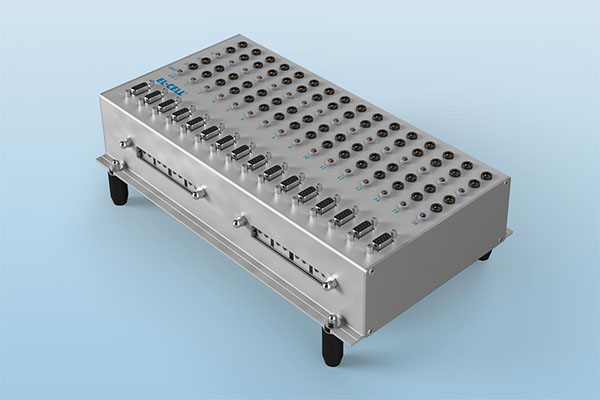

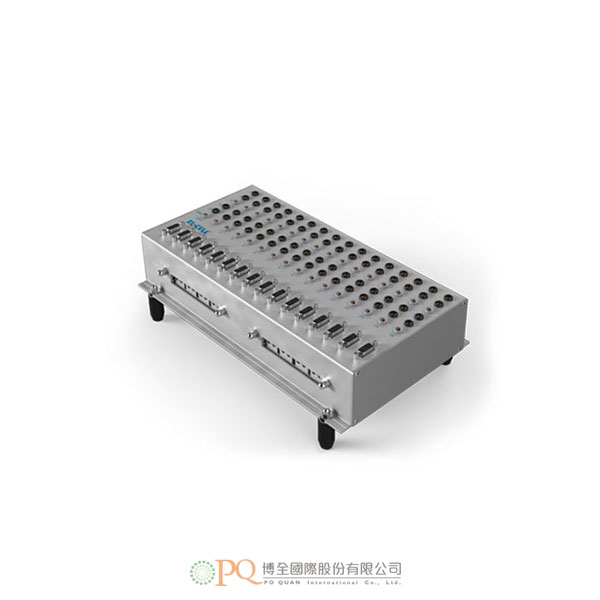

PAT-Connect-16

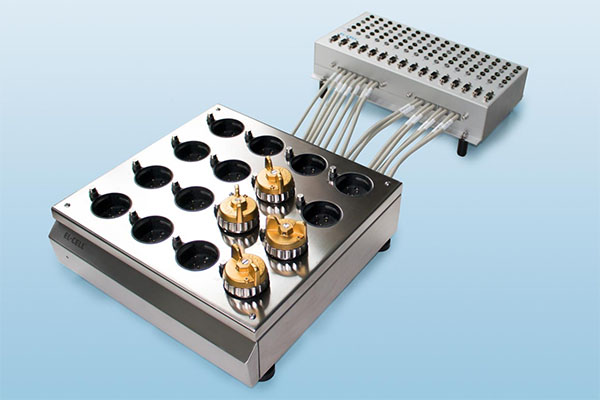

PAT-Stand-16 connected to a PAT-Connect-16.

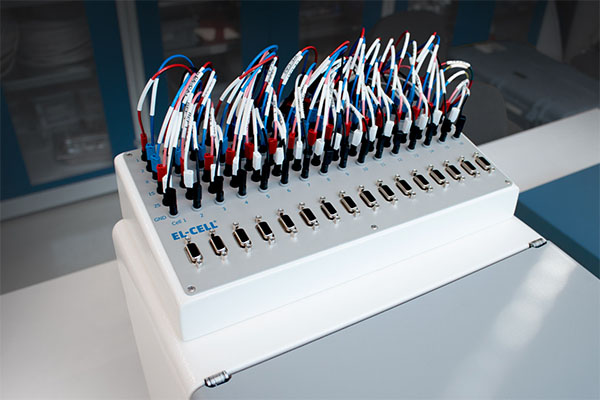

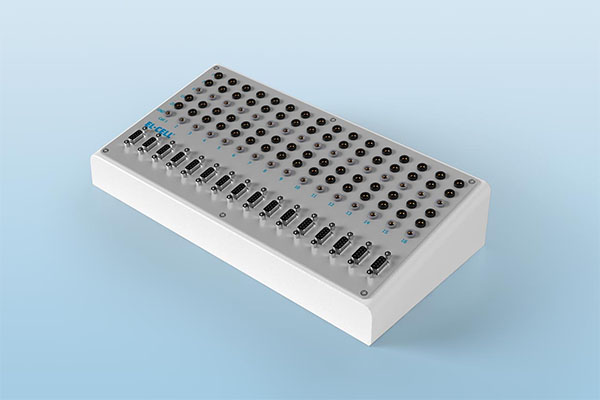

The PAT-Connect-16 C can be attached on top of the PAT-Chamber-16

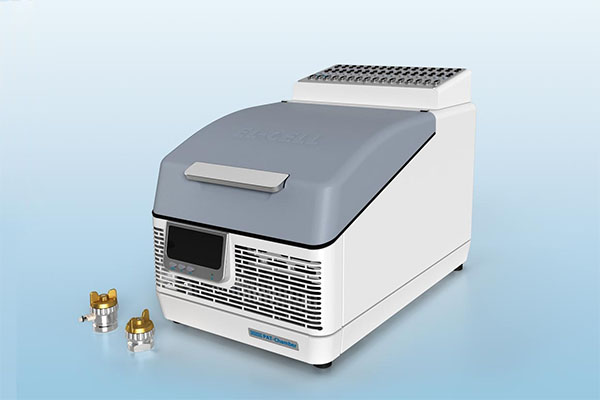

PAT-Chamber-16 with attached PAT-Connect-16 C

PAT-Chamber-16 C with connected cables.

Features

• Easy-to-access banana sockets for plug-in of the cell cables of the battery tester / potentiostat (sockets available for WE, WE-Sense, RE, CE, CE-Sense, and GND)
• Sub-D Connector for optional auxiliary signals: buffered half cell voltages, temperature, sensor signals

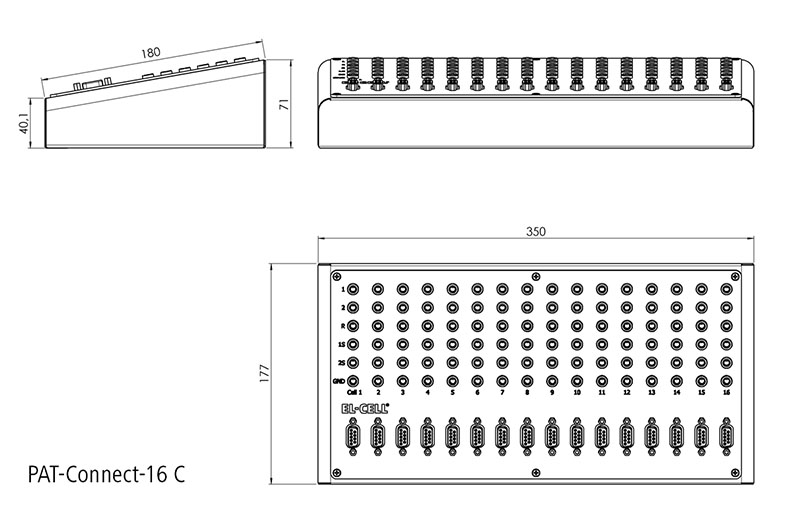

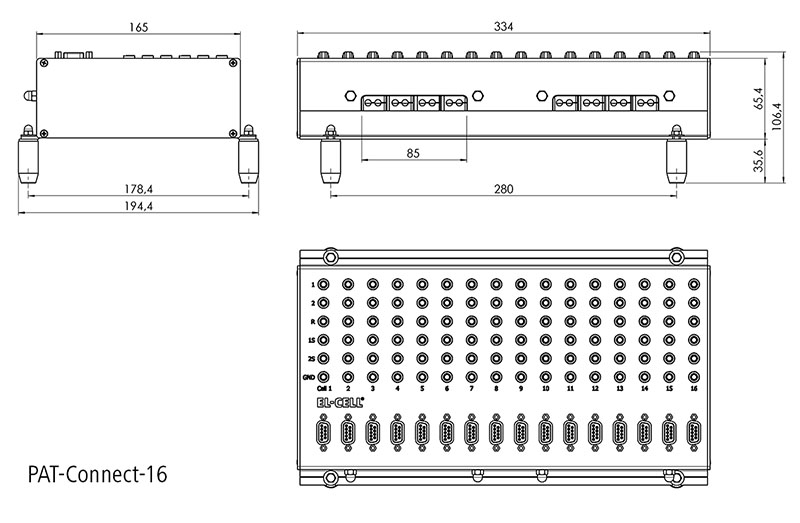

• Available as modular box (PAT-Connect-16) to be placed on the bench or fixed on the wall, or as an attachment on top of the PAT-Chamber-16 (PAT-Connect-16 C)

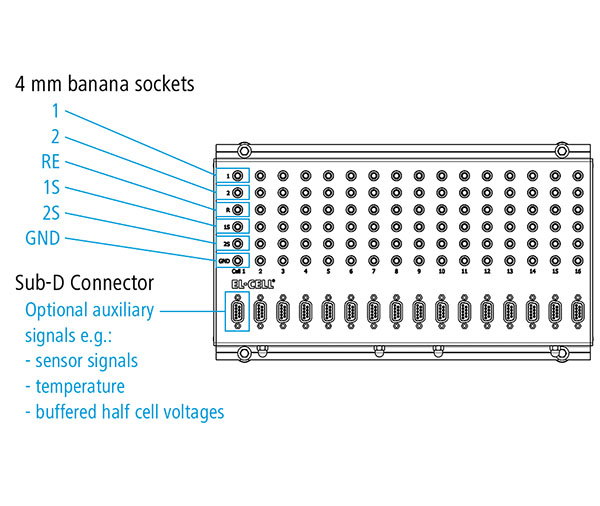

Schematic view of the PAT-Connect-16 connections
