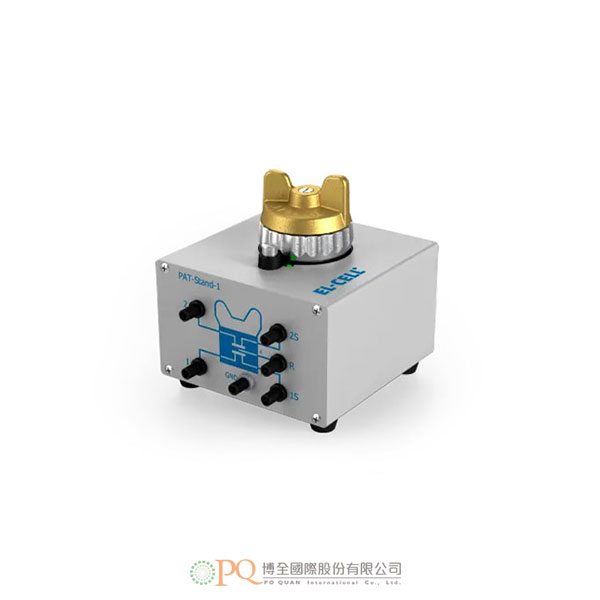

PAT-Stand-1

The ideal docking station for individual battery testing

Product description

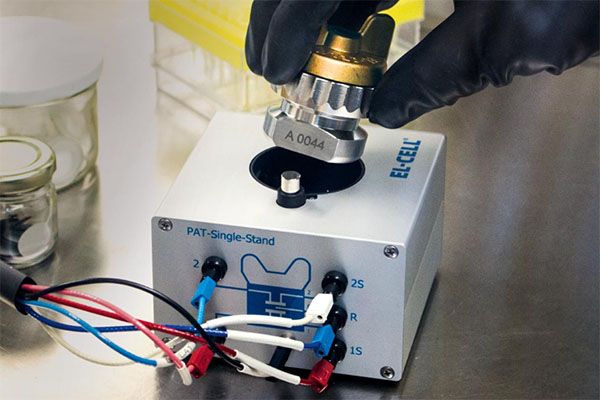

The PAT-Stand-1 is a docking station, which runs a single PAT-Cell or PAT-Cell-Press. It can be connected directly to a common multi-channel potentiostat (like the Biologic MPG-2 or VMP300) or battery tester (like the Maccor 4000) using 4mm banana sockets or a hardwired Sub-D socket. Therefore, the PAT-Stand-1 saves wiring effort, because it is not necessary to renew the connection of cell and potentiostat for every battery test.

The PAT-Stand-1 fits nicely into a usual climate chamber (for example Binder KB53), which saves space in the lab. Furthermore it is small enough to be placed inside a glovebox and allows immediate functional testing of the PAT-Cell. It is even possible to perform whole battery tests inside the glovebox.

If you want to perform individual battery tests before switching to the larger PAT-Stand-16 system, then the PAT-Stand-1 is the ideal entry docking station for you. And you can even reuse the PAT-Cell later in the larger PAT-Stand-16.

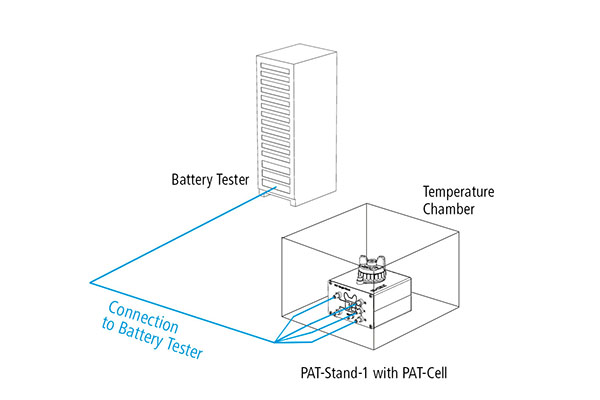

Schematic view of a connected PAT-Stand-1 testing a PAT-Cell

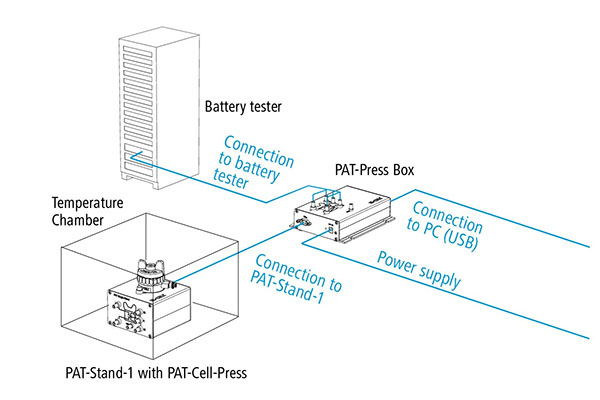

Schematic view of a connected PAT-Stand-1 testing a PAT-Cell-Press

Gallery

* Compatible with any PAT series test cell
** 10 °C above average room temperature to 200 °C
*** Independent data acquisition of cell data (current, full- and half-cell voltages), pressure (only PAT-Chamber-16) and temperature. EC-Link monitoring software is provided.
