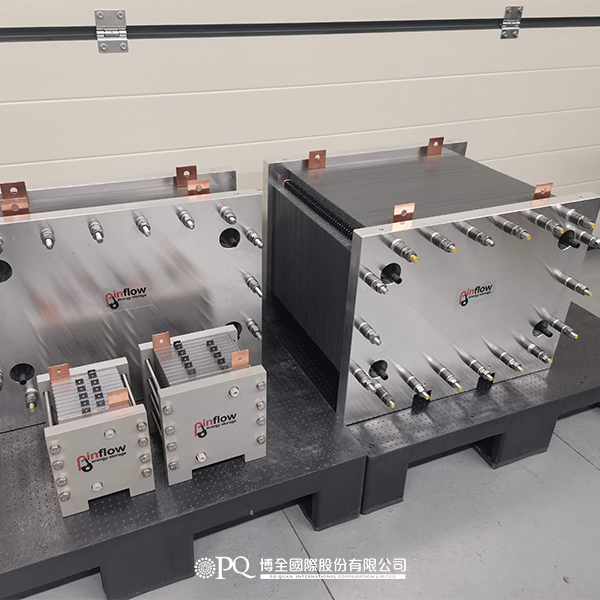

Pilot stack 20

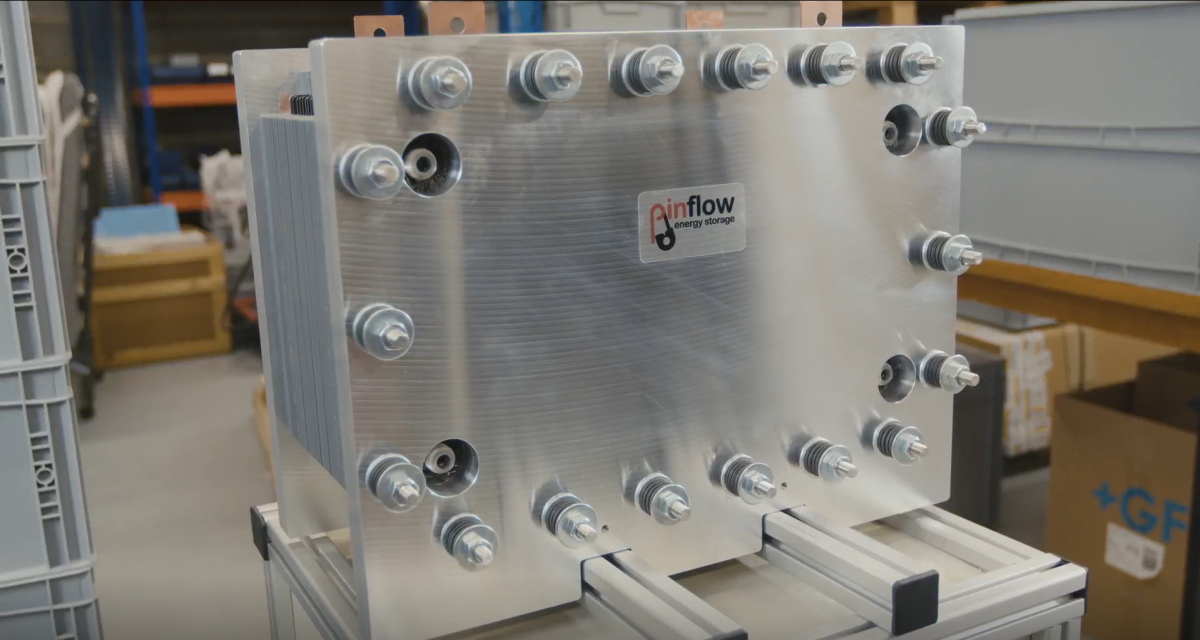

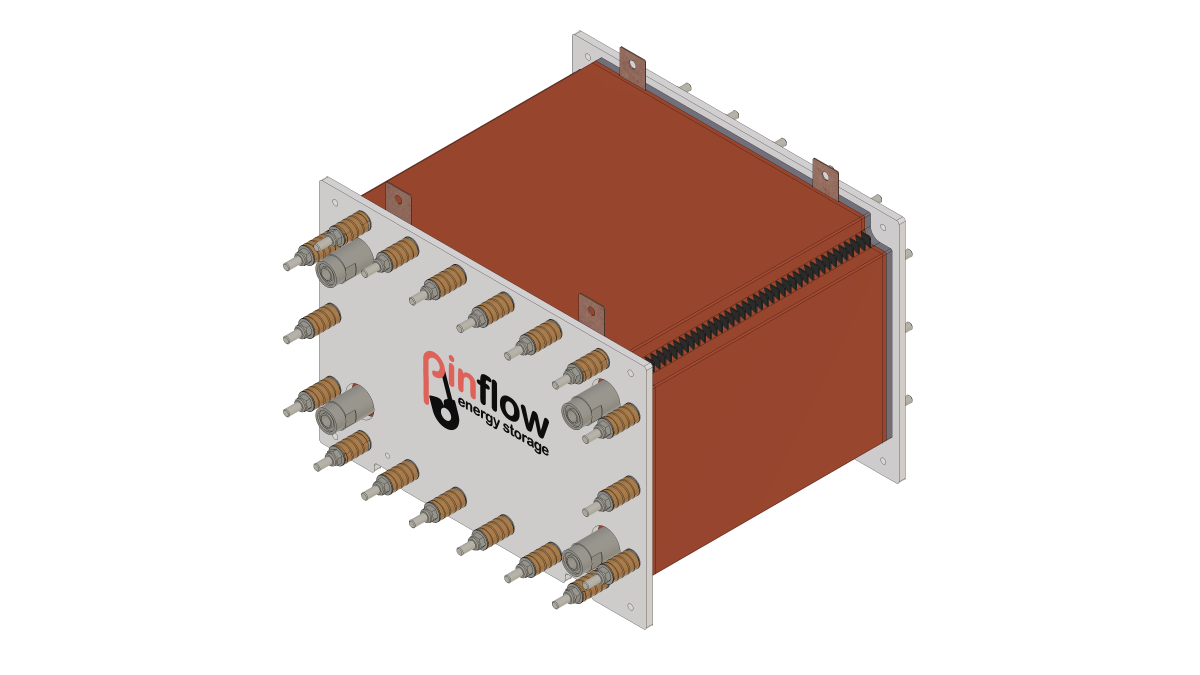

Flow electrochemical stack of 20 cells with active area of 608 cm² per cell. Electrode zone 320 × 190 × 3.5 mm per half-cell. The stack is composed of insulated aluminium end plates, copper current collectors, flat bipolar plates, and flow frames with fittings. The stack is assembled and operation-ready (felt electrodes and membranes are included).
