PURESMART手套箱-標準系列

PURESMART GLOVEBOX - STANDARD RANGE 型號:PURESMART GLOVEBOX - STANDARD RANGE

PURESMART手套箱是一個用於保護產品的可控氣氛手套箱。
它適合:

  • 用於學術研究、能源材料的開發和生產工廠。
  • 用於在超純的氣氛下保護常規需求的優質產品。
  • 配備獨立淨化裝置的手套箱
    < 1PPM H2O – O2

    PURESMART手套箱是一個用於保護產品的可控氣氛手套箱。
    它適合:

    • 用於學術研究、能源材料的開發和生產工廠。
    • 用於在超純的氣氛下保護常規需求的優質產品。

    可能的應用

    • 儲能材料的開發
    • 各項領域的備製工作
    • 秤量
    • 化學反應和合成
    • 有機金屬化學
    • 材料科學
    • 層析法
    • 嚴格條件的厭氧實驗
    • 組件組裝
    • 晶體學
    • 電池
    • 電化學試驗和裝配

    產品描述

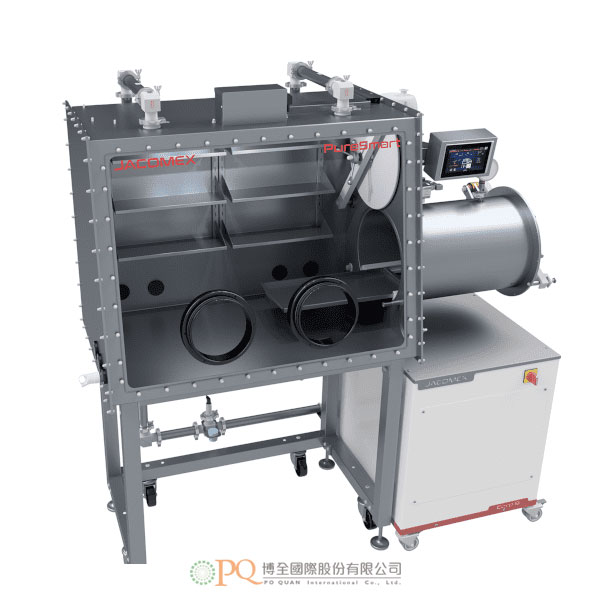

    PURESMART是一個標準的、性能齊全的手套箱。它有一個自主淨化裝置、一個沒有真空泵的自動壓力調節裝置、一個帶有21m3/h兩段式真空泵的轉移氣鎖、一個帶有自動再生的淨化裝置和H2O和/或O2分析儀。

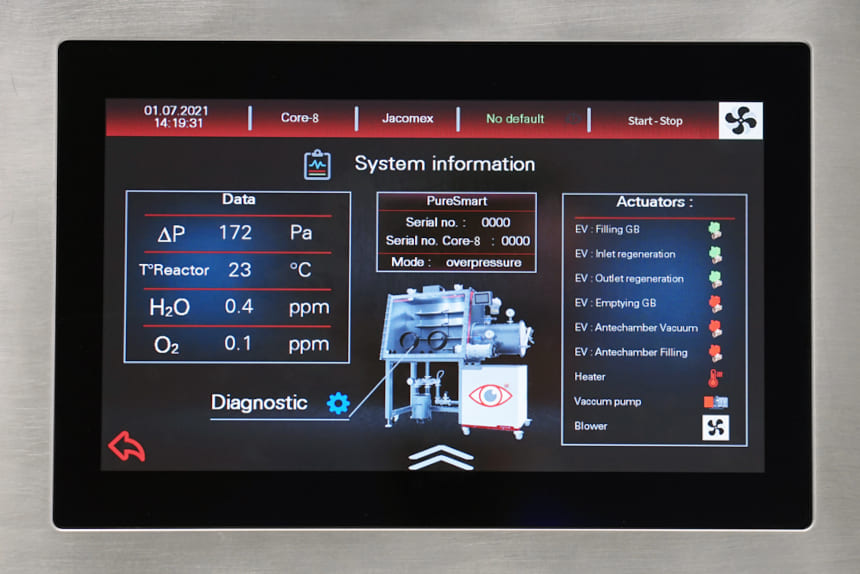

    它還配備了一個高解析度、大型彩色的7”觸控螢幕。新開發的HMI界面允許直觀和易於使用的操作指引。可調節的參數和連續記錄的繪圖數據(H2O, O2, Pr, T)使您能夠在完全安全的情況下有效工作。PLC介面整合了各項幫助和維護管理,以實現最佳使用者的操作體驗。

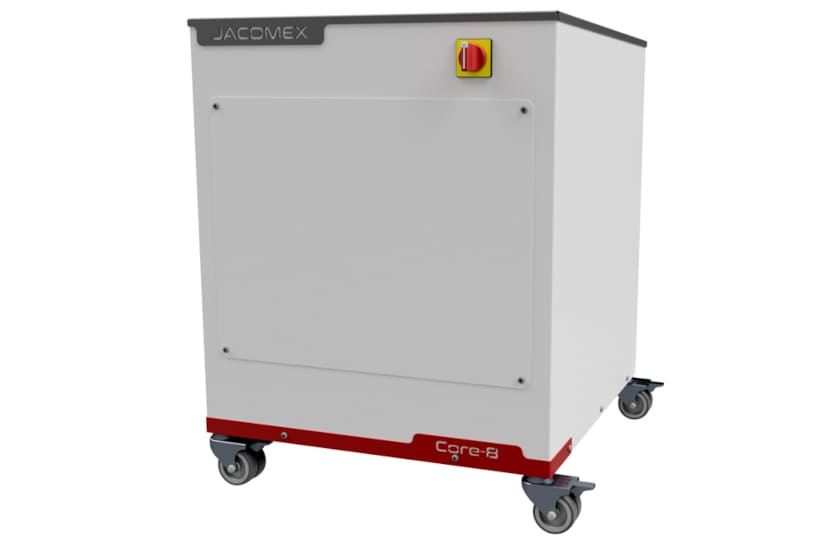

    CORE-8淨化裝置是一個H2O和/或O2的淨化系統,由Jacomex的研發和創新辦公室所完全重新設計,這一切源自於Jacomex在純惰性氣體淨化方面75年的經驗。它的高淨化能力(36L O2 - 1000g H2O)經過計算,使用戶能夠在不同的手套箱容量下完全放心地進行實驗。一如往常一樣,Jacomex獨特的技術訣竅已經為許多客戶帶來了不可否認的優勢,如氣氛的穩定性和品質、長時間的高純度,再生時間的間隔,降低維護成本和減少維護工作。

    另外,該機型配備了Jacomex獨創的生態能源模式(節能模式24/24)作為標準配置:在減少能源需求的過程中,尊重地球,並致力於防止使用過時的技術。同時,Jacomex亦是15年前全球創新的經濟運行機制的原始設計者,它始終以此為己任。這種模式的開發是為了增加零件的使用壽命,並隨著時間的推移延長其可靠性。與市場上的一些品牌不同,Jacomex的節能模式是持續運行的( 24/24 ),不僅在待機模式下(不包括操作),而且在使用中(操作期間)仍舊待命中。

    它的標准設計並不妨礙PURESMART與傳統的選項和設備一起完成最常見的應用(迷你氣閘、溶劑阱、冷凍裝置、顯微鏡、過濾器、抗靜電溶液、饋通裝置等)。

    • 根據ISO 10648-2(氧氣法),密封性等級為 1 級。洩漏率< 5.10E-4 /h (0.05 Vol%/h)。
    • 具有高耐化學腐蝕性的 EPDM 密封圈。
    • 手套箱-真空室-管道:不鏽鋼 X2CrNi 18-9(AISI304L)。
    • 可編程自動真空室 Ø 400 長度 600 mm。
    • 內部滑動托盤-可拆卸的軌道。
    • 洩漏率 < 10E-5 mbar l/s。
    • 前面板:藍寶石聚碳酸酯 ( sapphire polycarbonate )-礦物夾層玻璃。
    • 聚合物手套環 Ø 220 mm -抗靜電丁基手套。
    • 來自頂部的照明(LED 聚光燈)。
    • 6 個不銹鋼隔板(可調節高度)。
    • 用於 ISO KF40 的 230V 電氣饋通裝置及6個預留饋通通道。
    • 自動調節(正壓或負壓)。
    • 遠端獨立的 H2O - O2 淨化裝置。
    • 7 " 高解析彩色觸控螢幕:創新的直觀選單、整合指南、用戶管理、可追溯性、圖表和警報……
  • GLOVE BOXES WITH STAND-ALONE PURIFICATION UNITS
    < 1PPM H2O – O2

    The PURESMART Glove Box is a controlled atmosphere glove box for the products’ protection.

    It is suitable:

    • For academic research, start-ups and industries.
    • For the protection of quality products for conventional needs under an ultra-pure atmosphere.

    APPLICATIONS POSSIBLES

    • Storage
    • Preparation
    • Weighing
    • Chemical reactions and syntheses
    • Organometallic chemistry
    • Materials Science
    • Chromatography
    • Strict anaerobic experiments
    • Part Assembly
    • Crystallography
    • Batteries
    • Electrochemical tests and assemblies

    DESCRIPTIF DE LA BOÎTE À GANTS
    The PURESMART is a standard and fully equipped glove box with an autonomous purification unit, an automatic pressure regulation without vacuum pump, a transfer airlock with a 21m3/h double-stage vacuum pump, a purification unit with automatic regeneration and H2O and/or O2 analyzers.

    It is also fitted with a high-definition, easy-to-read 7” touch screen. The newly developed HMI interface allows intuitive and easy-to-use navigation. Adjustable parameters and continuous recording with plotted data (H2O, O2, Pr, T) allow you to work efficiently in complete safety. The PLC interface integrates support and maintenance management for optimal trouble-free operation.

    The CORE-8 purification unit is a H2O and/or O2 purification system which has been completely redesigned by our R&D and Innovation office. It has a new design based on our 75 years of experience in the purification of pure inert gases. Its high purification capacities (36L O2 – 1000g H2O) have been calculated to allow users to carry out experiments in complete peace of mind for variable glove box volumes. As usual, Jacomex’ unique brand of technical know-how has delivered undeniable advantages to many customers, such as stability and quality of atmosphere, long-lasting keeping of purity, regenerations spaced out over time, reduced operating costs and reduced maintenance.

    Naturally, the model comes equipped with our original Eco-Energy mode (Energy Saving Mode 24/24) as standard: In a process of reducing energy needs, respecting the planet and committing against obsolescence, Jacomex was the original designer of the Economic Operating Mode 15 years ago. This mode has been developed in order to increase the lifespan of the components and to prolong their reliability over time. Unlike some models on the market, our Energy Saving Mode 24/24 is continuously operational, not only in standby mode (excluding manipulations) but also in use (during manipulations).

    Its standard design does not prevent the PURESMART from being completed with traditional options and equipment for the most common applications (mini airlock, solvent trap, freezer, microscopes, filters, antistatic solutions, feedthroughs, etc.)



    • Tightness Class 1 according to ISO 10648-2(oxygen method)Leak rate < 5.10E-4/h(0.05 Vol%/h)
    • EPDM gaskets with high chemical resistance
    • Glovebox - vacuum chamber - piping: stainless steel X2CrNi18-9(AISI304L)
    • Manual vacuum chamber Ø 400 Length 600 mm
    • Inner sliding tray - Removable rails
    • Leak rate <10E-5mbar l/s
    • Front panel: sapphire polycarbonate - laminated mineral glass
    • Polymer glove rings Ø 220 mm - Antistatic gloves
    • Lighting from the ceiling (LED spotlights)
    • 6 stainless steel shelves (height-adjustable)
    • 1 electrical feedthrough 230 V + 6 blank feedthroughs for ISO KF40
    • Automatic regulation (positive or negative pressure)
    • Remote stand-alone H2O - O2 purification unit
    • 7" HD color touch screen: new intuitive menus, integrated assistance, user management, traceability, graphs and alarms……
