PhotoSyn LED photoreactor lamp module

該裝置可選擇不同的 LED 陣列，可通過專用可編程電源提供高達 700W 的輸出，也可根據要求提供訂製單元（例如 385nm、420nm）。
曲線的水（或氣）冷 LED 陣列將可用光聚焦在中央線圈反應器上，以最大限度地提高光子強度。
PhotoSyn 經過精心設計，可完全防止設備發出潛在危險的光，並受到聯鎖裝置的保護，如果在操作過程中試圖取下蓋子，則會關閉光源。此外，風扇既可防止靜態熱空氣在燈單元內積聚，又可去除可能隨時間累積的任何蒸汽。

PhotoSyn 與 Uniqsis Cold Coil（如圖所示）和 Polar Bear Plus Flow 反應器模塊相容。這些反應器模塊可單獨購買。

• UV-A/藍色、藍色和藍色/綠色/白光選項
• 運行無漏光
• 長壽命、節能的 LED 陣列光源
• 鍍鉻線圈反應器心軸，以最大限度地提高內部反射
• 線圈電抗器獨立控溫
• 700W可變輸出可編程電源
• 由 Uniqsis Ltd在英國設計和製造

Available with a selection of different LED arrays the unit can provide outputs up to 700W from the dedicated programmable power supply. Customised units (e.g. 385nm, 420nm) are available on request.
The curved, water (or gas) cooled LED arrays focus the available light on the central coil reactor to maximise the photon intensity.
The PhotoSyn has been thoughtfully engineered to completely prevent potentially hazardous light emissions from the unit, and is protected with interlocks that deactivate the light source if any attempt is made to remove the cover whilst in operation. In addition, a fan both prevents the build up of static hot air within the lamp unit and removes any vapour that may accumulate over time.

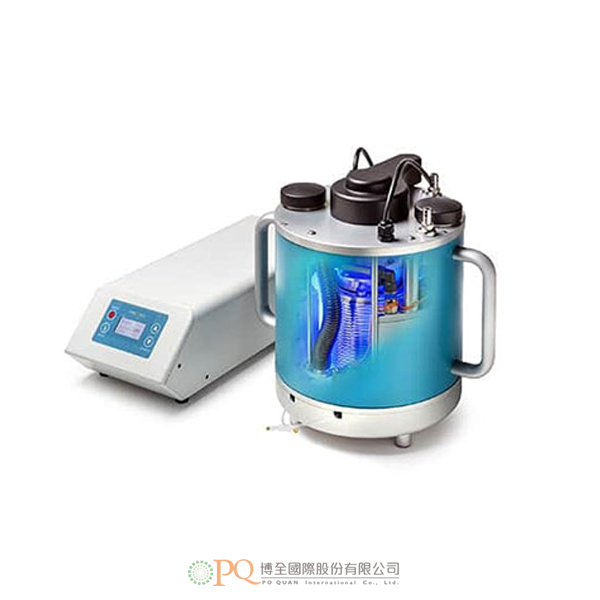

The PhotoSyn is compatible with the Uniqsis Cold Coil (shown fitted in images) and Polar Bear Plus Flow reactor modules. These reactor modules are available separately.

• UV-A/Blue, Blue & Blue/Green/White light options
• No light leakage in operation
• Long lifetime, energy efficient LED array light source
• Chromed coil reactor mandrels to maximise internal reflection
• Independent temperature control of coil reactor
• 700W Variable output programmable power supply
• Designed & manufactured in the UK by Uniqsis Ltd
