Platinum Flag Electrodes

我們有電極專家提供所有很難採購且純度非常高的材料（Pt 線、Cu 線、Pt 片）。
作為標準，我們使用 1.0 mm銅線、長度15 mm /厚度0.38 mm的白金線和 厚度0.02 mm白金片製造這些，但我們可以根據您的要求指定每種長度和厚度。
設計參數包括：

• 白金片長寬厚
• 白金絲的總長度和厚度，從底部伸出玻璃的長度
• 銅線的總長度和厚度，從頂部伸出玻璃的長度
• Pyrex 玻璃桿的總長度和直徑
• 可選：用灌封化合物支持鉑金到玻璃密封

規格（圖中型號）

• 銅線直徑：1mm
• 白金絲直徑：0.38 mm
• 玻璃體類型：耐熱玻璃
• 玻璃體外徑：4mm
• 白金片厚度：0.1 mm

We have electrode specialists that supply all the materials (Pt wire, Cu wire, Pt flag) that are incredibly high purity, which are difficult to source otherwise.

As standard, we build these with 1.0 mm Cu wire, 15mm length/0.38 mm thickness Pt wire and 0.02 mm Pt flag thickness but we can specify each length and thickness to your requirements.

Design parameters include:

• Length, width and thickness of the platinum flag
• Total length and thickness of the platinum wire, length that protrudes out of the glass from the bottom
• Total length and thickness of the copper wire, length that protrudes out of the glass from the top
• Total length and diameter of the Pyrex glass stem
• Optional: to back-up the platinum to glass seal with a potting compound

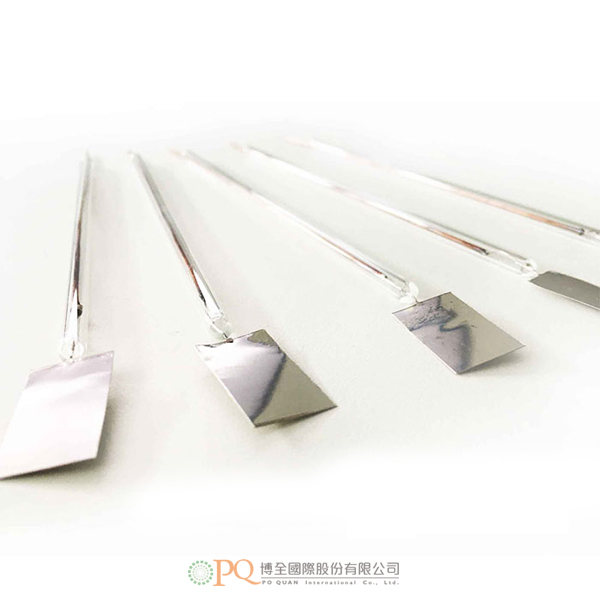

Specification (of models pictured)

• Copper wire diameter: 1 mm
• Platinum wire diameter: 0.38 mm
• Glass body type: Pyrex
• Glass body outer diameter: 4 mm
• Platinum flag thickness: 0.1 mm
