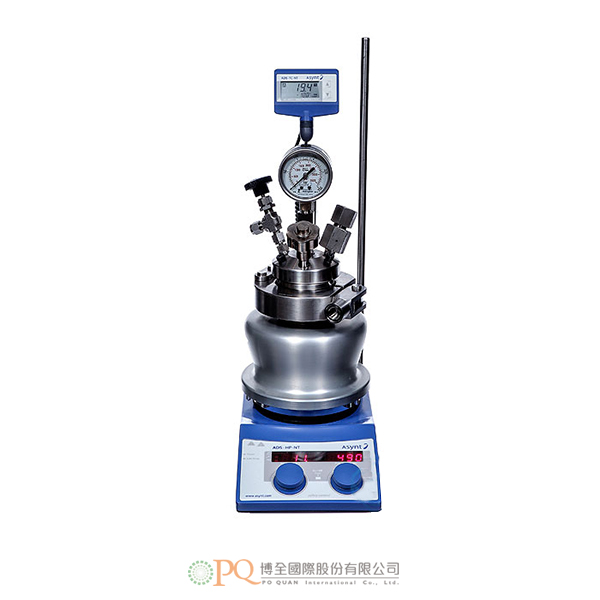

PressureSyn – High safety reactor

為什麼PressureSync如此獨特？

壓力同步器的容器容積為125 mL，最大工作壓力為180 bar，溫度為200°C，通過任何加熱板加熱，並透過磁性攪拌子攪拌，其重要之處在於獨特的安全鑰匙和鎖定夾機制，不允許當系統中存在任何壓力時移除容器蓋。 每個安全鑰匙和夾子都是獨一無二的，因而確保它不能用備用鑰匙打開，並且包括在拆下蓋子之前自動釋放任何殘餘壓力的功能。 這種高安全的單實驗室壓力反應器還具有一個配有爆破片和泄壓閥的雙泄壓系統。
PressureSync實驗室壓力反應器設計用於任何磁性加熱板攪拌器； 一個特殊的DrySyn轉接板可以將反應器安全地放置在加熱板攪拌器上； 也具備了溫度傳遞的增强和從標準3mm熱電偶控制外部溫度的能力。

• 在英國設計、製造和測試，採用可追溯認證的316不銹鋼。
• 最大工作壓力為180 bar和200°C
• 標配泄壓閥和爆破片。
• 獨特易於安裝和拆卸帶鎖扣但在壓力下無法拆卸的支架。
• 帶內置鑰匙的泄壓針閥，僅在釋放任何殘餘壓力後才可用於解鎖卡扣。
• 適合特殊設計用於200°C的標準磁力攪拌器加熱板的DrySync轉接器底板。
• 透過磁力攪拌子進行攪拌。
• 帶有用於連接至鋼制壓力管的進氣/排氣閥壓縮配件。
• 附加用於客戶自己附件的1/8 npt埠（備用）。
• 可選備件包，包括5個額外的o形密封圈和壓縮配件。
• 可選數位溫度計和延長線。

Why is PressureSyn so unique?

With a vessel volume of 125 mL, maximum working pressure of 180 bar and temperature of 200 °C with heating via any hotplate & stirring via magnetic flea, what’s significant about PressureSyn is the unique safety key & locking clamp mechanism that does not allow the vessel cover to be removed whilst any pressure remains in the system. Every safety key & clamp are unique therefore ensuring that it cannot be undone with a spare, and include features which automatically release any residual pressure prior to removing the cover. This high-safety single laboratory pressure reactor also features a double pressure relief system with both a bursting disk & pressure relief valve.

PressureSyn laboratory pressure reactors are designed to work on any magnetic hotplate stirrer; a special DrySyn adapter plate allows the secure placement of the reactors on the hotplate stirrer; together with enhanced temperature transfer and the ability to control external temperature from a standard 3 mm thermocouple.

• Designed, manufactured & tested in the UK, from traceable certificated 316 stainless steel.
• Maximum working pressure of 180 bar & 200 °C
• Comes with a pressure relief valve, and a bursting disk as standard.
• Unique bracket with locking clasp so the system can be easily set up and disassembled but cannot be disassembled when under pressure.
• Pressure relief needle valve with a built in key that can be used to unlock the clasp only once any residual pressure is released.
• Fits a specially designed DrySyn adapter base plate for use on a standard magnetic stirrer hotplate, to 200 °C.
• Agitation via magnetic stirring bar.
• Gas inlet/outlet valve with compression fitting for attaching to steel pressure tubing.
• Additional (spare) 1/8th npt port for customers own attachments.
• Optional spares pack which comprises 5 additional o ring seals and compression fittings.
• Optional digital thermometer and extension cable.
