THERMOSTATIC CALIBRATORS

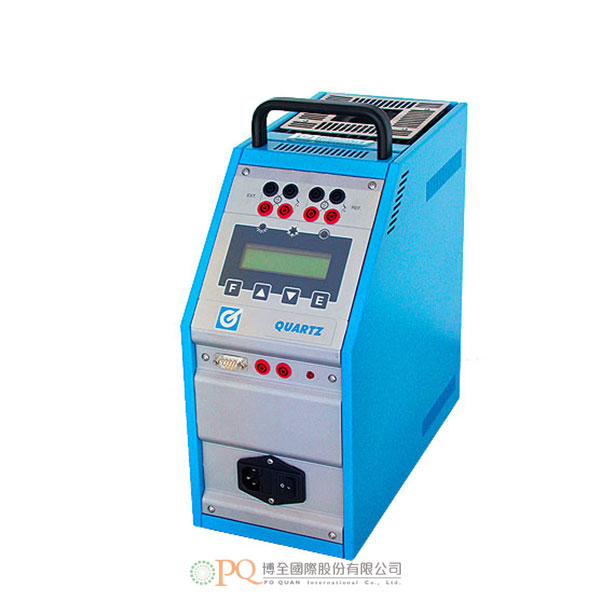

THERMOSTATIC CALIBRATORS 型號:QUARTZ
  • Temperature range: -30 °C ÷ 150 °C
  • Precision: ±0,15 °C
  • Hole depth: 130 mm
  • Hole diameter: 35 mm
  • Operating range:-30 °C / +150 °C, (-22 °F / 302 °F)

    Applications:

    Control and calibration of temperature sensor, in the laboratory and in the field, in conformity with ISO 9000 standards.

    Control of thermostats.

    Automatic computer-controlled calibrations.

  • Operating range --30 °C ÷ +150 °C (*) , (-22 °F / 302 °F ) (*)
    Stability ±0,03 °C (at 0 °C) ± 0.05 °F (at 32 °F)
    Uniformity (at 0 °C) -Radial ±0,02 °C (at 40 mm),± 0.03 °F (at 1.5 in.)
    Uniformity (at 0 °C) -Axial ±0,1 °C (for 60 mm from the bottom)
    ± 0.1 °F (for 2.3 in. from the bottom)
    Maximum heating time 20 °C/min (68 °F/min)
    Maximum cooling time 22 °C/min (71.6 °F/min)
    Display resolution All temperatures: 0,1 °C / 0,01 °F
    Display accuracy ±0,15 °C (± 0.27 °F)
    Units of measurement °C - °F - K
    Serial interface RS232
    Well diameter 35 mm (1.3 in.)
    Insert hole depth 130 mm (5.1 in.)
    Power supply 115 or 230 VAC - 50/60 Hz
    Electric power 300 W
    Calibrator size 160 x 340 x 330 mm, (6.2 x 13.3 x 12.9 in.)
    Calibrator weight 8 kg (17 lb)
    Shipping weight with carrying case 17 kg (37 lb)

    (*) Room temperature 20 °C
