專業級高性能紅外線熱像儀

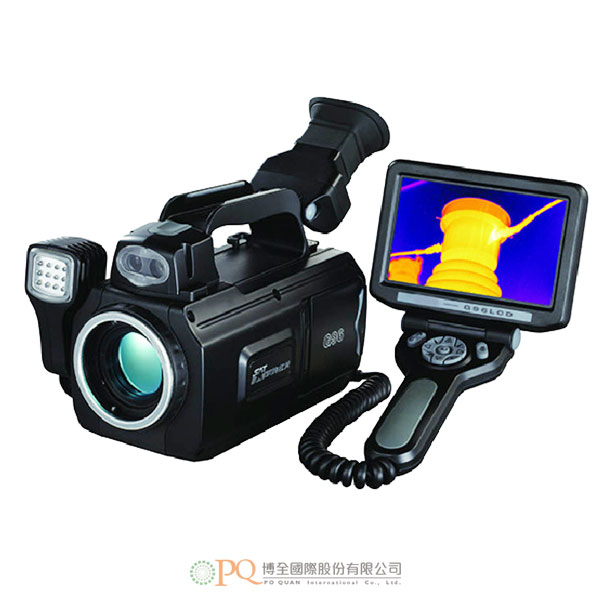

SATIR High Performance Thermography Camera 型號:SATIR G96
為SATIR最新的一款高性能紅外線熱像儀,能提供非常詳細清晰的紅外線熱影像與影片,適合任何專業的紅外線熱像檢測工作。
    • 為SATIR最新的一款高性能紅外線熱像儀,能提供非常詳細清晰的紅外線熱影像與影片,適合任何專業的紅外線熱像檢測工作。
    • 具有640x480像素解析度紅外線偵測器,可產生307,200個像素,為SATIR目前所提供的最高像素紅外線熱像儀,具有極高的熱靈敏度50mK(0.05℃@30℃,50/60Hz),能顯示優異品質的銳利影像。
    • 提供三種影像模式:紅外線熱影像(IR)、可見光影像(CCD)及熱融合影像(DuoVision)- 使用者可移動重疊的紅外線熱影像及更改透明度,以滿足其應用需求。
    • 可在16GB微型記憶卡儲存全長6小時的非輻射熱影像影片,影片儲存格式為MP4,可使用一般的影音媒體播放器播放。
    • 影像及溫度數據,可透過USB線實時傳輸到個人電腦或平板電腦。
    • 標準配備電池充電器、電池、SD記憶卡、校正證明、藍牙耳機、USB導線。
    • 主要特點:
      • 640x480像素解析度紅外線偵測器。
      • 3種影像模式:紅外線熱影像(IR)、可見光影像(CCD)及熱融合影像(DuoVision)。
      • 配備一個帶有遠控裝置的5吋可拆卸式LCD螢幕,使用者可以更容易地在危險區域進行長時間的測量工作。可拆卸式遠控裝置可使用右手或左手操作,並可完全使用攝影機的功能。
      • 提供可增加影像品質與視野(FOV)的可選購的鏡頭:近攝鏡頭、7°、12°、48°。
      • 雷射瞄準點。
      • 豐富的一系列測量工具:包括10個可移動的點溫、自動冷/熱點溫、1個輪廓線溫度、溫度警報、等溫線及4個框溫。
    • 偵測器解析度:640x480像素。
    • 熱靈敏度(N.E.T.D): 50mK@30°C。
    • 偵測器類型:非致冷式焦平面陣列微輻射熱測定器。
    • 光譜範圍:8 – 14 um。
    • 視野(FOV):24°x18°/0.3m。
    • 對焦:手動、電動、自動。
    • 溫度測量範圍:-20°C~+ 600°C,可選購達2,000°C。
    • 精度:±2°C或±2% rdg.。
    • 測量工具:10個可移動的點溫、自動冷/熱點溫、輪廓線溫度、等溫線、4個框溫。
    • 溫度警報:有。
    • 測量修正:環境溫度、放射率修正、距離、相對濕度。
    • 機殼防護等級:IP54。
    • 輸入電源:DC 8V-11V。
    • 視訊輸出:NTSC(60Hz)或PAL(50Hz)複合視訊。
    • 鍵盤:有。
    • 選購鏡頭:近攝鏡頭、7°、12°、48°。
    • 詳細規格、配件、軟體及選購,歡迎洽詢。
    • The SATIR G96 is our latest Performance Thermal Imaging camera, which will deliver very clear and detailed images and video that is suitable to be used in any professional thermal imaging survey.
    • The SATIR G96 camera has 640x480 IR detector which generates 307200 pixels which is currently the highest number of pixels that our thermography camera can offer. It also has a very high thermal sensitivity of 50Mk (0.05°c @ 30°c, 50/60Hz) which allows the G96 to display the sharpest images with superior quality.
    • The SATIR G96 Infrared camera offers three imaging modes these are Infrared (IR), Digital (CCD) AND Duo Vision, which allows the user to move the infrared image overlay and alter the transparency to suit their application.
    • The user can save a total of 6 hours’ non-radiometric thermal video footage onto a 16GB micro SD Card. The thermal video footage is saved in MP4 format, which can be played on any generic media player.
    • Images from the G96 can be transferred with temperature data in real time to a PC or tablet via a USB Cable.
    • The G96 has a 5” Detachable LCD Screen which makes working in hazardous areas and on long thermal surveys easier for the user. The detachable remote control unit can be operated in either the left of right hand and allows full access to the camera functions.
    • The G96 comes with a wide range of measurement tools which include 10 movable spots, auto hot/cold spot, 1 line profile, temperature alarms isotherm and 4 area boxes.
    • The SATIR G96 has optional lenses available that increase the image quality and Field of View (FOV), currently the following lenses are available on request, 9° 3x, 12°2x, 48° increases the field of View.
    • When buying the SATIR G96 you will receive a battery charger, batteries, SD card, Calibration Cert, Bluetooth headset and USB Cable.
    • Features:
      • 640x480 IR Detector
      • IR/CCD/Duo Vision
      • 5” Detachable LCD Screen with remote control
      • Optional Lenses Available
      • Laser Pointer
      • Measurement Tools
    • Resolution: 640x480
    • Thermal Sensitivity (N.E.T.D): 50mK@30°C
    • Detector Type: FPA, uncool microbolometer
    • Spectral Range: 8 – 14 um
    • Field of View: 24°x18°/0.3m
    • Focus Mechanism: Manual/Motorized/Auto
    • Temperature Measurement Range: -20°C~ +600°C, up to +2000°C
    • Accuracy: ±2°C or ±2 of readings
    • Measurement Tools: 10 movable spots,auto hot/cold spot, line profile, isotherm, 4 area boxes
    • Temperature Alarms: Yes
    • Measurement Corrections: Ambient Temperature, Emissivity Correction, Distance, Relative Humidity
    • Encapsulation: IP54
    • Power Input: DC 8V-11V
    • Video Output: NTSC (60hZ) or PAL (50Hz) Composite Video
    • Keypad: Yes
    • Available optional Lenses: Close-up, 7°, 12°, 48°
    • Please feel free to contact for detailed specifications, accessories, software and options.
