車用夜視紅外線熱像儀

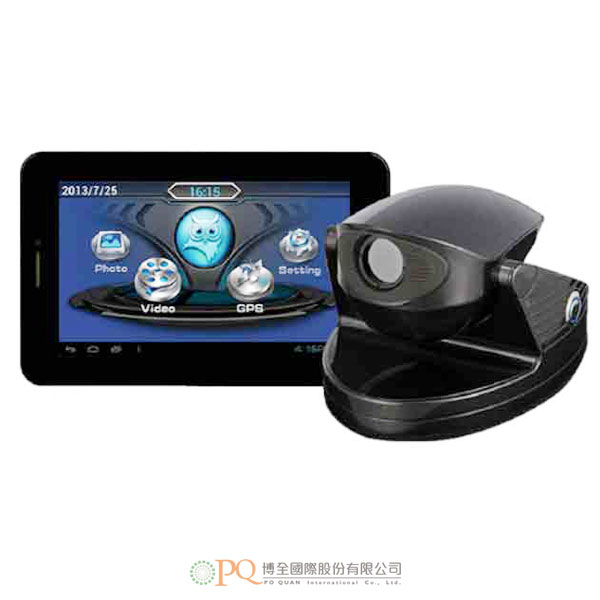

SATIR Bestselling Vehicle Thermal Vision IR Camera 型號:SATIR NV618W (La Moon)
具有384x288像素解析度紅外線偵測器,可產生110,592個像素,能提供理想清晰的道路的紅外線熱影像 - 比一般汽車頭燈所能照射到的更遠距離的廣角影像。
    • 為SATIR最暢銷的一款紅外線汽車攝影機,可加強夜間的行車安全。
    • 具有384x288像素解析度紅外線偵測器,可產生110,592個像素,能提供理想清晰的道路的紅外線熱影像 - 比一般汽車頭燈所能照射到的更遠距離的廣角影像。
    • 高解析度影像,能清楚指示道路情景及接近車輛的危險狀況,提高駕駛員的覺察,以便及時反應。
    • 由於具有磁吸式固定座/架,適合安裝在車輛的任何位置,不會損傷車輛,而能安全的固定攝影機。
    • 採用先進的技術輔助駕駛員,為駕駛員提供關於周圍情境的多一層覺察。
    • 凸顯危險,讓駕駛員得依情況採取對應的行動;紅外線技術能避免迎面而來的眩光,使駕駛更安全。
    • 無線網路技術,無需使用導線,而能將攝影機與平板電腦連線。
    • 採用全雙工無線傳輸技術,可透過無線網路傳輸影像及控制命令。
    • 具IP65防護等級 - 防塵及耐受任何方向的低壓水注,在潮濕或塵土飛揚的環境中行駛,特別有幫助。
    • 標準配備攝影機與平板電腦的電池及充電器、16G TF卡、軟體、USB導線。
    • 主要特點:
      • 384x288像素紅外線偵測器。
      • 容易安裝:磁吸式固定座/架。
      • 行人偵測。
      • 在平板電腦上顯示資料。
      • 在攝影機與平板電腦之間以無線網路連線。
      • 在不良行駛條件中的駕駛員輔助模式。
      • IP65防護等級。
    • 熱像儀:
      • 解析度:384x288像素。
      • 視野:28°x 21°。
    • 機殼防護等級:IP65。
    • 機身:
      • 平板電腦尺寸:7吋。
      • 螢幕解析度:1024x600像素。
      • 重量:
        • 平板電腦:440g。
        • 攝影機:770g。
      • 體積:
        • 平板電腦:200x120x15mm。
        • 攝影機:175x115x102mm。
    • 電源輸入:DC10-30V。
    • 詳細規格、配件、軟體及選購,歡迎洽詢。
    • The SATIR NV618W is SATIR’s bestselling IR automotive camera that enhances safe driving at night.
    • The NV618W has a 384x288 IR detector which generates 110592 pixels which will generate a good clear infrared image of the road.
    • The NV618W will provide a wide-angle view of the road, at a further distance than normal headlights.
    • High resolution image provides clear indication of the road layout and hazards which are approaching the vehicle. Improving awareness so the driver can react to the conditions.
    • The NV618W (La Moon) can be mounted anywhere on the vehicle as it has a magnetic mount that will not damage the vehicle but will secure the camera safely.
    • The La Moon gives driver assistance as it uses advance technology to provide additional awareness to the driver of their surroundings.
    • The La Moon system highlights hazards so the driver can take the correct action if required. The infrared technology prevents oncoming glare which makes for safer driving.
    • The wireless technology means no cables or leads are needed to connect the camera to the tablet.
    • The NV618W (La Moon) uses full duplex wireless transmission technology which allows images and control commands to be transferred wirelessly.
    • The NV618W IR automotive camera has an encapsulation of IP65 which make it dust proof and it can withstand low pressure water jets from any direction which is useful when driving in wet or dusty environments.
    • When buying the SATIR NV618W you will receive the charger and batteries for the camera and tablet, 16G TF Card, software and a USB Cable.
    • Features:
      • 384×288 IR Detector
      • Easy Installation –  Magnetic Mount
      • Pedestrian Detection
      • Data displayed on Tablet
      • Wireless Connection between Camera & Tablet
      • Driver Assistance during poor driving conditions
      • IP65
    • Thermal Camera:
      • Resolution: 384x288
      • Field of View: 28°x 21°
    • Environmental:
      • Encapsulation: IP65
    • Physical Characteristics (Camera Body):
      • Tablet Touch Screen Size: 7 Inches
      • Screen Resolution: 1024X600
      • Weight:
        • Tablet: 440g
        • Camera: 770g
      • Dimensions:
        • Tablet:200x120x15mm
        • Camera: 175x115x102mm
    • Interfaces:
      • Power Input: DC10-30V
    • Please feel free to contact for detailed specifications, accessories, software and options.
