入門級平板電腦型紅外線熱像儀

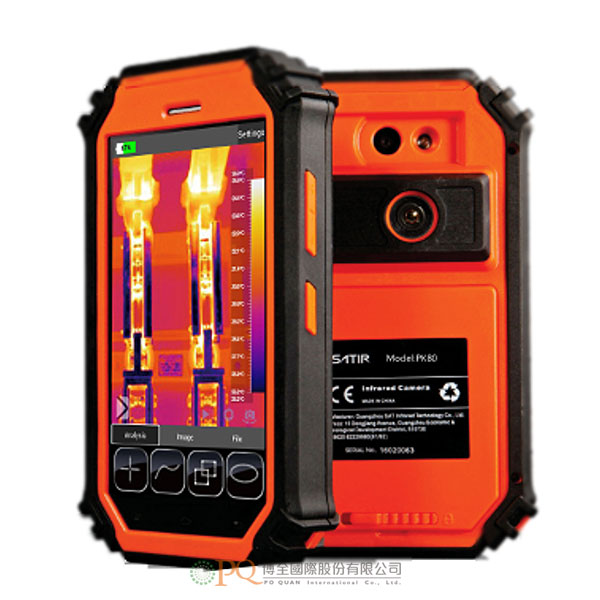

SATIR Entry Level Thermal Imaging Tablet 型號:SATIR PK80
為全球首款適合熱顯像檢測初學者使用的入門級平板電腦型紅外線熱像儀,由於足夠強固的設計,也適合在工業環境中用於進行基本的熱顯像勘測。
    • 為全球首款適合熱顯像檢測初學者使用的入門級平板電腦型紅外線熱像儀,由於足夠強固的設計,也適合在工業環境中用於進行基本的熱顯像勘測。
    • 具備80x80像素解析度紅外線偵測器,可產生6,400個像素,能提供理想的影像。
    • 內建800萬像素數位相機,可拍攝高畫質數位影像,可用於比較數位影像與紅外線熱影像,在進行檢測時,極有幫助。
    • 配備5.5吋電容式觸控螢幕,可提供非常鮮明的影像,讓使用者在縮小放大之間,看見更豐富的影像細節。
    • 在Android平台上操作,使用者可從Google Play取用大量精選的應用程式,這對於在Google Play擁有自己應用程式的公司而言,很有用處。
    • 可連接無線網路,使用者可輕易快速地透過電子郵件或發送訊息應用程式,傳送紅外線熱影像資料。
    • 可拍攝紅外線測量的靜態影像及影片,並可實時透過無線網路傳輸。
    • 配備多功能USB連接介面,一個便利的連接,可用於將熱像儀平板電腦充電或傳輸資料。
    • 標準配備電池、電池充電器、USB連接導線、手腕帶及螢幕保護貼。
    • 主要特點:
      • 80x80像素解析度紅外線偵測器。
      • 800萬像素數位相機(CCD)。
      • 5.5吋電容式觸控螢幕。
      • Android平台,中文操作介面。
      • 無線網路連線。
      • 可錄製紅外線熱影像影片及拍攝靜態圖像。
      • 多功能USB連接介面(充電及傳輸資料)。
    • 解析度:80x80像素。
    • 熱靈敏度(N.E.T.D): ≤ 0.10°C@30°C。
    • 視野(F.O.V.)/最小焦距:20°x 20°/0.5m。
    • 對焦:固定對焦。
    • 溫度測量範圍:-20°C~+160°C。
    • 精度:±2°C,±2% rdg.。
    • 測量工具:3個可移動的點溫、自動冷/熱點溫捕捉、等溫線分析、1個圓圈溫度分析、1個框溫分析。
    • 存放溫度:0°C~+50°C。
    • 機殼防護等級:IP54。
    • 詳細規格、配件、軟體及選購,歡迎洽詢。
    • The SATIR PK80 is the world’s first entry level thermal imaging tablet that is suitable for beginner thermographers but is also ruggedised enough to be used in industry for light thermal imaging surveys.
    • The SATIR PK80 has an 80x80 IR detector which generates 6,400 pixels, giving the user a good image for an entry level thermal camera.
    • The PK80 also can take high quality digital images as it comes with an 8 megapixel digital camera. This can be a very useful when carrying out a survey, as the user can then compare the thermal image with the digital image.
    • The PK80 displays images on a 5.5" capacitive touch screen which gives the user very clear images and allows them to zoom in or out of an image to see the finer details.
    • The PK80 operates on a Android platform, this allows users to access the large selection of apps from the Google Play store. This can be of benefit to companies who have their own apps available on the Google Play store.
    • The PK80 can connect to Wi-Fi, this allows the user to send over thermal imaging data quickly and easily via email or messaging apps.
    • The PK80 can take still images and video of thermal surveys which can be transfer in real-time due to the Wi-Fi connection.
    • The multifunction USB connection allows users to charge their thermal imaging tablet while also transferring data in one convenient connection.
    • When buying the PK80 you will receive batteries, battery charger, USB Connection cable, wrist strap and screen protector.
    • Features:
      • 80x80 IR Detector Resolution
      • 8 MP CCD (Digital) Camera
      • 5.5" Capacitive Touch Screen
      • Android Operating System
      • Wi-Fi Connection
      • Video & Still Recording
      • Multifunction USB Connection
    • Resolution: 80x80
    • Thermal Sensitivity (N.E.T.D): ≤ 0.10°C@30°C
    • Field of View/Min Focus Field: 20°x 20°/0.5m
    • Focus Mechanism: Fixed Focus
    • Measurement:
    • Temperature Range: -20°C~+160°C
    • Accuracy: ±2°C, ±2% of readings
    • Measurement Tools: 3 movable spots, auto hot/cold spot capture, isotherm analysis, circle analysis, rectangular analysis
    • Environmental:
    • Operating Temperature: 0°C~+50°C
    • Encapsulation: IP54
    • Please feel free to contact for detailed specifications, accessories, software and options.
