安全|監視應用手持式紅外線熱像儀

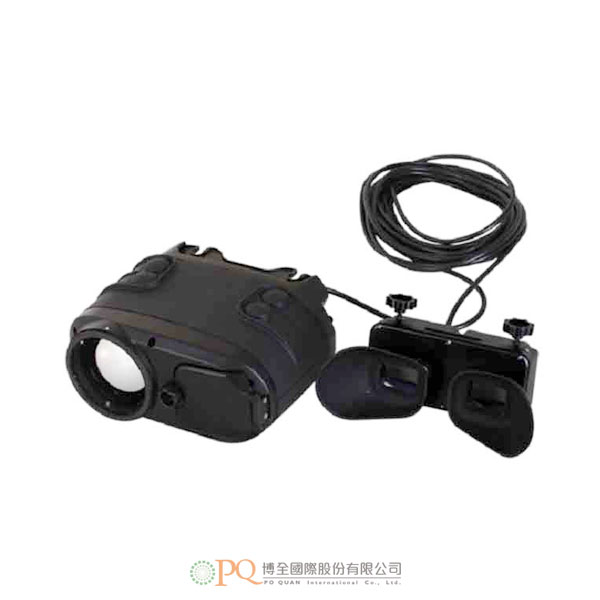

SATIR Handheld Infrared Camera for Security & Surveillance Applications 型號:SATIR UTR 50|UTR 75
UTR50具有384x288像素偵測器,可產生110,592個像素;UTR75具有640x480像素偵測器,可產生307,200個像素,二種機型都能展現良好的影片與影像品質,偵測器解析度的類型,依應用及需求而選擇。
    • UTR50具有384x288像素偵測器,可產生110,592個像素;UTR75具有640x480像素偵測器,可產生307,200個像素,二種機型都能展現良好的影片與影像品質,偵測器解析度的類型,依應用及需求而選擇。
    • UTR系列為理想的手持式紅外線熱像儀,適合在安全觀察的行動中使用,例如邊防控制。
    • 可以採用2種極性控制模式“白熱及黑熱”拍攝紅外線熱影像及錄製影片,這是在歐洲最常用於安全及監視應用的模式。
    • 配備50mm自動對焦鏡頭,也可選購100mm鏡頭。
    • 具有一個分離式雙目觀景窗,可依應用需求而拆下。
    • 使用記憶卡儲存影像與影片:可儲存最多60,000張影像或5小時影片。
    • 配備帶有6m延長導線的遠端控制裝置,可在需要時,從遠處操控攝影機。
    • 2倍電子變焦,可將目標看得更清楚;提供選購鏡頭:24°、9°。
    • 使用可充電電池,在執行安全觀察勤務時,可依需要,輕易更換電池。
    • 電池續航力至少6小時,啟動時間不到20秒,是一款快速操作的安全及監視應用的手持式紅外線熱像儀。
    • 標準配備電池、充電器、數據連線導線。
    • 主要特點:
      • 高靈敏度非致冷式焦平面陣列偵測器:機型UTR50為384x288像素解析度,機型UTR75為640x480像素解析度。
      • 50mm自動對焦鏡頭。
      • 數位儲存影像及影片。
      • 可選購100mm鏡頭。
      • 可拆卸式雙目觀景窗。
      • 帶有6m延長導線的遠控裝置。
    • 解析度:
      • UTR50:384x288像素。
      • UTR75:640x480像素。
    • 熱靈敏度(N.E.T.D):< 50mk。
    • 偵測器類型:非致冷式焦平面陣列。
    • 光譜範圍:8~14µm。
    • 對焦:自動。
    • 視野(FOV):
      • UTR50:11° x 8.2°。
      • UTR75:12.2° x 9.1°。
    • 對焦範圍:10~∞。
    • 數位變焦:2x。
    • 記憶體儲存(2GB):
      • 20,000張影像。
      • 1小時影片。
    • 機殼防護等級:符合軍規MIL-STD-810。
    • 機身重量:< 1.5kg。
    • 機身體積:175 x 196 x 85mm。
    • 取景器(觀景窗):高解析度灰階OLED,雙目型。
    • 電源輸入:7.2V鋰離子可充電電池。
    • 功耗:< 3W。
    • 電池續航力:> 6小時。
    • 啟動時間:< 20秒。
    • 視訊輸出:標準PAL模式。
    • 控制模式:控制鍵。
    • 明亮度/對比度控制:手動/自動。
    • 偵測距離:
      • 人:750m。
      • 車輛:2500m。
    • 識別距離:
      • 人:187m。
      • 車輛:625m。
    • 詳細規格、配件、軟體及選購,歡迎洽詢。
    • The UTR50 has a detector resolution of 384x288 which generates 110592 pixels. The UTR75 has a detector resolution of 640x480 which will generate 307200 pixels. Both models will deliver good video and image quality but the type of detector resolution will depend on your applications and requirements.
    • The UTR Series is an ideal handheld IR camera that is suitable to be used on the move for security observations such as border control.
    • It can take both thermal images and video recordings in two polarity control modes i.e. White Hot and Black Hot which are the most frequently modes use for security & surveillance applications across Europe.
    • It has an 50mm auto focusing lens. There is also a 100mm lens available on request.
    • It has a separate binocular viewfinder which can also be detached depending on the user application.
    • It has SD card which can store images and video, which can hold up to 60,000 images or 5-hour video time.
    • It has a remote control with a 6m extension cable which allows control of the camera at a distance if needed.
    • The UTR Series has an electronic zoom of 2x which allows the user to see their object closer. The following optional lenses are available on request; 24°, 9°.
    • The UTR has a rechargeable battery which can be easily replace with another battery if needed while carrying out security observation.
    • The UTR has an operation time of >6 hours and a start-up time of <20s which makes the UTR series a quick operating IR Handheld Camera for security & surveillance applications.
    • When buying the UTR Series, you will receive, batteries, charger, data connection cable and in the future if you require further accessories, please check out our online store.
    • Features
      • High Sensitivity 384x288 UFPA (with UTR75 640X480 option)
      • Auto focusing 50mm lens
      • Digital storage of images and video
      • Optional 100mm lens
      • Detachable bi-ocular
      • Remote control with 6m extension cable
    • Resolution:
      • UTR50: 384x288
      • UTR75: 640x480
    • Thermal Sensitivity (N.E.T.D): <50mk
    • Detector Type: UFPA
    • Spectral Range: 8~14µm
    • Focus Mechanism: Auto
    • Field of View (FOV):
      • UTR50: 11° x 8.2°
      • UTR75: 12.2° x 9.1°
    • Focus Range: 10~∞
    • Digital Range: 2x
    • Memory Storage:
      • ~20,000 images
      • ~1 Hour Video (with 2 G storage space)
    • Encapsulation: MIL-STD-810
    • Physical Characteristics (Camera Body):
    • Weight: < 1.5KG
    • Dimensions: 175 x 196 x 85mm
    • Viewfinder: High-resolution Grey Scale OLED, Binocular
    • Power Input: 7.2 li-ion Rechargeable Battery
    • Power Consumption: < 3W
    • Battery Operation Time: > 6 hr
    • Start-up Time: < 20s
    • Video Output:Standard PAL Mode
    • Control Mode: Control Key
    • Brightness/Contrast Control: Manual/ Auto
    • Detection Range:
      • Human/Metre: 750
      • Vehicle/ Metre: 2500
    • Identify Range:
      • Human/Metre: 187
      • Vehicle/Metre: 625
    • Please feel free to contact for detailed specifications, accessories, software and options.
