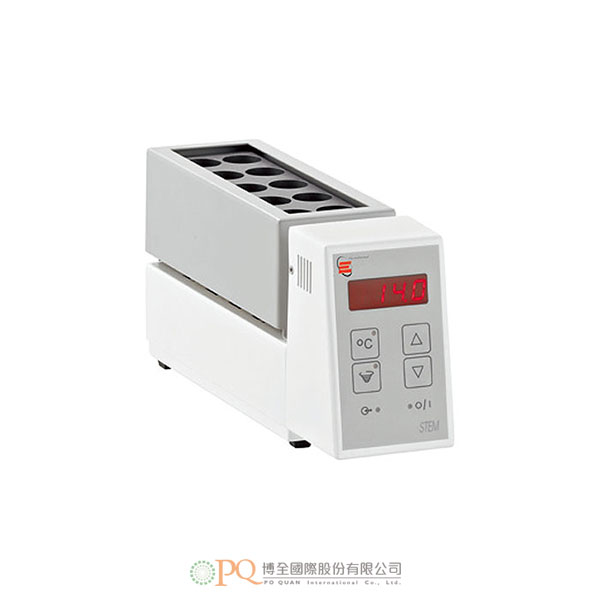

STEM RS1000 Reaction Station

STEM RS1000 Reaction Station 型號:STEM RS1000
  • 10 position reaction station
  • Designed for 24mm/ 25mm diameter vessels
  • Can accommodate 16mm and other diameter vessels with appropriate adaptor sleeves
  • Sample sizes from 1ml to 25ml
  • Controlled temperature range from ambient +5°C to 150°C
  • Powerful stir speed from 400 to 2000rpm
  • Manual and external control via the RS232/RS485 interface ports
  • Compact footprint for easy integration onto a robotic platform
  • Low running costs for RS1000 as only 300W power consumption
  • The STEM RS1000 Reaction Station has 10 positions that can be programmed to run at the same temperature and stirring rate simultaneously. It can be used for a wide range of applications from simple synthesis in the laboratory to process optimisation in industry.

    Key features

    • 10 position reaction station
    • Designed for 24mm/ 25mm diameter vessels
    • Can accommodate 16mm and other diameter vessels with appropriate adaptor sleeves
    • Sample sizes from 1ml to 25ml
    • Controlled temperature range from ambient +5°C to 150°C
    • Powerful stir speed from 400 to 2000rpm
    • Manual and external control via the RS232/RS485 interface ports
    • Compact footprint for easy integration onto a robotic platform
    • Low running costs for RS1000 as only 300W power consumption
  • Model RS1000
    Stirred Positions 10
    Tube Diameter 24 or 25mm
    Sample Volume 1 - 25ml
    Stir speed range 400 to 2000rpm
    Soft start (to full ramp) Adjustible 0 - 10 mins
    Temperature Range + 5 to 150°C
    Temperature Stability ± 0.5°C
    Time to max temperature 15 mins
    Dimensions 80 x 150 x 305mm
    Shipping weight 4kg
  • The STEM RS1000 Reaction Station has 10 positions that can be programmed to run at the same temperature and stirring rate simultaneously. It can be used for a wide range of applications from simple synthesis in the laboratory to process optimisation in industry.

    Key features

    • 10 position reaction station
    • Designed for 24mm/ 25mm diameter vessels
    • Can accommodate 16mm and other diameter vessels with appropriate adaptor sleeves
    • Sample sizes from 1ml to 25ml
    • Controlled temperature range from ambient +5°C to 150°C
    • Powerful stir speed from 400 to 2000rpm
    • Manual and external control via the RS232/RS485 interface ports
    • Compact footprint for easy integration onto a robotic platform
    • Low running costs for RS1000 as only 300W power consumption
  • Model RS1000
    Stirred Positions 10
    Tube Diameter 24 or 25mm
    Sample Volume 1 - 25ml
    Stir speed range 400 to 2000rpm
    Soft start (to full ramp) Adjustible 0 - 10 mins
    Temperature Range + 5 to 150°C
    Temperature Stability ± 0.5°C
    Time to max temperature 15 mins
    Dimensions 80 x 150 x 305mm
    Shipping weight 4kg
