便攜式三相工作標準和電能質量分析儀

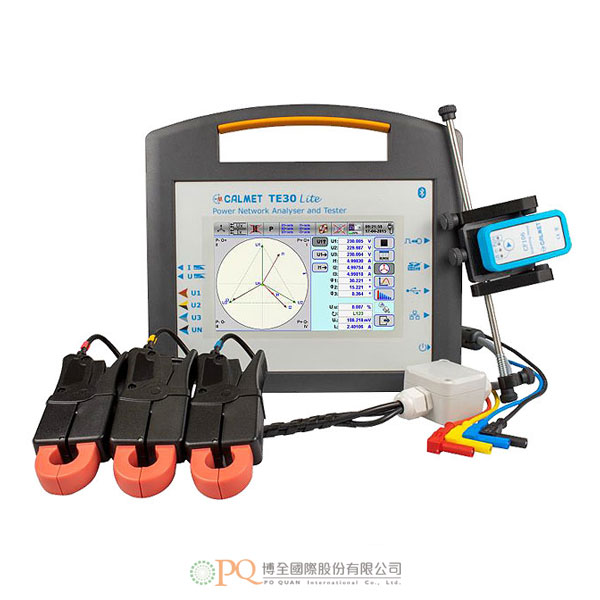

Portable Three-Phase Working Standard and Power Quality Analyzer 型號:TE30 Lite
Three phase network analyzer and tester of electricity meters and instrument transformers class 0.2. Three phase tester of current transformers. It makes possible electricity meters testing on the site or in the laboratory.
    • Measure of power network parameters in class 0.2
    • Voltage ranges 0.05…600V and 0.1…40kV
    • Current ranges 0.01…120(1200)(30/300/3000)A
    • Testing of electricity meters
    • Testing of CT/PT Transformers (option)
    • Recording and analyze of power quality (option)
    • Vector, oscilloscope, bar and trend charts of three phase network
    • Powering from 85…265V AC power network and external battery (powerbank)
    • Large 7" color Touchscreen and Calmet TE30 PC soft
    • Data readout and meter control via USB, Ethernet and Bluetooth
    • Data storage in SD flash memory card up to 32GB
    • Calibration Certificate
  • General parameters

    Weight and dimensions (width x height x depth)

    1.6kg and (270x245x90)mm

    Power supply

    85…265V / 47...63Hz / 8VA or DC 5 … 12V/1.5A

    Safety: Isolation protection and Measurement Category

    IEC 61010-1 and 300V CAT III

    Degree of protection

    Device is placed in IP40 housing

    Operation / storage temperature

    -10…+50°C / -20…+60°C

    Operation / storage relative humidity

    <90% @ +0...+30°C and <75% @ +30...+50°C / <95% @ 0...+50°C
