多通道高速暫態波形記錄器

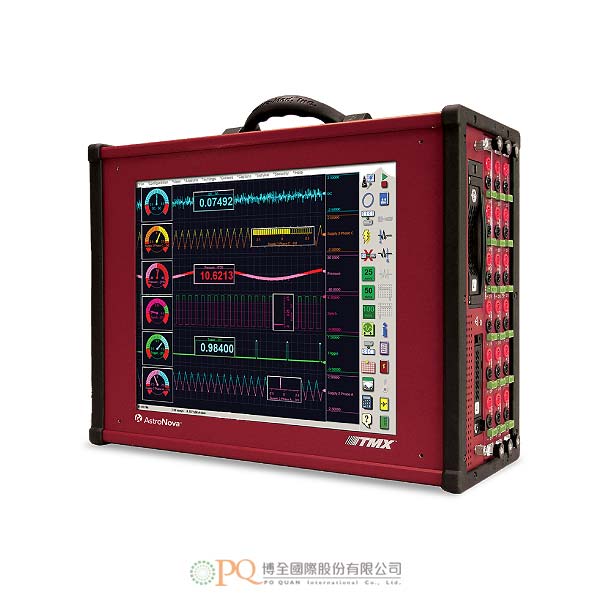

AstroNova TMX® All-in-One Data Acquisition System 型號:TMX®
◎透過Windows®10具加強的安全性。
◎搭載選購的50MHz波形卡,可實現60倍更快速的取樣率。
◎TMX®操作簡單,無須複雜的組態設定,配備一個高解析的17吋觸控顯示幕,加上預設的設定選項,使測試的設定,輕而易舉!
    • 透過Windows®10的加強的安全性。
    • 搭載選購的50MHz波形卡,可實現60倍更快速的取樣率。
    • TMX®操作簡單,無須複雜的組態設定,配備一個高解析度的17吋觸控顯示幕,加上預設的設定選項,使測試的設定,輕而易舉!
    • 使用TMX,你將能立即開始運作!
      • 17吋高解析LCD觸控顯示幕。
      • 可擴充到最多96個通道。
      • 專屬資料擷取行動硬碟1TB(可選購固態硬碟)。
      • 800kHz取樣率/通道(最高96個通道)及50 MS/s,可選購2通道波形卡。
      • 100kHz頻寬。
    • TMX®亮點:
      • 運用「立即可用」的功能,快速擷取、檢視及分析資料。
      • 配備高解析17吋觸控螢幕,供您檢視資料及設定系統。
      • 提供多種輸入模組,可滿足您對特定測試的需求。
      • 無需額外的硬體,透過內建的信號調節功能,可簡化接線需求。
      • 採用最新的Windows®10作業系統,可達到更大的安全性。
      • 使用移動式硬碟,可輕易更換硬碟,以記錄分類及不分類的資料。
      • 依IRIG或GPS輸入,進行同步及為擷取的資料加上時間標記。
      • 搭載選購的50MHz波形卡,可達60倍更快速的取樣率。
      • 在擷取新資料的同時,可查看歷史資料。
      • 可跟隨您的資料,同步進行錄音及錄影(選購)。
    • 其它特點:
      • 先進的觸發功能:可依輸入信號的變化,開始及停止記錄。採用AND/OR運算子,以確保只在需要的事件觸發。
      • 內建的波形模式及智慧型觸發功能,可進行長期趨勢記錄及同時擷取高速事件。2通道波形卡,也可將2個通道的取樣率擴展到50MHz。
      • 每個資料擷取,最多可有4個獨立的取樣率(多重取樣率),藉著將較高的取樣率分配到關鍵信號,可優化檔案大小。
      • 循環資料緩衝區,可用於設定及記錄大量的前置觸發資料。
      • 提供先進的濾波選購,例如低通、高通、帶通及帶止濾波。

  • TMX機箱

    最大的模組數

    TMX:3個;TMX-E:6個;TMX-R:6個

    最大的類比波形數

    48個(選購擴充機箱時為96個)

    事件輸入端(TTL)

    16個

    彩色顯示幕

    類型

    主動式矩陣彩色LCD(TFT)

    檢視範圍

    對角17吋(43.2cm)

    解析度

    1280 x 1024像素

    觸控

    全螢幕電阻式

    符合標準/操作環境

    操作溫度

    0°C~40°C

    操作濕度

    10%~90% RH,無凝露

    存放溫度

    -20°C~60°C

    耐撞擊

    MIL-STD-810F Method 516.5, Procedure I

    耐振動

    MIL-STD-810F Method 514.5, Procedure I

    符合安規

    IEC 61010-1:2010(3rd edition)
    IEC 61010-2-030:2010
    EMC: IEC 61326-1 Ed. 2.0(2012)

    機身

    機殼

    鋁及鎧裝端蓋

    體積

    高36.8cm x 寬48.3cm x 深19.1cm(不含提把)

    重量

    16.78kg(含3個模組)

    介面

    乙太網路

    千兆乙太網路(10/100/1000 Base-T),RJ-45連接頭

    VGA

    用於在外部顯示器顯示資料

    USB 3.0

    用於連接外部周邊設備及檔案匯出,每台4個連接埠

    擴充埠

    用於連接選購的TMX-E

    系統電源

    輸入電壓範圍

    102~264VAC或24VDC@11A

    頻率範圍

    47Hz~63Hz

    功耗

    300W

    • 詳細的模組規格及選購,歡迎洽詢。
    • Enhanced security via Windows® 10
    • 60X faster sampling rates with optional 50MHz Scope Card
    • With the TMX®, ease of use is a given. There’s no need for complicated configurations. The TMX features a high resolution 17″ touch screen display, with pre-defined set up options, making test setup a breeze.
    • With the TMX, you will be up and running in no time!
      • 17″ LCD High-Resolution Touch Screen Display
      • Up to 96 Channels
      • Dedicated 1 TByte Removable Data Capture Hard Drive (Solid State Drives optional)
      • 800 kHz Sample Rate/Channel (up to 96 channels) & 50 MS/s with optional 2-channel scope card
      • 100 kHz Bandwidth
    • Product Highlights:
      • Take advantage of ready-to-use capabilities to acquire, visualize and analyze data quickly
      • Review data and configure system on high-resolution 17” touch display
      • Customize to your specific needs with a variety of input modules
      • Eliminate additional hardware and simplify wiring with built-in signal conditioning
      • Gain greater security with the latest Windows® 10 Operating System
      • Easily exchange drives for recording of classified and non-classified data with removable hard drives
      • Synchronize and timestamp acquired data based on IRIG or GPS inputs
      • Acquire 60X faster sampling rates with optional 50MHz scope card
      • Review historical data while acquiring new data
      • Record audio and video synchronized with your data (optional)
    • Features include:
      • Advanced triggering capabilities to start and stop recording based on changes in your input signals. Use AND/OR operators to ensure that you trigger only on events needed
      • Embedded scope mode with intelligent triggering allows for long term trending and simultaneous capture of high speed events. The 2 channel scope card also extends sampling rate to 50MHz for both channels
      • Multiple rates of up to 4 independent sampling rates per acquisition to optimize file sizes by assigning higher sample rates to critical signals
      • Circular data buffer allows you to set and record large amounts of pre-trigger data
      • Advanced filtering options such as low pass, high pass, band pass and band stop filtering

  • TMX Chassis

    Maximum Number of Modules

    3 TMX
    6 TMX-E
    6 TMX-R

    Maximum Analog Waveforms

    48 for the TMX Base System
    96 with optional expansion unit

    Event Inputs (TTL)

    16

    Color Display

    Type

    Active matrix color LCD (TFT)

    Viewing Area

    13.3” H x 10.6” W, Diagonal 17" (43.2 cm)

    Resolution

    1280px x 1024px

    Touch

    Full screen, resistive

    Compliance / Environmental

    Operating Temp.

    0°C to 40°C (32°F to 104°F)

    Operating Humidity

    10% to 90% , non condensing

    Storage Temp.

    -20°C to 60°C (-4°F to 140°F)

    Shock

    MIL-STD-810F Method 516.5, Procedure I

    Vibration

    MIL-STD-810F Method 514.5, Procedure I

    Safety

    IEC 61010-1:2010 (3rd edition)
    IEC 61010-2-030:2010
    EMC: IEC 61326-1 Ed. 2.0 (2012)

    Physical

    Enclosure

    Aluminum with armored end caps

    Dimensions

    14.5” H x 19” W x 7.5” D
    (36.8 cm x 48.3 cm x 19.1 cm)
    without handle

    Weight

    37 lbs. (16.78 kg)
    including 3 modules

    Interface

    Ethernet

    Gigabit Ethernet (10/100/1000 Base-T), RJ-45 connector

    VGA

    For displaying data on an external monitor

    USB 3.0

    For external peripherals and file export
    4 ports per unit

    Expansion Port

    For connection of optional TMX-E

    System Power

    Input Voltage Range

    102 to 264 VAC or 24 VDC at 11A

    Frequency Range

    47 Hz to 63 Hz

    Power Consumption

    300W

    • Please feel free to contact for detailed specifications, accessories, and options.
