三相全自動測試系統

Three-phase Fully Automatic Test System with Reference Standard and Integrated C 型號：TS33

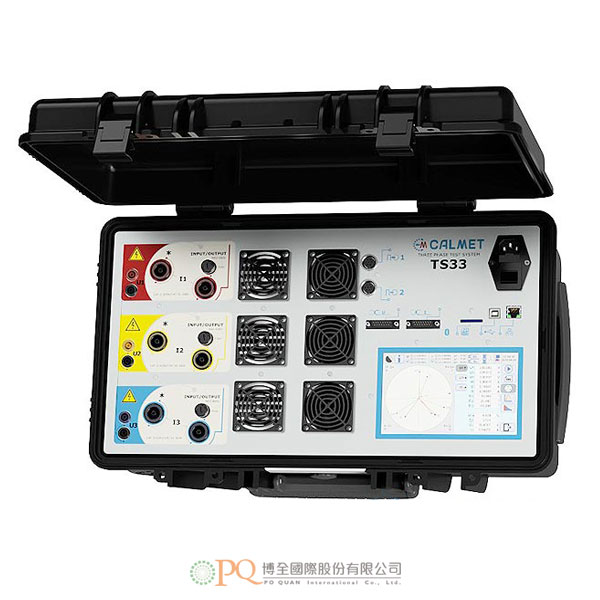

The Calmet TS33 portable test system consists of a three-phase reference meter of accuracy class 0.04% (or 0.1%) and an integrated three-phase current and voltage source up to 3x120A/600V

加入洽詢

產品特點產品規格

- Easy verification of meters under precise load conditions, using integrated current and voltage source
- Automatic operation with predefined load points without the need of an external PC
- Modern SD flash memory card up to 32GB for storage of customer data and measurement results
- Display of vector diagram, phase sequence, wave form oscilloscope, harmonics spectrum bar and trend charts for analysis of the mains conditions
- User-friendly system for data input and operation of combined source and reference meter
- The system may be used either as a stand-alone reference standard meter class 0.04 or 0.1, or together with the integrated power source, or as a stand-alone three-phase power calibrator class 0.1
- Data readout and test system control via USB, Ethernet and Bluetooth

Weight and dimensions (width x height x depth)	22kg and (550x345x200) mm
Power supply	85…265V / 47...63Hz / 400VA
Safety: Isolation protection and Measurement Category	IEC 61010-1 and 300V CAT III
Degree of protection	IP-30 (housing open) / IP-67 (housing closed)
Operation / storage temperature	-10…+50°C / -20…+60°C
Operation / storage relative humidity	<90% @ +0...+30°C and <75% @ +30...+50°C / <95% @ 0...+50°C
