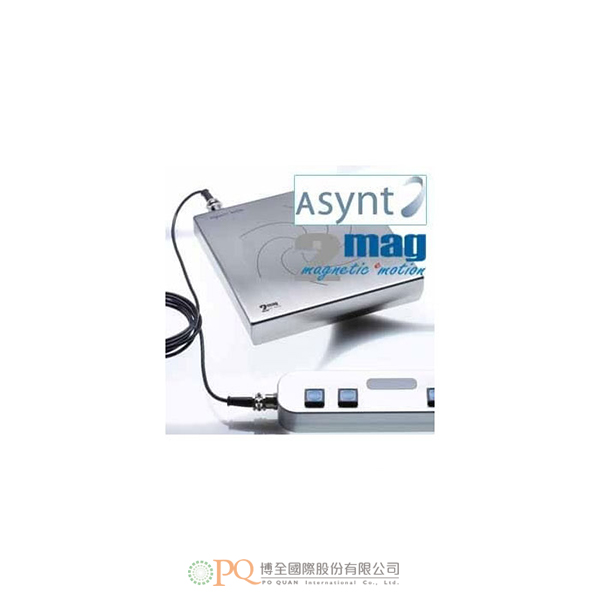

The 2mag atexMIXdrive 1

Fully encapsulated and hermetically sealed stainless steel housing, IP68, water-, dust- and germproof, extremely robust construction and performance, easy to clean and maximum resistance, submersible in water- resp. oil baths, suitable for the use in CO2-incubators and ovens, temperate range up to +40 °C, certified according to ATEX II 2G Ex mb IIC T4.

Stirring volume	1 – 10.000 ml
Stirring power (max.)	20 W
Material housing	Stainless steel
Operation temperature	-10 °C up to +40 °C in air, up to+40 °C in water
Operating voltage	48 VDC
Dimensions (WxDxH)	180 x 180 x 38 mm
Protection category	IP 68
Weight	3.5 kg
Ex-mark	ATEX II 2G Ex mb IIC T4
Certificate of conformity	EPS 14 ATEX 1 701 X
