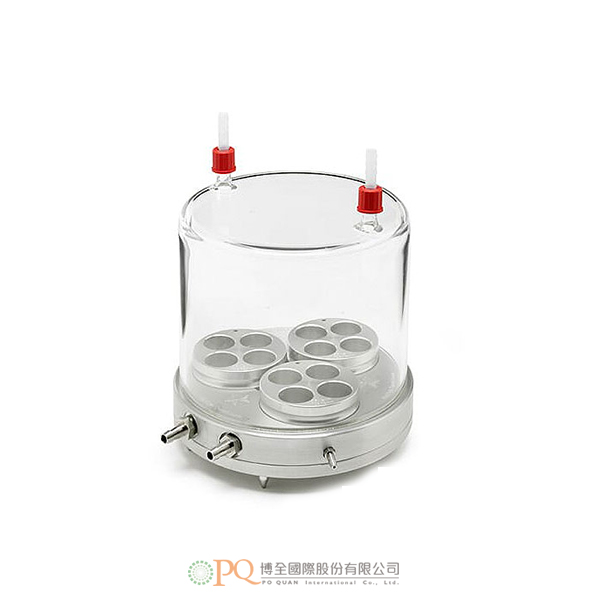

The DrySyn SnowStorm Reactor

用氮氣/氬氣吹掃圓頂可防止在低於環境溫度下在反應器周圍結冰。
從+150°C到-30°C的主動溫度控制允許在任何時間進行多達27個小瓶的無人看管操作。
DrySyn Snowstorm體積小，可在不佔用寶貴排氣罩空間的情况下增加輸送量和篩選。
圖片展示了配有Grant和Julabo冷卻器的DrySyn Snowstorm反應器。
英國製造。

• 最大限度。溶液溫度* -30°C
• 提供的套件：冷卻底座、玻璃罩、一包3個標準反應瓶插件，詳情如下。
• 該底座也適用於我們的 Multi/Multi-M/Multi-S系列插件，適用於5 mL 至500 mL的圓底燒瓶。
• 小瓶/試管反應規模：

標準尺寸，除27.40mm / 28.20mm選項外，每個為4個位置：

• 11.80mm（適合 2 mL HPLC 小瓶）
• 15.00mm（適合 1 dram小瓶）
• 16.20mm（適合 CEM 微波管）
• 17.40mm（適合 Biotage 2-5 mL 微波管）
• 20.20mm（適合機器管）
• 24.40mm（適合 Radleys 管）
• 25.75mm（適合Wheaton reactor小瓶）
• 27.40mm（適合 20 mL閃爍瓶）這個尺寸為三位式
• 28.20mm（適合大型 Biotage管）此尺寸為三位式
• 自定義：選擇任何直徑達28.20mm
• 材質：陽極氧化鋁
• 底座直徑：87mm

*通過Huber Ministat 240（無絕緣）實現。

Purging the dome with nitrogen / argon prevents the formation of ice around the reactors at sub-ambient temperatures.

Active temperature control from +150 oC to -30 oC  permits unattended operation of up to 27 vials at any one time.
With a small bench top footprint, the DrySyn Snowstorm allows increased throughput and screening without taking up valuable fume hood space.

Our gallery images show the DrySyn SnowStorm reactor with both Grant and Julabo chillers.

Made in the UK.

• Max. solution temperature* -30oC
• Kit supplied:  Cooling base, glass dome, one pack of 3 standard reaction vial inserts as detailed below.
• This base will also fit our Multi/Multi-M/Multi-S range of inserts for round bottom flasks from 5 mL to 500 mL.
• Vial / Tube Reaction scale:

Standard sizes, each 4 position except 27.40mm / 28.20mm options:

• 11.80mm (will fit 2 mL HPLC sample vials)
• 15.00mm (will fit 1 dram vials)
• 16.20mm (will fit CEM microwave tubes)
• 17.40mm (will fit Biotage 2-5 mL microwave tubes)
• 20.20mm (will fit robot tubes)
• 24.40mm (will fit Radleys tubes)
• 25.75mm (will fit Wheaton reactor vials)
• 27.40mm (will fit 20 mL Scintillation vials) this size is a 3 position
• 28.20mm (will fit large Biotage tubes) this size is 3 position
• Custom : Choose any diameter up to 28.20mm
• Material: anodised aluminium
• Base diameter: 87mm

*Attained with Huber Ministat 240 (without insulation).
