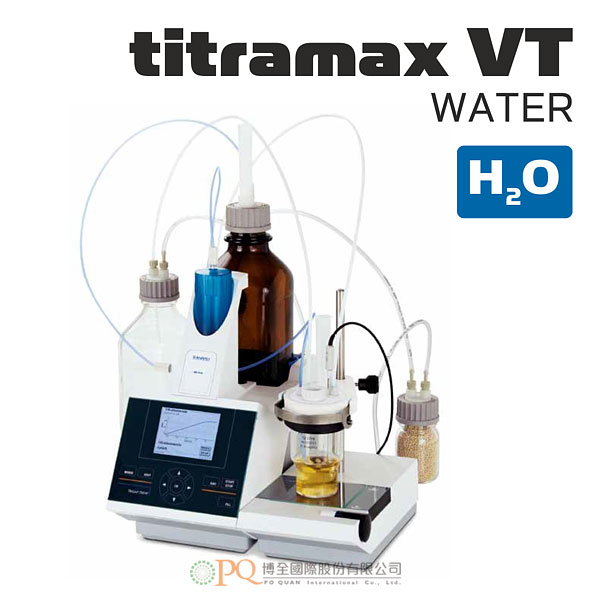

Titramax VT

Titramax VT 型號:WATER
  • Volumetric water determination in liquids

    With the Titramax VT WATER you can determine the water content of liquids very easily. The device is based on volumetric titration according to the Karl Fischer method. The titrator works fast and precise for a wide range of use.

    The device is conform to standards ASTM D 4377, ASTM D 6869, ASTM E 203, DIN 51777, IP 356, IP 471, ISO 10336, ISO 6296, Pharmacopoeia.

    The actual curve and the measurement drift during titration process appear in the display and you can see the titration solvent consumption. Standard methods for different applications are programmed.

    The measurement uses a potentiometric titration method in an anhydrous medium. The titration with titrant starts, once the  sample is dosed into the reagent. The user has to enter the sample weight into the menu. The titration speed is precisely adjusted to the reaction rate by control algorithms. The titration is performed automatically until the endpoint indication of measurement.

    At the end of the measurement, results are shown in ppm water or several other units.

    Applications

    The Titramax VT WATER is suitable for analysis of water in alcoholic and similar liquids:

    • methanol
    • isopropyl alcohol
    • glycol
    • other organic liquids

    Advantages

    • Complete measuring system for the water determination
    • Fully-automatic volumetric titration
    • Precise adjustment of the titration parameters by control algorithms
    • Preset measurement method allows an immediate start
    • The result output can be adjusted to your needs by using a formula generator
  • Measurement method: Volumetric titration
    Types of result: ppm or mg/l or using the formula generator
    Measuring range: 10 ppm ... 100 %
    Resolution of the display: 0.01 ppm
    Power supply: External plug-in power supply: 100 - 240 V, 50/60 Hz
    Power input: 30 VA
    Stirrer connection: 12 V DC out, 500 mA
    Dimensions: 30 x 45 x 30 cm (W x H x D), height with exchange unit
    Weight: Approx. 3.5 kg (with exchange unit and empty reagent bottle)
