高速資料蒐集器

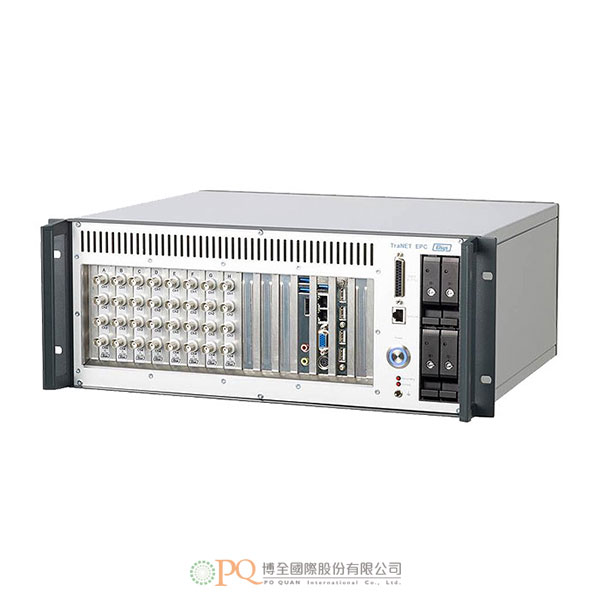

High Speed Data Acquisition System 型號:TraNET EPC
  • 19吋機櫃
  • 內置Windows 10 64 Bit作業系統
  • 4bay硬碟抽取盒(SSD HD)
  • PCIe擴充槽
  • CPU Intel i5或高於,8 GB RAM
  • USB 3.0、顯示埠、VGA、2xGBit、Audio
  • 特點

    • 19吋機櫃
    • 內置Windows 10 64 Bit作業系統
    • 4bay硬碟抽取盒(SSD HD)
    • PCIe擴充槽
    • CPU Intel i5或高於,8 GB RAM
    • USB 3.0、顯示埠、VGA、2xGBit、Audio
    • 可客製化規格
    • 可達64通道單端點或32通道差動輸入
    • 240 MS/s 高速取樣率/通道
    • 14-bit 和 16-bit垂直解析度
    • 每個通道128 MS 數據儲存能力
    • 滿刻度量程精度0.03%
    • 可在任一通道進行觸發
    • 用於監測狀態訊號的數位輸入

    資料蒐集模組

    Elsys提供了幾種高精度和高速資料蒐集模組,每個通道的最大取樣率從2 MS / s ~240 MS / s。示波器模式、多段或連續記錄等幾種不同的測量模式使Elsys資料蒐集模組適用於許多不同應用領域中的測量任務。

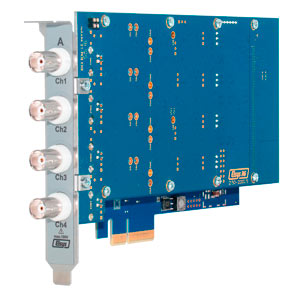

    TPCE High-End DAQ Card TPCE-LE Low-Cost DAQ Card TPCE-I Isolated DAQ Card
    • 取樣率從2 MS / s到240 MS / s
    • 14或16 bit解析
    • 共模抑制比> 72 dB
    • PCIe x4介面, 硬碟檔案串流功能可進行長時間監控
    • 可選ICP / IEPE電源
    • 取樣率從2 MS / s到240 MS / s
    • 14 bit解析
    • PCIe x1 介面
    • 可選ICP / IEPE電源
    • 每通道最大取樣率從1 MS / s
    • 16 bit解析-具有電氣隔離能力
    • PCIe x1 介面
    • 可選ICP / IEPE電源

    軟體

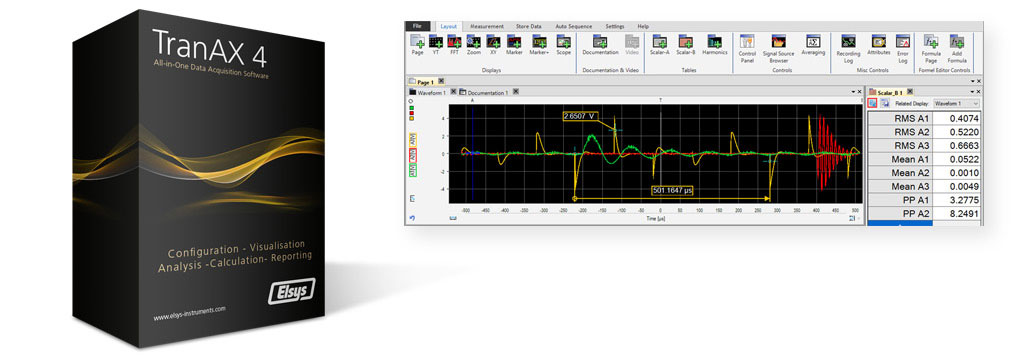

    強大的數據採集軟體TranAX從測量硬體中發揮出最佳性能。簡便的輸入窗格和觸發設置通道配置,即使具有較大的數據量,也可以快速顯示測量曲線,使用方程式編輯器進行數據後處理或生成報告, 這些只是TranAX的一些最重要的功能。

    API:提供了幾種不同編程語言的API,例如C ++,C#或Python。

    LabVIEW:在LabVIEW儀器驅動程序的幫助下,將Elsys DAQ集成到LabVIEW非常容易。

    HDF 5: TranAX中的所有測量曲線圖形均以HDF5文件格式存儲,可很容易導入其它文件。

  • ★ 詳細規格請洽詢,我們將有專業人員為您服務!

    General Specification

    • 19 inch, 4 HE Industrial Rack (6 HE for 64 channel)
    • Up to 64 channel Single Ended (TPCE, TPCE-LE or TPCE-I PCIe boards
    • Intel i5 CPU or better
    • 250 GB SSD System drive
    • 1 TB SSD Data drive (RAID 0)
    • 4 bay HD exchange drive (1 free slot)
    • Windows 10, 64 Bit Professional
    • USB-3, DP, GBIT, VGA, Audio
    • Rear or front connectors
    • Power Supply: 100 V - 250 V, 50/60 Hz
    • Operating Temperature: 0 .. 45 °C
    • Storage Temperature: -20 .. 60 °C
    • Rel. Humidity: Up to 31°C: < 80%
    • 31°C ..45°C: decreasing to < 50%
    • Max. Operating Elevation: 2’000m
    • Recording Modes: Scope, Multi-Block, Continuous, ECR
    • Dual sample rate recording (with ECR only)
    • Digital inputs (Markers)

    (synchronized with analog signals)

    • IVI-Driver with sample programs for C++/C#, VB and LabVIEW
    • LabVIEW Instrument Driver
    • C++/C#, Python API

  • The Elsys Data Acquisition Instrument TraNET EPC with its high channel density and robust housing is designed for high precision measurements in industrial environments. It is a scalable system that may grow to a total number of 64 SE channels in one device. For this data acquisition cards TPCE, TPCE-LE or TPCE-I can be used and combined. Several TraNET devices can be synchronized with the Elsys SyncLink box.

    Key-Capabilities

    • 19'' Rack Case
    • Windows 10 64 Bit pre installed
    • SSD HD in a 4-bay docking backplane
    • PCIe Backplane
    • Intel i5 or better CPU, 8 GB RAM
    • USB3, Display-Port, VGA,2xGBit, Audio
    • Costumer specific changes possible
    • Up to 64 channels single ended, or 32 channels differential
    • Sampling rate up to 240 MS/s per channel
    • 14-bit and 16-bit vertical resolution
    • Up to 128 MS onboard memory per channel
    • High precision typ 0.03% of the full input range
    • Triggering on all channels possible
    • Digital input for monitoring of state signals

    Data Acquisition Cards
    Elsys provides several high-precision and fast data acquisition cards with maximum sampling rates from 2 to 240 MS/s per channel. Several different measurement modes like Scope, Multi-Block or continuous recording makes the Elsys data acquisition card suitable for almost any measurement task in many different applications field.

    TPCE High-End DAQ Card TPCE-LE Low-Cost DAQ Card TPCE-I Isolated DAQ Card
    Sampling rates from 2 to 240 MS/s
    14 or 16 bit resolution
    high CMRR of > 72 dB
    PCIe x4 interface for fast streaming to disc
    optional ICP/IEPE power supply
    Sampling rates from 2 to 240 MS/s
    14 bit resolution
    PCIe x1 interface
    optional ICP/IEPE power supply
    Maximum sampling rate 1 MS/s per channel
    16 bit resolution
    galvanic isolation of each channel
    PCIe x1 interface
    4 or 8 channel variants
    optional ICP/IEPE power supply

    Software

    The powerful data acquisition software TranAX brings out the best from the measurement hardware. Easy channel configuration of input range and trigger settings, fast visualization of the measurement curves even with large data sets, data post processing with the formula editor or report generation, these are only a few of the most important features of TranAX.

    API:Several API's in different programming languages are available like C++, C# or Python.

    LabVIEW:Integration of the Elsys DAQ into LabVIEW is quite easy with the help of the LabVIEW Instrument Driver.

    HDF 5: All measurement curves in TranAX are stored in the HDF5 file format which makes data imports to other 3th. part software easy.

  • ★ 詳細規格請洽詢,我們將有專業人員為您服務!

    General Specification

    • 19 inch, 4 HE Industrial Rack (6 HE for 64 channel)
    • Up to 64 channel Single Ended (TPCE, TPCE-LE or TPCE-I PCIe boards
    • Intel i5 CPU or better
    • 250 GB SSD System drive
    • 1 TB SSD Data drive (RAID 0)
    • 4 bay HD exchange drive (1 free slot)
    • Windows 10, 64 Bit Professional
    • USB-3, DP, GBIT, VGA, Audio
    • Rear or front connectors
    • Power Supply: 100 V - 250 V, 50/60 Hz
    • Operating Temperature: 0 .. 45 °C
    • Storage Temperature: -20 .. 60 °C
    • Rel. Humidity: Up to 31°C: < 80%
    • 31°C ..45°C: decreasing to < 50%
    • Max. Operating Elevation: 2’000m
    • Recording Modes: Scope, Multi-Block, Continuous, ECR
    • Dual sample rate recording (with ECR only)
    • Digital inputs (Markers)

    (synchronized with analog signals)

    • IVI-Driver with sample programs for C++/C#, VB and LabVIEW
    • LabVIEW Instrument Driver
    • C++/C#, Python API
