Elsys > 多通道資料蒐集器

多通道資料蒐集器

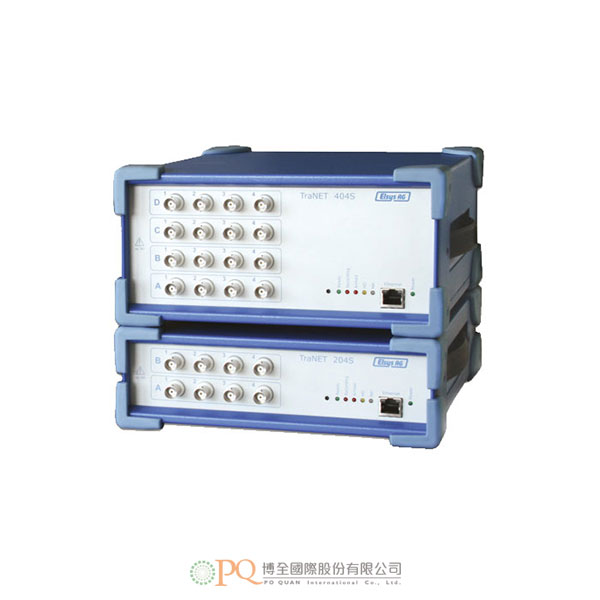

Data Acquisition Instrument - TraNET FE 型號：TraNET FE

產品特點產品規格 Features Specifications

資料蒐集
- 240 MS/s 高速取樣率
- 16-bit 解析度
- 每個通道128 MS 數據儲存能力
- 精度0.03% ( FSR )
- 強大的觸發功能應用於所有通道
- 模擬信號輸入同步
儀器硬體
- 可遠端獨立運行完成既有設定的資料蒐集任務，以節省人力成本
- 記錄16通道SE(單端)，8通道差動輸
- 多設備同步（SyncLink，GPS，IRIG，通過 TCP/IP 協議遠端控制以進行設置，記具有ZeroConf的1 GigE連接可輕鬆實現網路架構
- 符合LXI class C標準
- 硬碟檔案串流功能可進行長時間監控
- 內建200 GB固態硬碟（SSD）
- 堅固的鋁製外殼具有四種不同尺寸供選擇
- 架構於網頁伺服器有利於數據管理、更新和設定
軟體

TraNET FE 資料蒐集器可與幾種不同的程序控制軟體一起使用

TranAX TranAX LE API
LabVIEW

IVI-Driver

★ 詳細規格請洽詢，我們將有專業人員為您服務！

Model Base Unit	Model Extension	# of Channels	Max. Sample Rate per Channel	ADC Resolution		Memory [MS/ch]
				Standard	Optional	Standard	Optional
TraNET 204	-1x4S/ff/bb	4 SE, 2 Diff	10 MS/s, 20 MS/s, 40 MS/s, 80 MS/s, 120 MS/s, 240 MS/s	14 Bit	16 Bit	32 MS	128 MS
	-1x4D/ff/bb	4 Diff
	-2x4S/ff/bb	8 SE, 4 Diff
TraNET 404	-2x4D/ff/bb	8 Diff
	-3x4S/ff/bb	12 SE, 6 Diff
	-4x4S/ff/bb	16 SE, 8 Diff
TraNET 19'' Rack	The 19'' Rack version is available for all different card configurations and number of channels up to 32 SE and 16 Diff.
TraNET 404 Plug-In	3U, 42HP (Half rack plug-In module) Can be used in combination with additional devise and signal conditioners in one 3U subrack Up to 16 channels single ended Two TraNET Plug-in units fit into a 3U subrack

Data Acquisition
- Up to 240 MS/s sample rate
- Up to 16-bit resolution
- Up to 128 MS acquisition memory per channel
- High-precision typ. 0.03% of FSR
- Flexible parallel triggering mode using all channels and advanced trigger for debugging
- Digital inputs (Markers) for monitoring synchronized with analog signal
Instrument
- Stand alone operation for remote unattended capture of elusive signals
- Up to 16-channels SE, 8-channels differential
- Multi-Device Synchronization (SyncLink, GPS, IRIG, IEEE1588)
- Remote control over TCP/IP protocol for setup, recording, and data retrieval
- GBit Ethernet connection with ZeroConf for easy network integration
- LXI class C compatible
- Harddisk streaming for longtime monitoring
- Internal 200 GB Solid State Drive (SSD)
- Robust aluminum case in four different sizes
- Integrated webserver for status updates and configuration
Software

TraNET FE data acquisition devices can be used with several different software solution

TranAX TranAX LE API
LabVIEW

IVI-Driver

★ 詳細規格請洽詢，我們將有專業人員為您服務！

TraNET FE Order Information

Model Base Unit	Model Extension	# of Channels	Max. Sample Rate per Channel	ADC Resolution		Memory [MS/ch]
				Standard	Optional	Standard	Optional
TraNET 204	-1x4S/ff/bb	4 SE, 2 Diff	10 MS/s, 20 MS/s, 40 MS/s, 80 MS/s, 120 MS/s, 240 MS/s	14 Bit	16 Bit	32 MS	128 MS
	-1x4D/ff/bb	4 Diff
	-2x4S/ff/bb	8 SE, 4 Diff
TraNET 404	-2x4D/ff/bb	8 Diff
	-3x4S/ff/bb	12 SE, 6 Diff
	-4x4S/ff/bb	16 SE, 8 Diff
TraNET 19'' Rack	The 19'' Rack version is available for all different card configurations and number of channels up to 32 SE and 16 Diff.
TraNET 404 Plug-In	3U, 42HP (Half rack plug-In module) Can be used in combination with additional devise and signal conditioners in one 3U subrack Up to 16 channels single ended Two TraNET Plug-in units fit into a 3U subrack
