手持式恒電位電流儀

產品特點

• 掃描範圍：±30mA/±10V
• 採用接地式 CE 配置，可於單一模組內支援多個通道
• 尺寸：11.5 x 5.9 x 1.4 cm
• 重量：125 g

產品說明
手持式

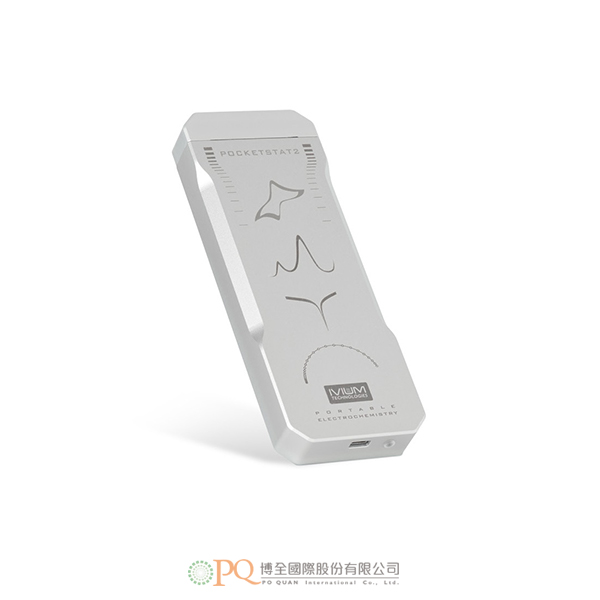

pocketSTAT.DC 是一款可攜式恒電位／恒電流／零阻電流計（ZRA），可執行所有標準直流電化學技術。其體積比標準智慧型手機更小、重量更輕，並可透過 USB 連接，由任何運行 Windows 作業系統的筆記型電腦或個人電腦進行控制。

pocketSTAT.DC 採用接地式 CE 配置，這使得以下功能得以實現：

• 可單一裝置執行多通道（如 : 雙恒電位、WE-陣列、Devanathan等）
• 多個被測物或樣本共享CE 和 RE
• 可與另一台恒電位結合，構成雙電位儀

主要規格

• 尺寸：11.5 x 5.9 x 1.4 cm
• 重量：125 g
• 掃描範圍：±10V/±30mA
• 3極接線：WE/CE/RE
• 最大取樣率：1,000 pnts/s

堅固耐用的設計

• pocketSTAT.DC 的機身採用堅固且輕量的鋁合金製成。

硬體

• 自動電流量程選擇：10nA 至 10mA/10V
• 即時資料擷取速率最高可達 1,000 數據點/秒
• 適用掃描速率：1µV/s 至 10,000V/s
• 最小間隔時間：1ms

軟體
pocketSTAT.DC 透過 Ivium 自家的 IviumSoft 進行控制。這款功能多元且直覺易用的軟體套件，可執行儀器控制、資料管理與分析等功能。IviumSoft 亦能與 LabVIEW™、C++、Delphi 等軟體介接，並可由這些軟體進行控制。每台儀器均標配一套完整的 IviumSoft 軟體套件。

System performance

• Current compliance : ±30mA
• Maximum compliance voltage : ±10V
• Maximum applied voltage : ±10V
• Electrode connections : 3; WE, CE, RE (and Analog In) with 4mm bananas
• Potentiostat bandwidth : >1kHz
• Signal acquisition : Dual channel 24bit ADC, 1,000 samples/s

Potentiostat

• Applied potential range : ±10V, with 0.33mV res.
• Applied potential accuracy : 0.2%, or 2mV
• Current ranges : ±10nA to ±10mA
• Measured current resolution : 0.0005% of current range, minimum 0.5fA
• Measured current accuracy : 20pA + 0.025% of FSR

Galvanostat

• Applied current resolution : 0.012% of applied current range
• Applied current accuracy : 0.2%
• Galvanostatic current ranges : ±10nA to ±10mA
• Potential ranges : ±10V
• Measured potential resolution : 1µV
• Measured potential accuracy : 0.2% or 2mV

Electrometer

• Input impedance : >1000Gohm //<10pF
• Input bias current : <20pA
• Bandwidth : >100kHz

Peripheral connections

• Analog in/out : ±10V input only, 1000GOhm, 24bit resolution

Environment

• Power requirements : Via USB
• Interfacing : USB
• Size (w x d x h) : 11.5 x 5.9 x 1.4cm
• Weight : 125g
• PC requirements : Windows 8/10/11, with free USB port

Specifications subject to change, Ivium Technologies ©2026

Product Features

• Scan range: ±30mA/±10V
•  Grounded CE configuration allowing multiple channels in one cell
•  Size: 11.5 x 5.9 x 1.4cm
•  Weight: 125g

Product description
Handheld
The pocketSTAT.DC is a portable potentiostat/galvanostat/ZRA which is capable of all standard DC electrochemical techniques. It is smaller and more-lightweight than a standard smart phone and is controlled via a USB connection from any netbook, laptop or PC that is Windows operated.

The pocketSTAT.DC has a grounded CE configuration which allows:

• multiple channels in 1 cell (bipotentiostat, WE-arrays, Devanathan, etc.)
• sharing CE and RE for multiple cells or samples
• combination with an other potentiostat to form a bipotentiostat

Key specifications

• Size: 11.5 x 5.9 x 1.4cm
• Weight: 125g
• Scan range: ±10V/±30mA
• 3 Electrode connection: WE/CE/RE
• Max. acquisition rate: 1,000 pnts/s

Rugged design

• The pocketSTAT.DC has a housing made of strong, yet lightweight aluminium.

Hardware

• Automatic current range selection: 10nA to 10mA/10V
• Real time data up to 1,000 pnts/s
• Applicable scanrates: 1µV/s to 10,000V/s
• Minimum interval time: 1ms

Software
The pocketSTAT.DC is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software package allows instrument control, data management and analysis, etc. IviumSoft can also interface with and be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of IviumSoft is included with each instrument as standard.

System performance

• Current compliance : ±30mA
• Maximum compliance voltage : ±10V
• Maximum applied voltage : ±10V
• Electrode connections : 3; WE, CE, RE (and Analog In) with 4mm bananas
• Potentiostat bandwidth : >1kHz
• Signal acquisition : Dual channel 24bit ADC, 1,000 samples/s

Potentiostat

• Applied potential range : ±10V, with 0.33mV res.
• Applied potential accuracy : 0.2%, or 2mV
• Current ranges : ±10nA to ±10mA
• Measured current resolution : 0.0005% of current range, minimum 0.5fA
• Measured current accuracy : 20pA + 0.025% of FSR

Galvanostat

• Applied current resolution : 0.012% of applied current range
• Applied current accuracy : 0.2%
• Galvanostatic current ranges : ±10nA to ±10mA
• Potential ranges : ±10V
• Measured potential resolution : 1µV
• Measured potential accuracy : 0.2% or 2mV

Electrometer

• Input impedance : >1000Gohm //<10pF
• Input bias current : <20pA
• Bandwidth : >100kHz

Peripheral connections

• Analog in/out : ±10V input only, 1000GOhm, 24bit resolution

Environment

• Power requirements : Via USB
• Interfacing : USB
• Size (w x d x h) : 11.5 x 5.9 x 1.4cm
• Weight : 125g
• PC requirements : Windows 8/10/11, with free USB port

Specifications subject to change, Ivium Technologies ©2026
