SIKA

•

  Flow switches for insertion installation / Plastic version with PVC sheathed cab

  Type VKX05

  <ul><li>Insertion installation in pipelines DN 50…150</li><li>sealed by built-in O-ring</li></ul>

  加入諮詢

  加入諮詢
•

  Temperature sensors / Industry version with IO-Link

  Type IO3

  • Multi-talent → Communication via IO-Link, integrated analogue and switching output

  • Miniature design → Mounting even in limited space conditions
  • Efficient control due to very short response times
  • Connection with M12 connector/unshielded cable → significant cost and time savings
  • Remote access to sensor parameters → Easy configuration and setup
  • IO-Link transmits data purely digital → Exact, no conversion failures, interference proof
  • Easy to integrate into any fieldbus → Independent of control and fieldbus

  • Diagnostics down to field device level → Ensuring high plant availability

  加入諮詢

  加入諮詢
•

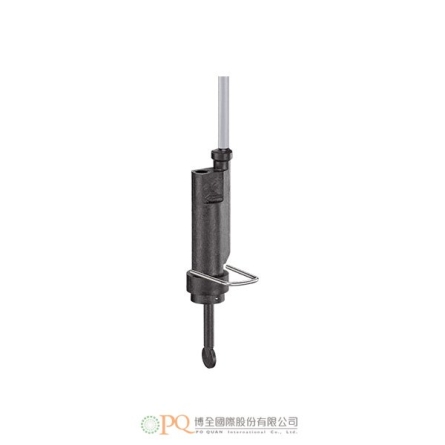

  Flow switches for insertion installation / Plastic version with PVC sheathed cab

  Type VKX15

  • Cost-optimized design
  • easy installation by means of push-in mounting in blocks or fittings

  加入諮詢

  加入諮詢
•

  Temperature sensors / HVAC version with with connector

  Type WGF

  • Air temperature measurement in ventilation and air-conditioning systems
  • Low heat dissipation due to process connection made of glass fibre reinforced plastic. Significantly lower measuring error
  • Safe and compact electrical connection thanks to M12 plug

  • High protection class against moisture, dust and dirt ingress
  • Short response time. Perfect for controlling rapidly changing process parameters
  • Very high vibration resistance. Reliable and long-lasting operation
  • Also available with digital 1-wire bus interface. Low wiring ffort

  加入諮詢

  加入諮詢
•

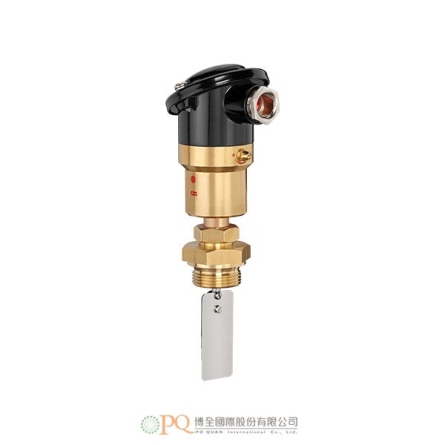

  Flow switches for insertion installation / Metal version for marine applications

  Type VH500

  • DNV GL type approval
  • Suitable for water, oil, etc.
  • Adjustment to nominal diameter and setpoint setting by selecting the baffle flag
  • Insertion installation in pipelines or tees DN 25...DN 50
  • High switching currents due to micro switch as signal transmitter
  • Vibration resistance up to 4 g

  加入諮詢

  加入諮詢
•

  MultiSensor for temperature and humidity / HVAC version with with connector

  Type WHS

  • The sensor is designed to measure temperature and humidity in air supply channels and air conditioning systems
  • Low heat dissipation through process connection made of glass fibre reinforced plastic > clearly smaller measuring error
  • Digital 1-wire bus interface with integrated protection circuit > Lower wiring cost

  加入諮詢

  加入諮詢
•

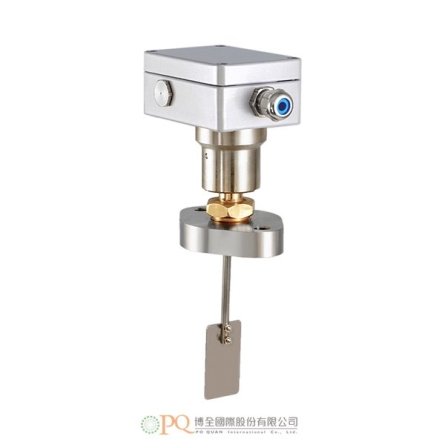

  Flow switches for insertion installation / Metal version for electrical engineer

  Type VH501

  • Complies with the following technical regulations of railway application: DIN EN 60077-1:2003, DIN EN 50125-1:2014, DIN EN 50216-5:2007, DIN EN 45545-2:2016
  • For oil flow monitoring
  • For pipelines DN 65...DN100 (DN 25...DN 50 upon request)
  • High switching currents, micro switch as signal transmitter
  • Optional: Cable gland selectable on three sides, version with flange or thread

  加入諮詢

  加入諮詢
•

  Temperature sensor / Industry version with connector

  Type W08

  • Safe and compact electrical connection thanks to M12 angle plug
  • High protection class against moisture, dust and dirt ingress
  • Very high vibration resistance. Reliable and long-lasting operation
  • Customised variant possible. Easy integration into plants / systems

  加入諮詢

  加入諮詢
•

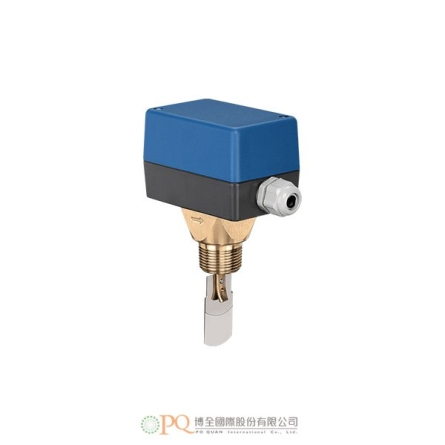

  Flow switches for insertion installation / Metal version for industrial applicat

  Type VH780

  • Universal flow switch for DN 32...200
  • Adjustment to nominal diameter and setpoint setting by selection of the baffle flag
  • High switching currents due to micro switch as signal transmitter

  加入諮詢

  加入諮詢
•

  Temperature sensors / Industry version with connector

  Type WJK

  • Specifically developed for measuring gearbox bearing temperatures
  • Spring-loaded immersion tube provides very good thermal coupling. Accurate recording of process parameters

  • Sealing between immersion tube and screw connection > suitable for use in oil-immersed casings
  • Safe and compact electrical connection thanks to M12 angle plug
  • Very high vibration resistance. Reliable and long-lasting operation

  加入諮詢

  加入諮詢
